Fuel Pump Module (AWD Mini-Van): Installation

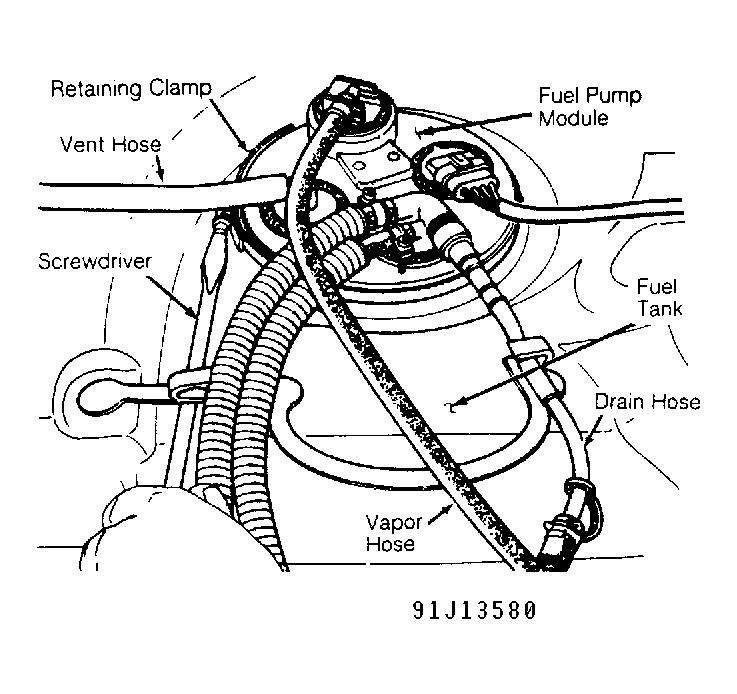

Wipe seal area of tank clean, and place new seal in position on pump. Position fuel pump module so arrow on edge of module is between 2 lines on fuel tank. Compress fuel pump module, and install retaining clamp. Tighten clamp to 40 INCH lbs. (4.5 N.m). Install fuel tank. See FUEL TANK.
