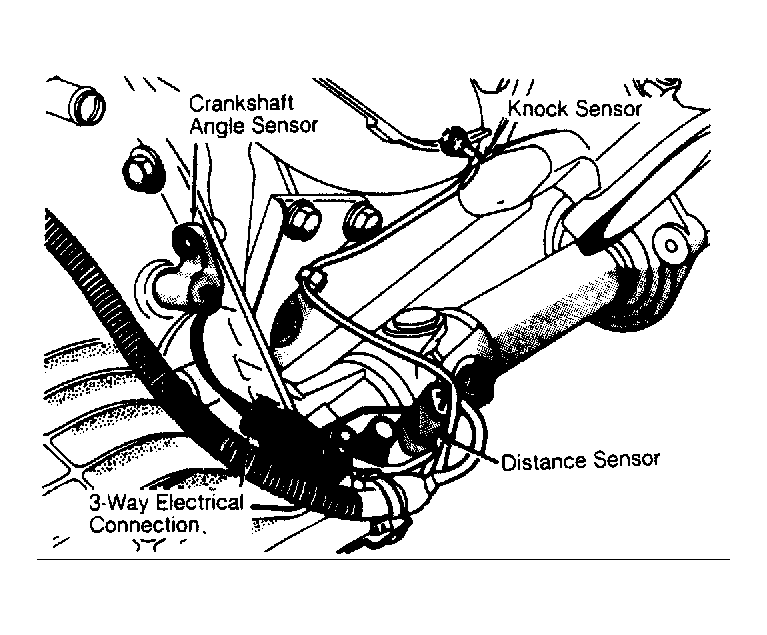

Crankshaft Angle Sensor (3.3L): Installation
Install sensor in transaxle, and push sensor down until it contacts drive plate. Hold in this position, and install retaining bolt. While holding sensor down, tighten bolt to 105 INCH lbs. (12 N.m). Connect sensor lead wire to wiring harness connector.
