Component Locations

COMPONENT LOCATIONS

Component Location
Fusible Links In engine compartment fuse/relay box. See Fig 1 .
Passenger Compartment Fuse Block Under lower left side of instrument panle. See Fig 2 .
Power Window Relay (U.S.) In underhood fuse/relay box behind battery. See Fig 4 .
Power Window Relay (Canada) In driver's footwell, behind kick panel. See Fig 4 .

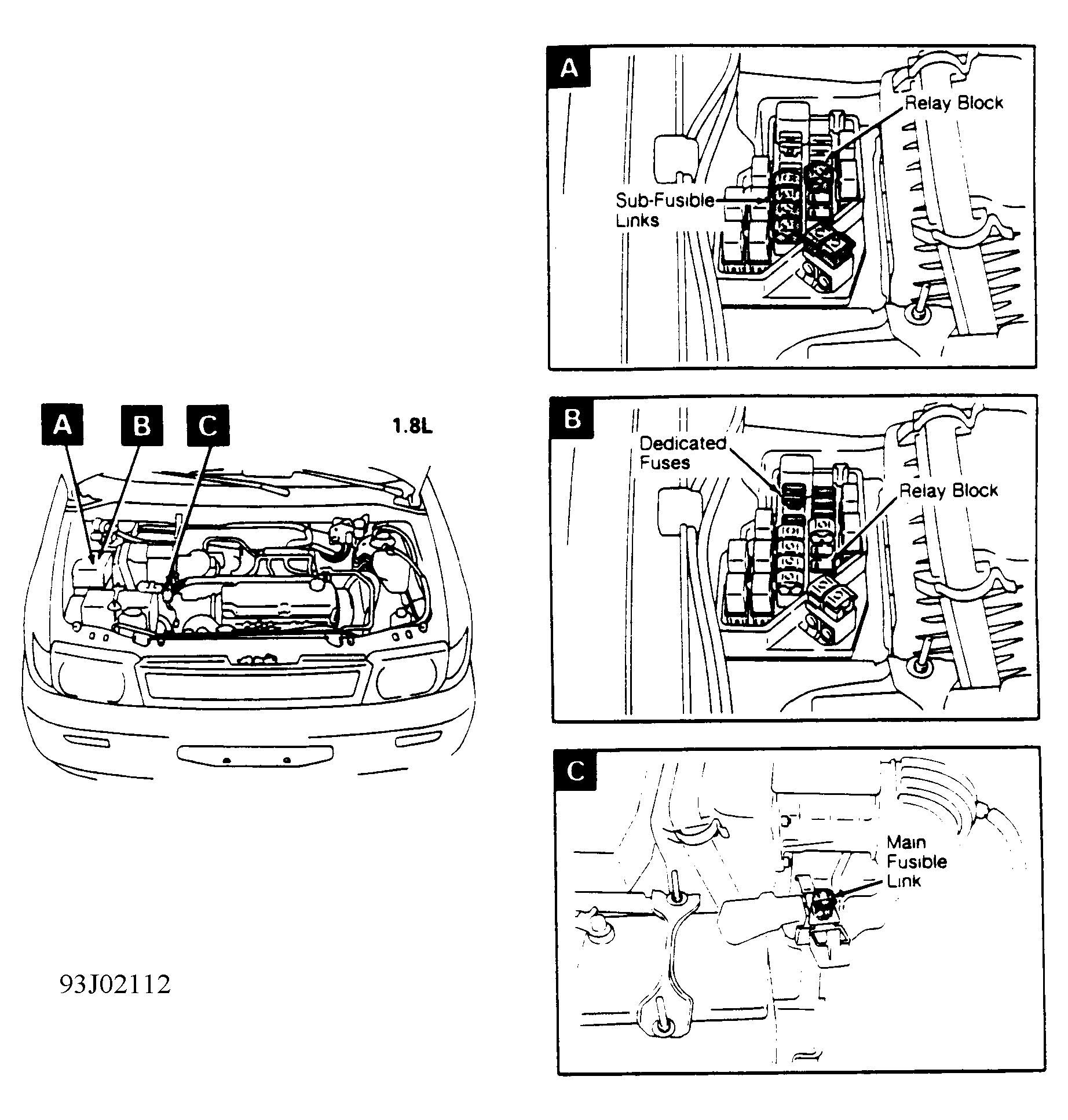

Fig 1: Locating Engine Compartment Fusible Links
G93J02112

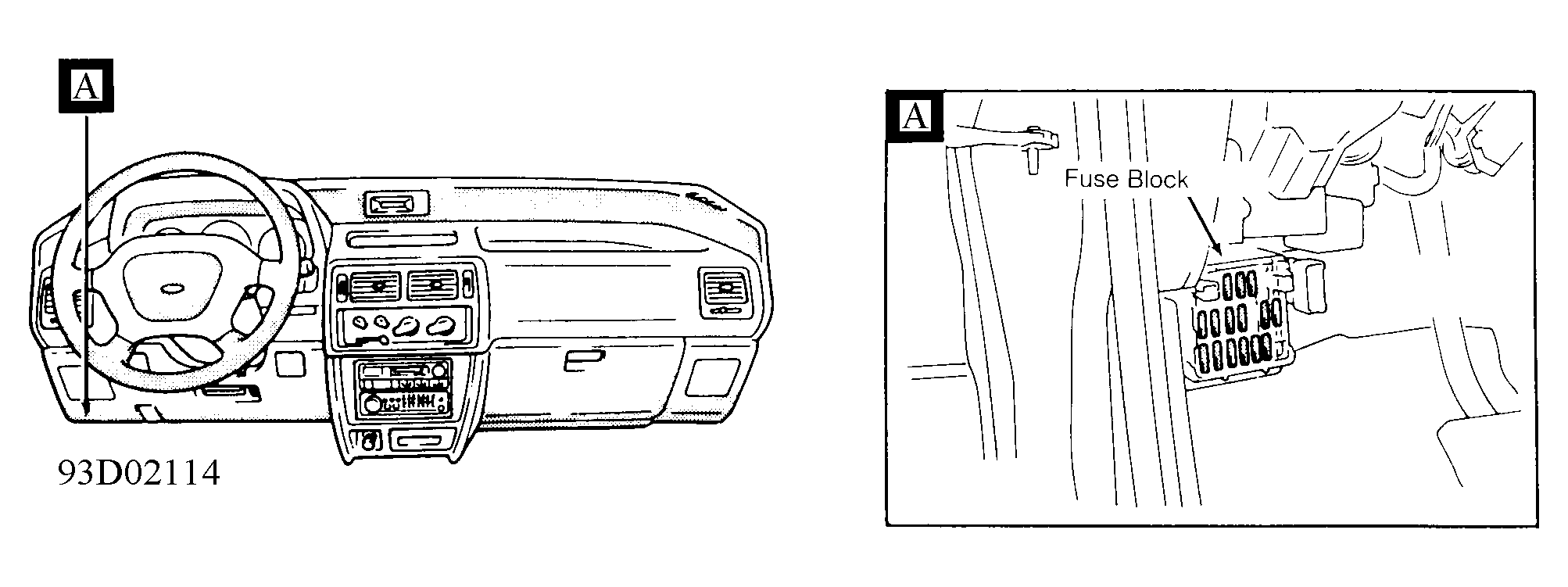

Fig 2: Locating Passenger Compartment Fuse Block
G93D02114

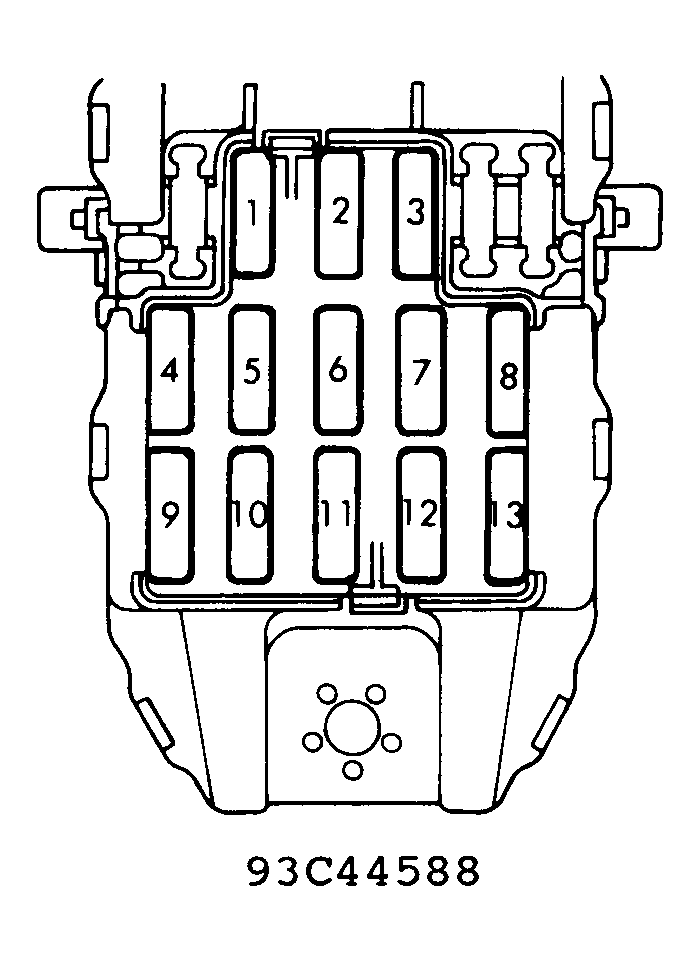

Fig 3: Identifying Passenger Compartment Fuse Block Components
G93C44588Courtesy of CHRYSLER CORP.

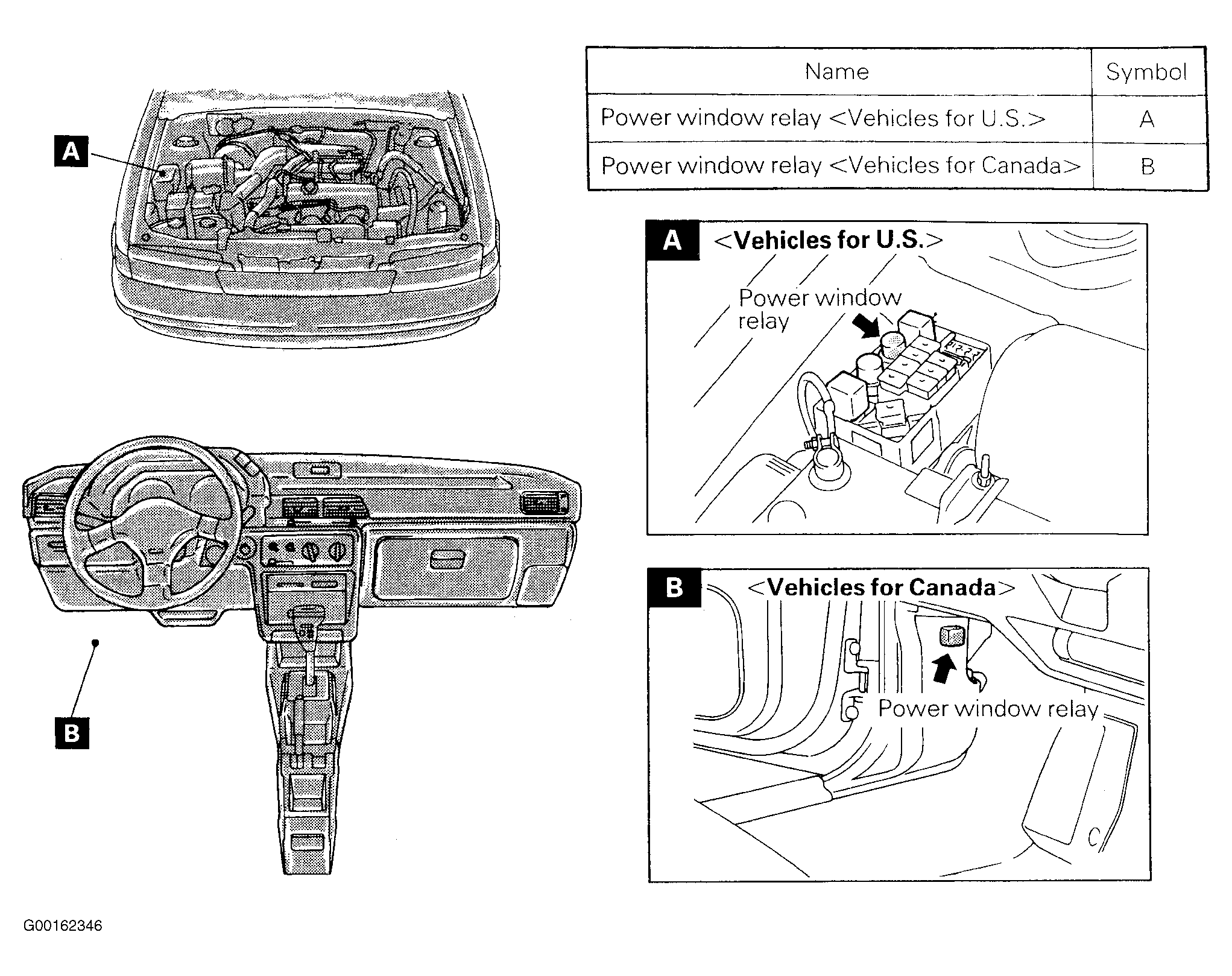

Fig 4: Locating Power Window Relay
G00162346Courtesy of CHRYSLER CORP.
