Dr-10: Testing Speed Sensor Circuit

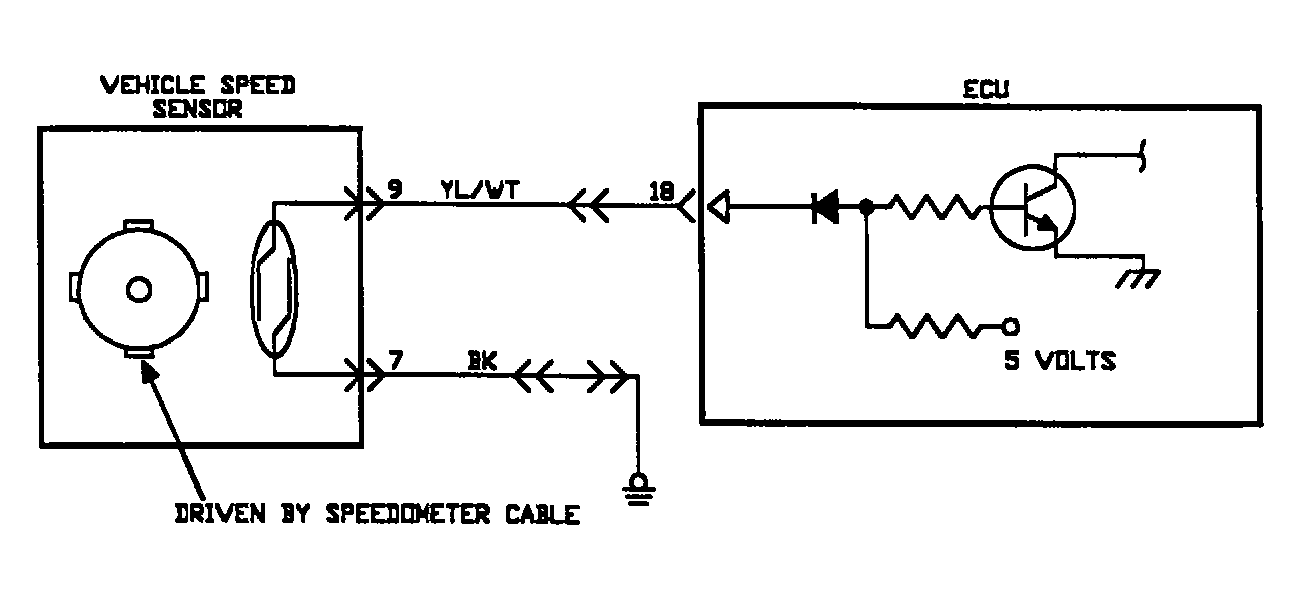

Fig 1: DR-10 Test Schematic Testing Speed Sensor Circuit

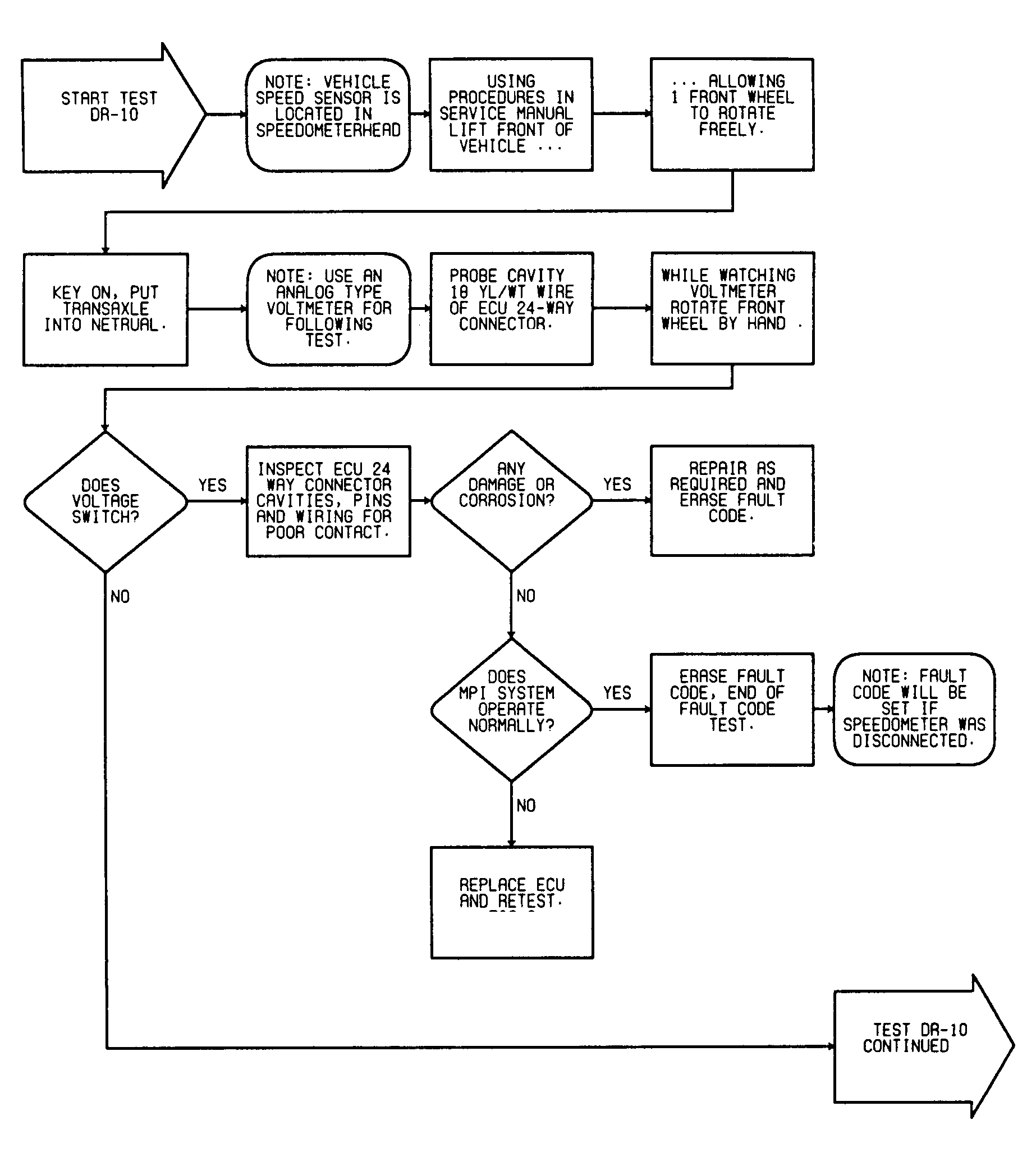

Fig 2: DR-10 Test Flow Chart (1 Of 2) Testing Speed Sensor Circuit

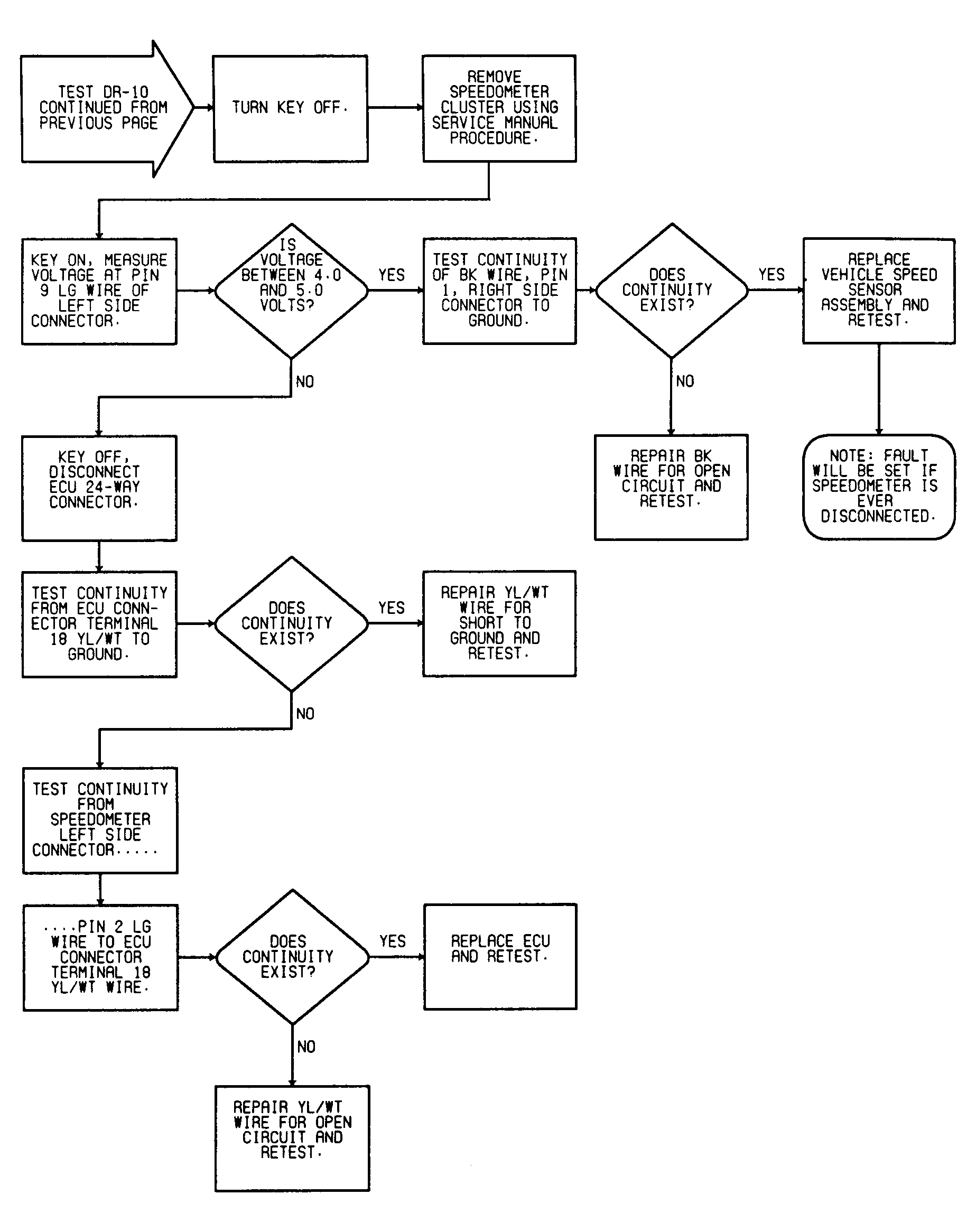

Fig 3: DR-10 Test Flow Chart (2 Of 2) Testing Speed Sensor Circuit
