Dr-11: Testing Barometric Pressure Sensor
Fig 1: DR-11 Test Schematic Testing Barometric Pressure Sensor

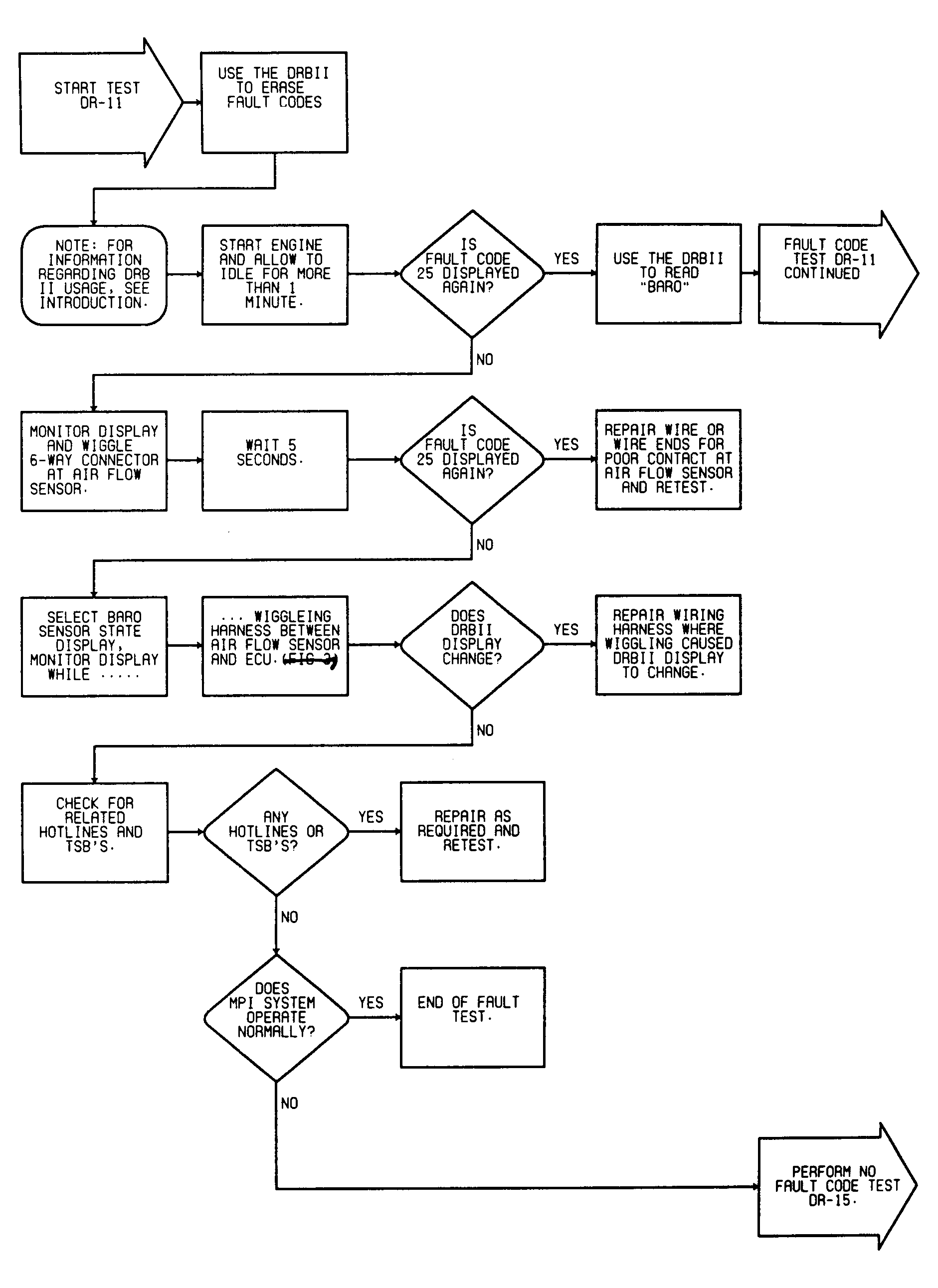

Fig 2: DR-11 Test Flow Chart (1 Of 2) Testing Barometric Pressure Sensor

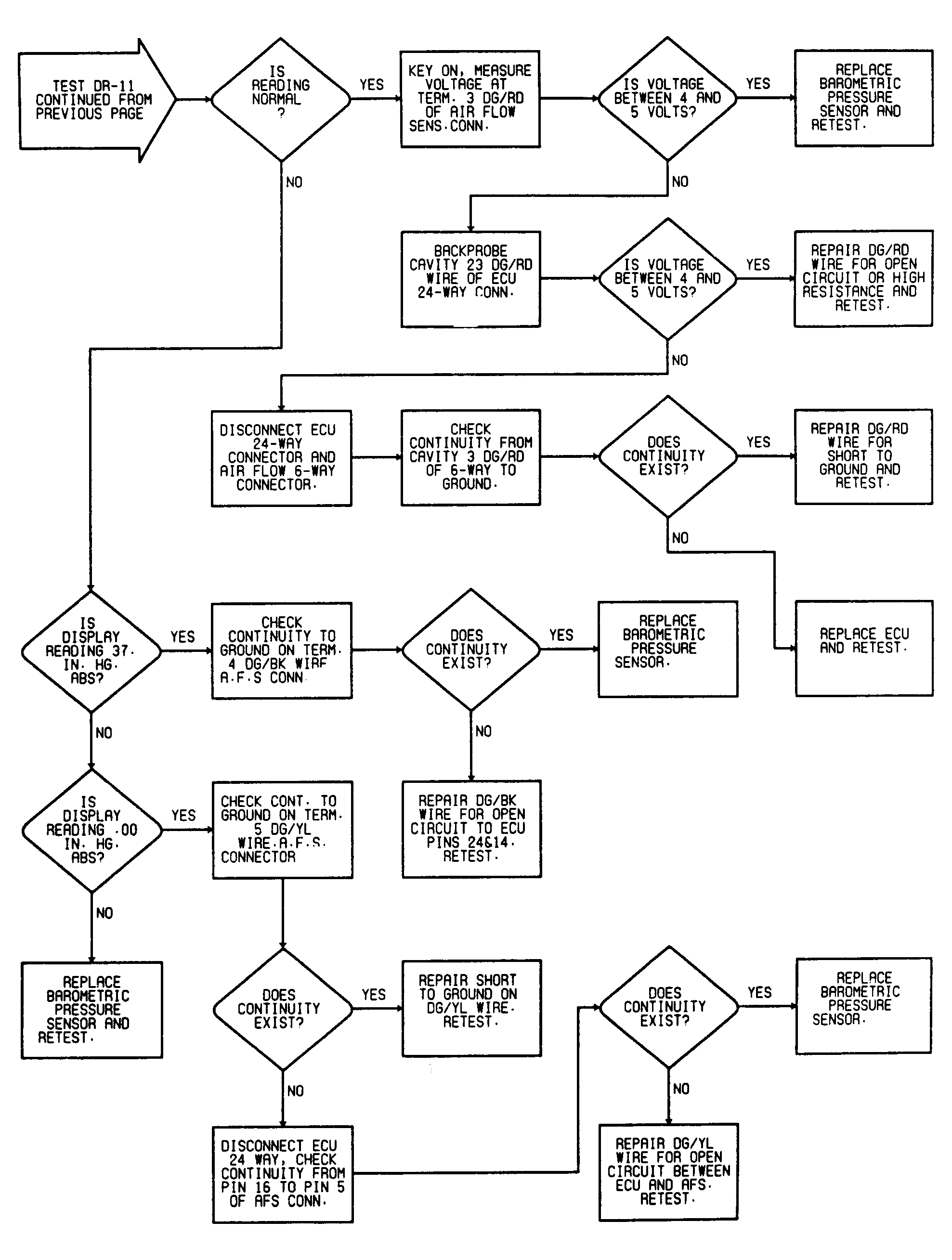

Fig 3: DR-11 Test Flow Chart (2 Of 2) Testing Barometric Pressure Sensor
