Dr-14: Testing EGR Temperature Sensor Circuit

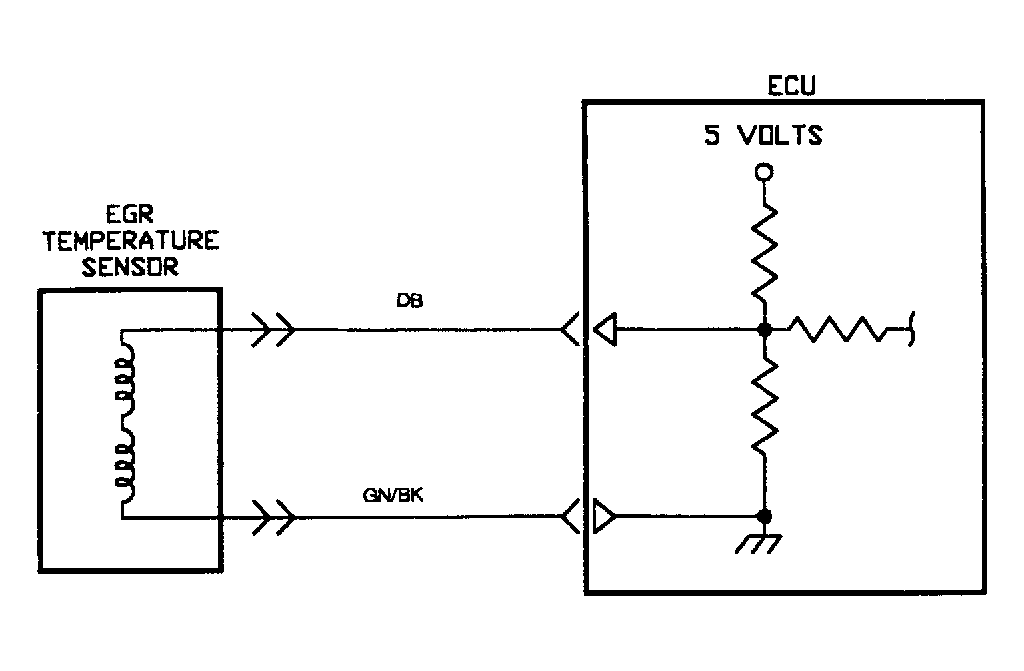

Fig 1: DR-14 Test Schematic Testing EGR Temperature Sensor Circuit

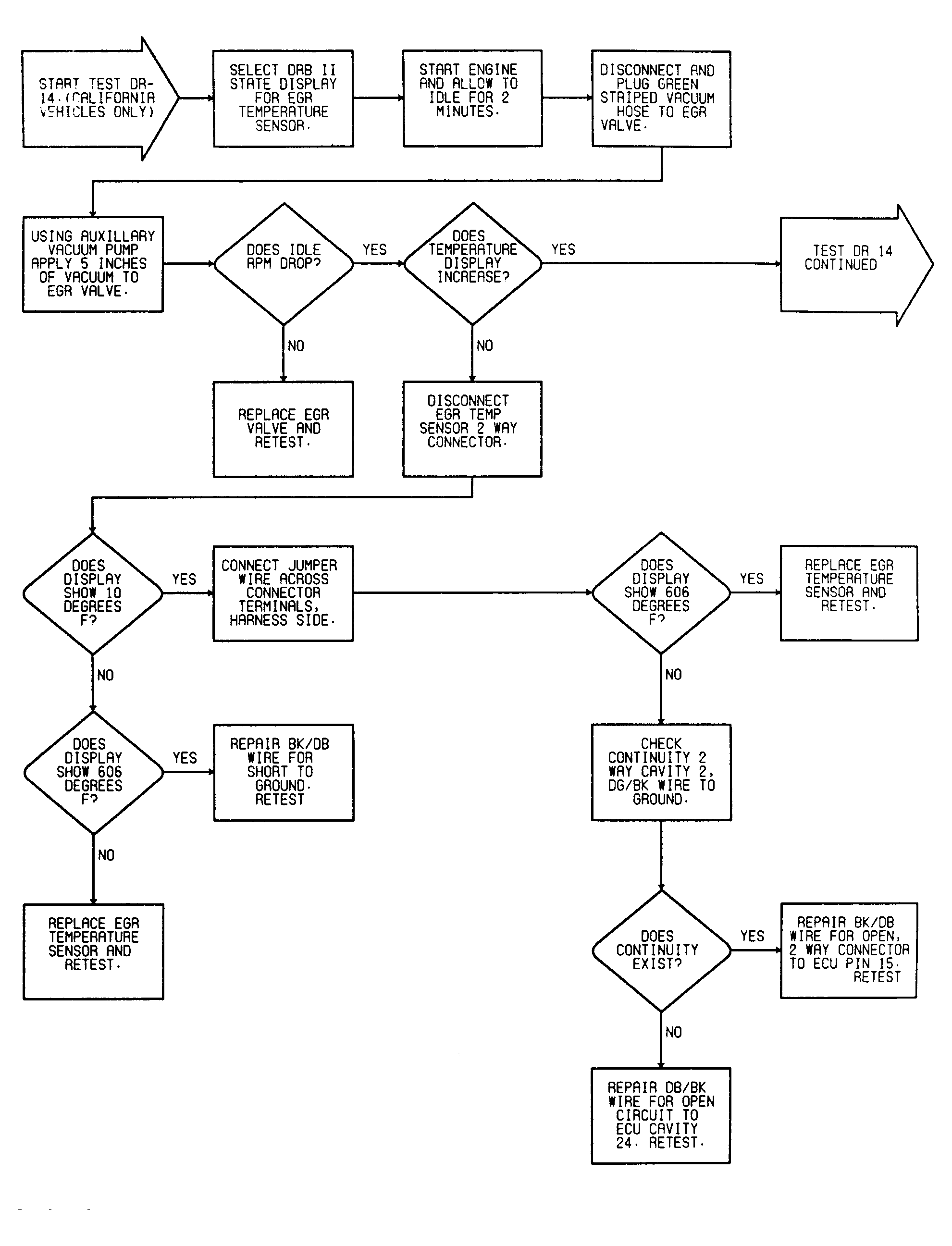

Fig 2: DR-14 Test Flow Chart (1 Of 3) Testing EGR Temperature Sensor Circuit

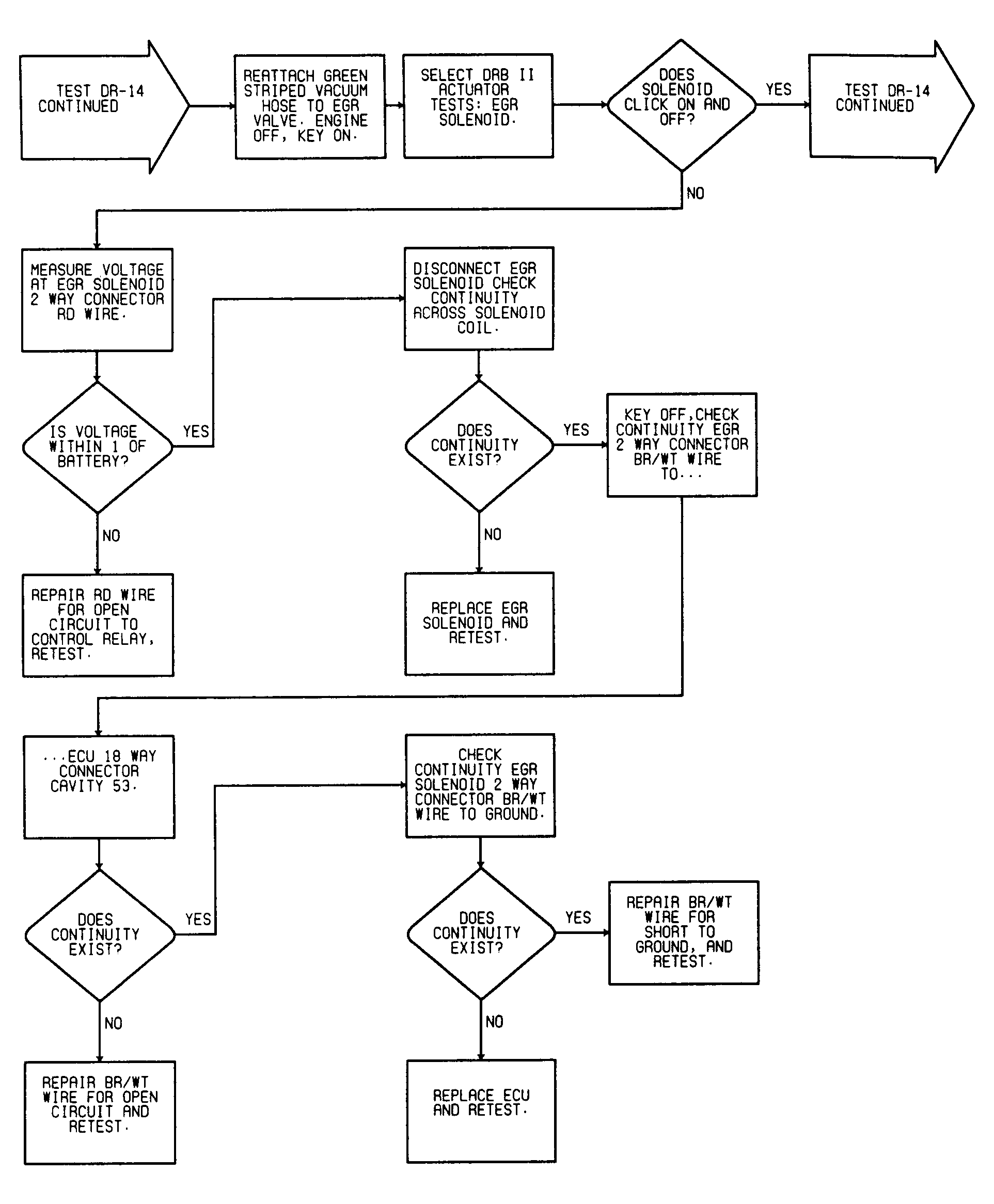

Fig 3: DR-14 Test Flow Chart (2 Of 3) Testing EGR Temperature Sensor Circuit
Fig 4: DR-14 Test Flow Chart (3 Of 3) Testing EGR Temperature Sensor Circuit
