Dr-4: Testing Intake Air Temp. Sensor Circuit

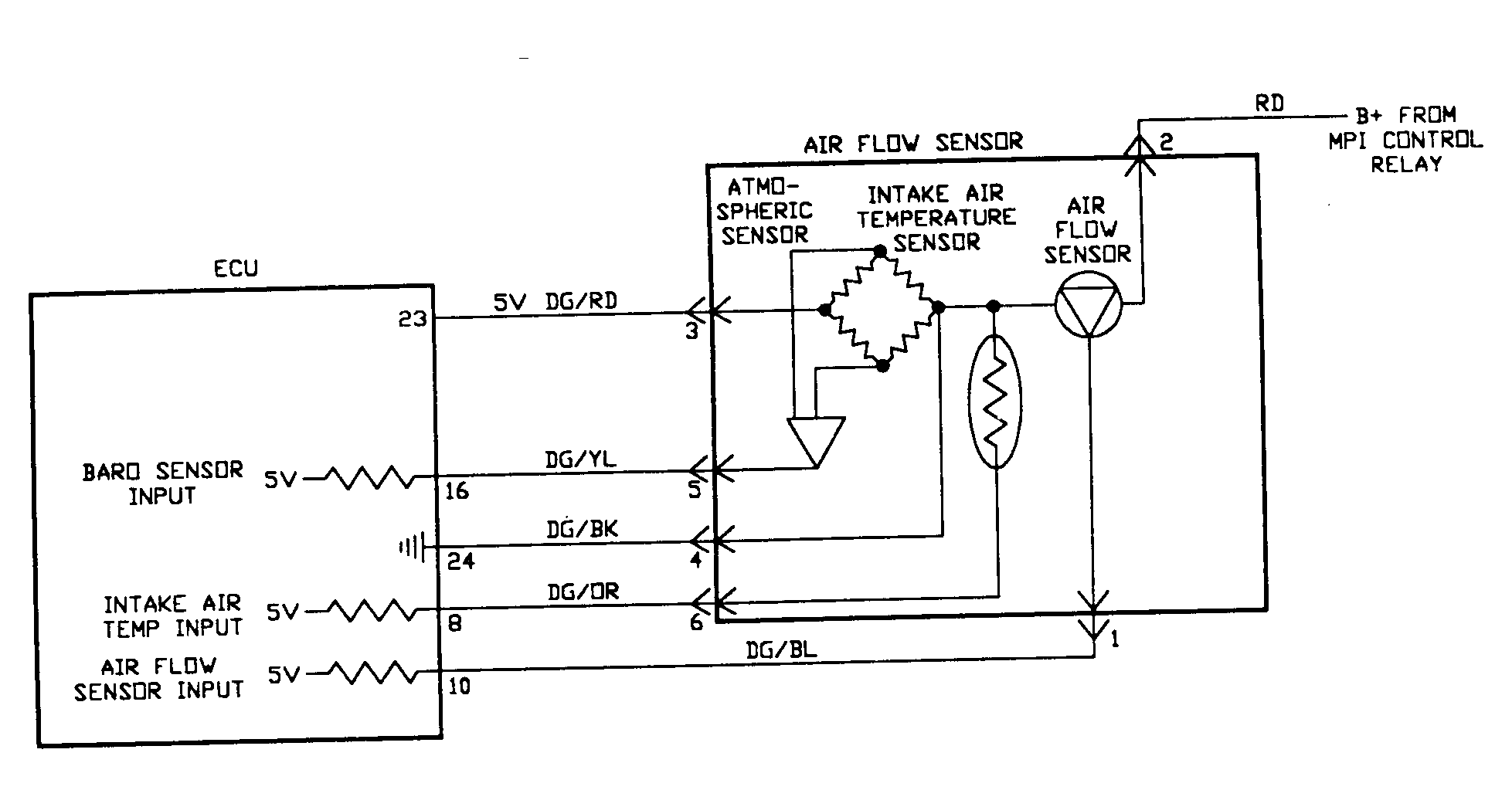

Fig 1: DR-4 Test Schematic Testing Intake Air Temperature Sensor Circuit

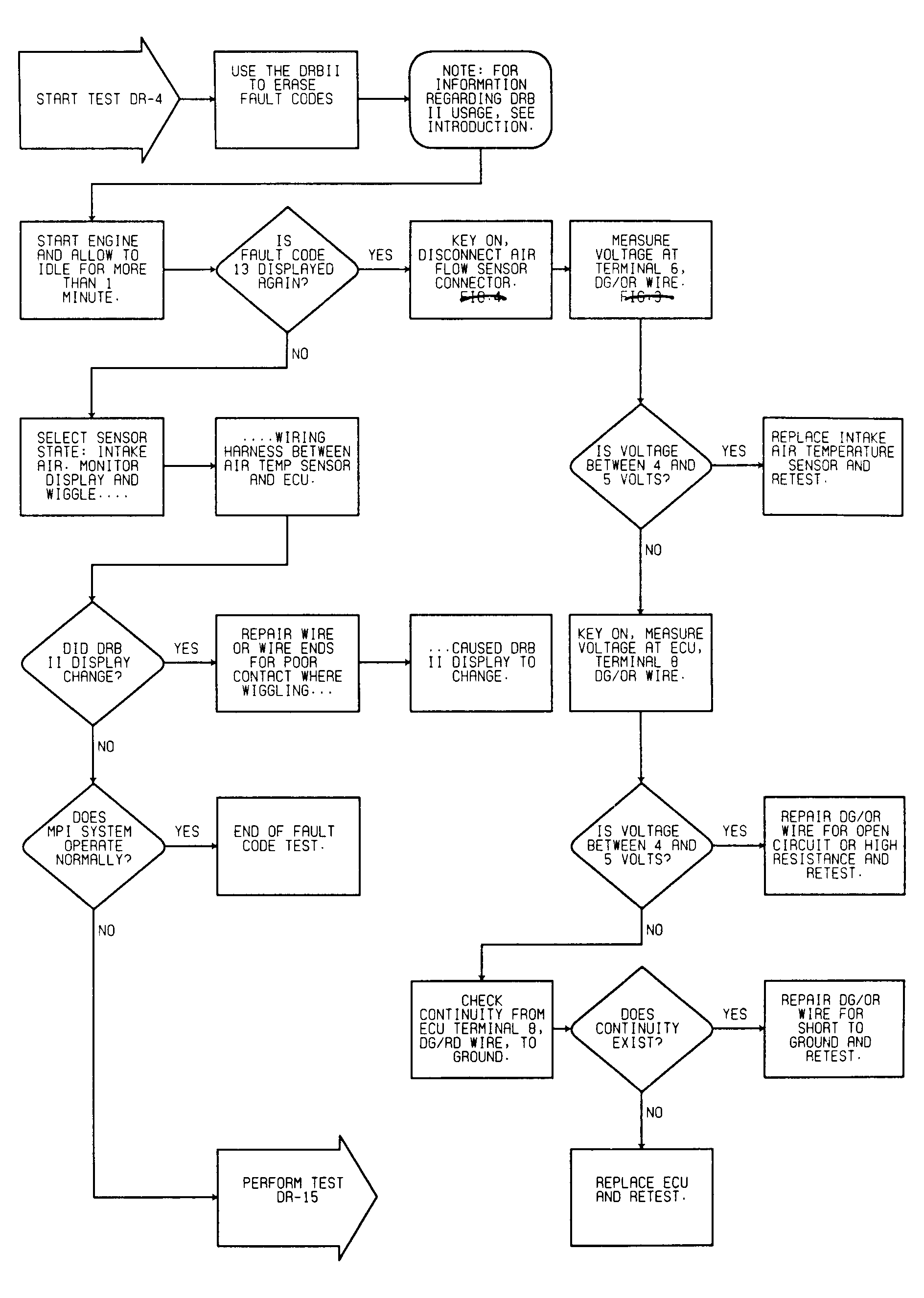

Fig 2: DR-4 Test Flow Chart Testing Intake Air Temperature Sensor Circuit
