NS-5: Testing Crank Angle Sensor
Fig 1: No Start Test 5 Schematic Testing Crank Angle Sensor

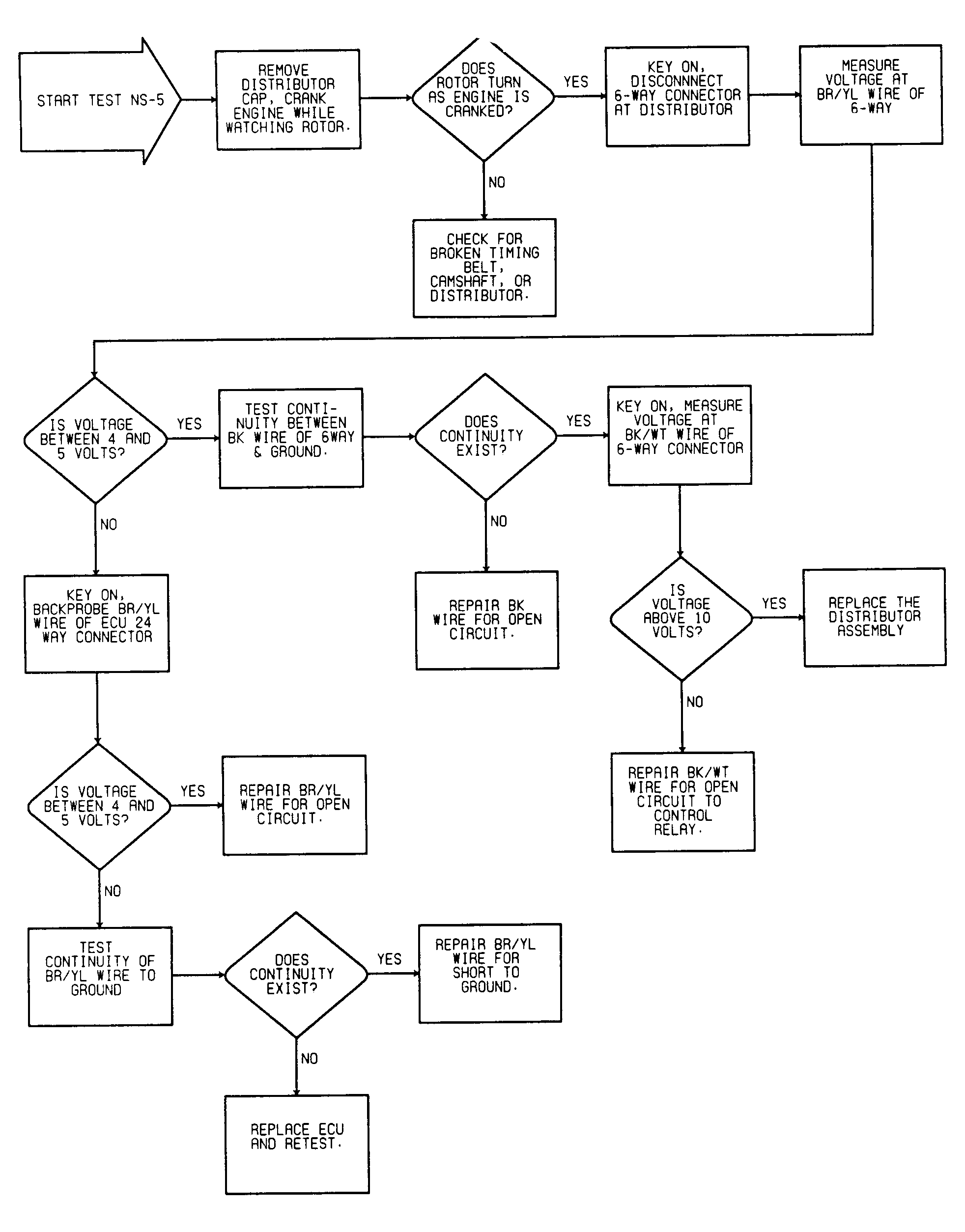

Fig 2: No Start Test 5 Flow Chart Testing Crank Angle Sensor
