Terminal Identification

NOTE: The following terminals are shown as viewed from component side.

TERMINAL ID DIRECTORY

Connector	See Fig.
Airflow Sensor	Fig 1
CKP/CMP Sensor	Fig 2
Coolant Temperature Sensor	Fig 3
ECM	Fig 4
EGR Temperature Sensor	Fig 5
Fuel Injector	Fig 6
Idle Air Control Valve Position Sensor	Fig 7
Idle Speed Control Motor & Position Sensor	Fig 8
Ignition Coil	Fig 9
Induction Control Valve Position Sensor	Fig 10
Knock Sensor	Fig 11
MAP Sensor	Fig 12
MPI Relay	Fig 13
Oxygen (O2) Sensor	Fig 14 , Fig 15
Throttle Position Sensor	Fig 16
Traction Control Vacuum Solenoid	Fig 17
Traction Control Vent Solenoid	Fig 18
Transaxle Control Module	Fig 19

Fig 1: Airflow Sensor Terminal ID

G93D45107

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: CKP/CMP Sensor Terminal ID

G93E45124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Coolant Temperature Sensor Terminal ID

G93G45126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

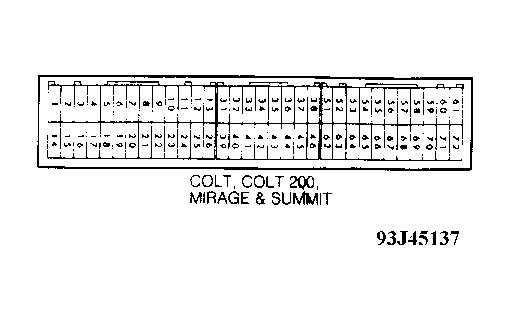

Fig 4: ECM Terminal ID

G93J45137

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: EGR Temperature Sensor Terminal ID

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Fuel Injector Terminal ID

G93B45113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Idle Speed Control Motor & Position Sensor Terminal ID

G93F80262

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Ignition Coil Terminal ID

G93D45115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Knock Sensor Terminal ID

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Map Sensor Terminal ID

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: MPI Relay Terminal ID

G93A80267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Oxygen (O2) Sensor Terminal ID (2-Wire)

G93F45117

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

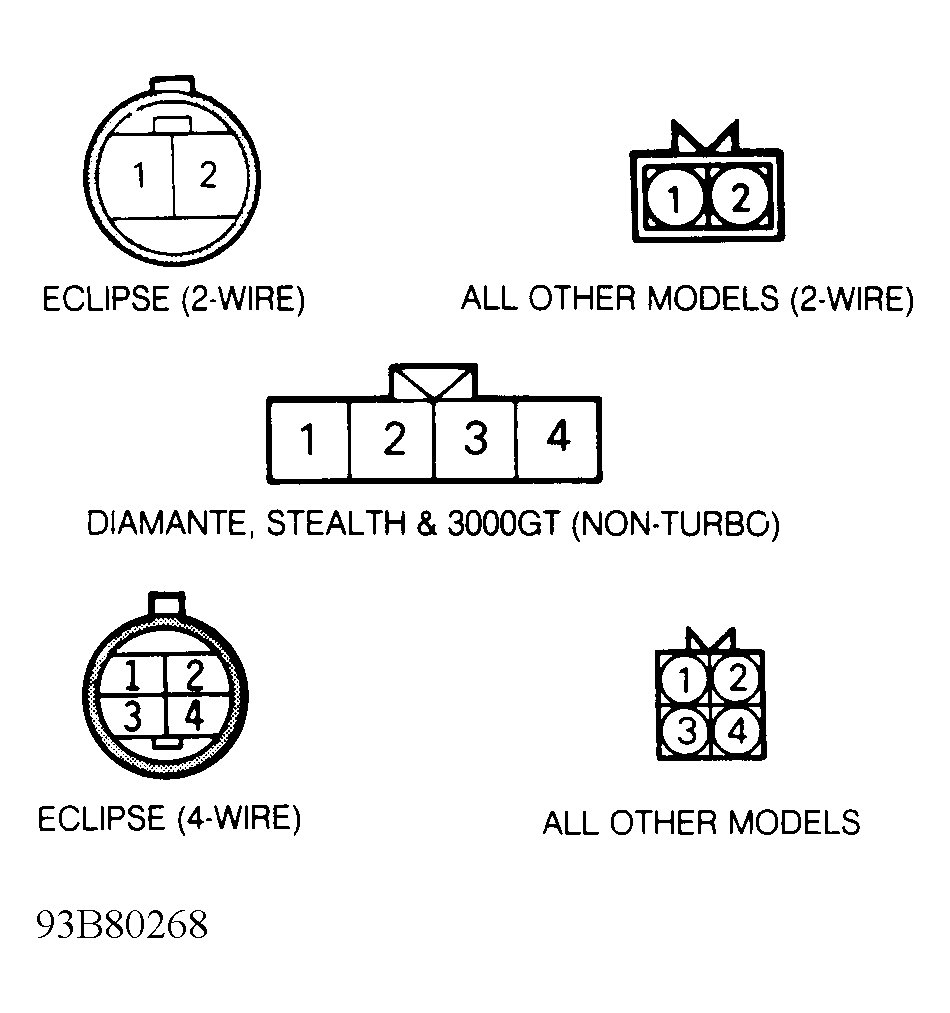

Fig 15: Oxygen (O2) Sensor Terminal ID

G93B80268

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Throttle Position Sensor Terminal ID

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Traction Control Vacuum Solenoid Terminal ID

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Traction Control Vent Solenoid Terminal ID

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Transaxle Control Module Terminal ID

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
