Window Switch Continuity Test

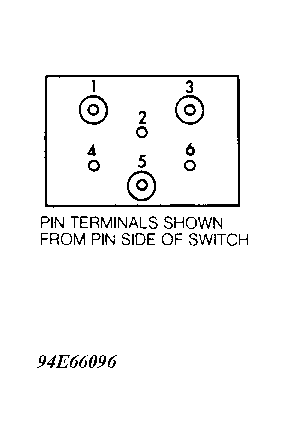

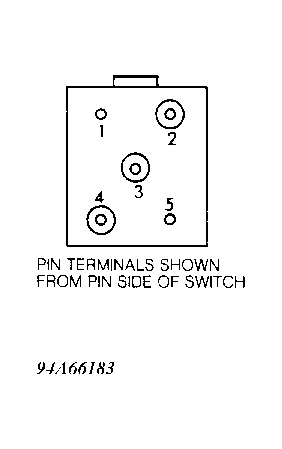

Remove switch from mounting position. See WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, determine correct continuity. See MASTER WINDOW SWITCH POSITION CONTINUITY TEST table or PASSENGER DOOR WINDOW SWITCH POSITION CONTINUITY TEST table. If there is no continuity at any one of the switch positions, replace switch. See Fig 1 or Fig 2 .
MASTER WINDOW SWITCH POSITION CONTINUITY TEST
| Switch Position | Continuity Between Pins No. |
|---|---|
| Off | 1-2, 2-3, 2-4, 2-6 |
| A | 1-5, 2-4 |
| B | 1-2, 4-5 |
| C | 3-5, 2-6 |
| D | 5-6, 2-3 |
PASSENGER DOOR WINDOW SWITCH POSITION CONTINUITY TEST
| Switch Position | Continuity Between Pins No. |
|---|---|
| OFF | 1-4, 2-5 |
| A | 3-4, 2-5 |
| B | 2-3, 1-4 |
