Body Control System Connectors

NOTE: For terminal identification of body control system connectors, see Fig 1 -16. Connector terminal numbers are molded into connectors. If connector terminal identification differs from what is shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS article in the ENGINE PERFORMANCE Section.

CONNECTOR IDENTIFICATION DIRECTORY

Connector		Illustration
Body Control Computer
Blue		See Fig 1
Natural		See Fig 2
CCD Bus Diagnostic		See Fig 3
Compass/Mini-Trip Module		See Fig 4
Front & Side Door Jamb Switch		See Fig 5
Fuel Pump/Sending Unit		See Fig 6
Instrument Cluster		See Fig 7
Ignition Key-In-Ignition		See Fig 8
Left Pod Switch Assembly		See Fig 9
Left Pod Switch Connectors
Black		See Fig 10
Blue & Gray		See Fig 11
Liftgate Switch		See Fig 12
Multifunction Switch		See Fig 13
Power Distribution Center Relay		See Fig 14
Powertrain Control Module (PCM)		See Fig 15

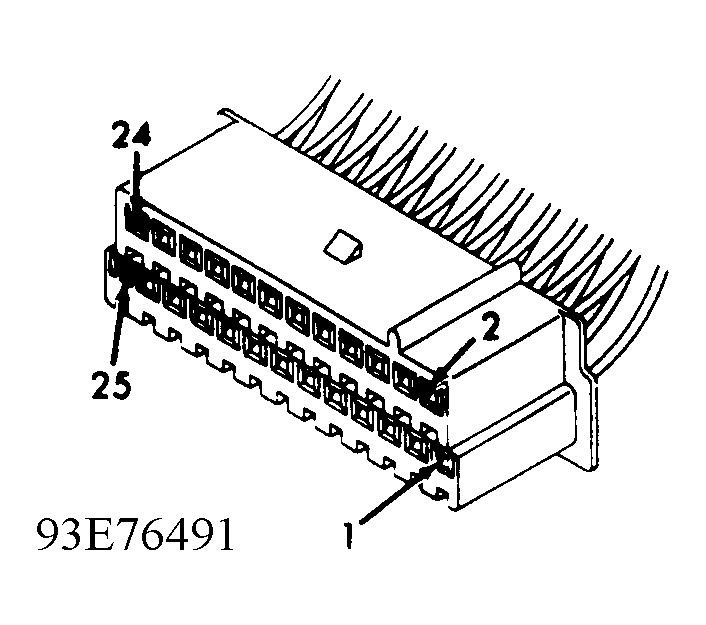

Fig 1: Body Control Computer Connector Terminals - Blue

G93E76491

Courtesy of CHRYSLER CORP.

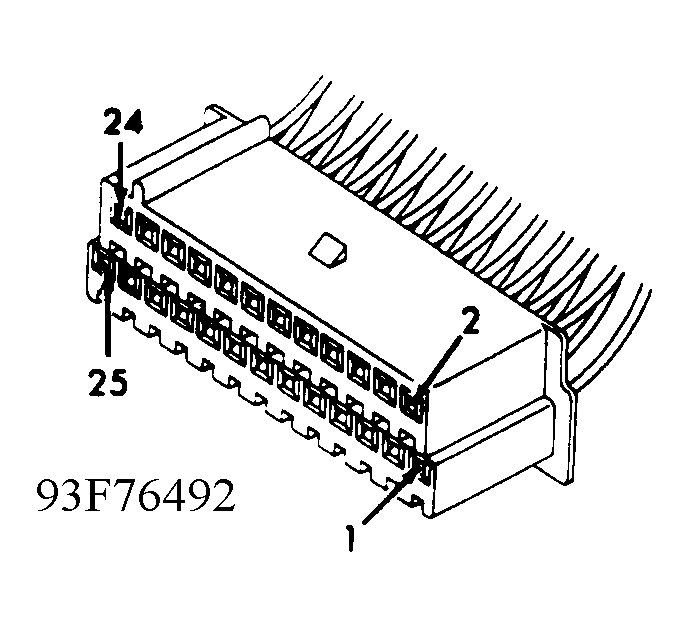

Fig 2: Body Control Computer Connector Terminals - Natural

G93F76492

Courtesy of CHRYSLER CORP.

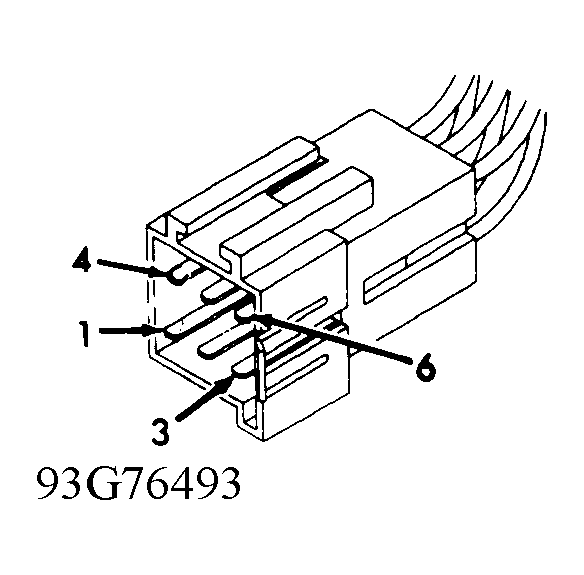

Fig 3: Identifying CCD Bus Diagnostic Connector Terminals

G93G76493

Courtesy of CHRYSLER CORP.

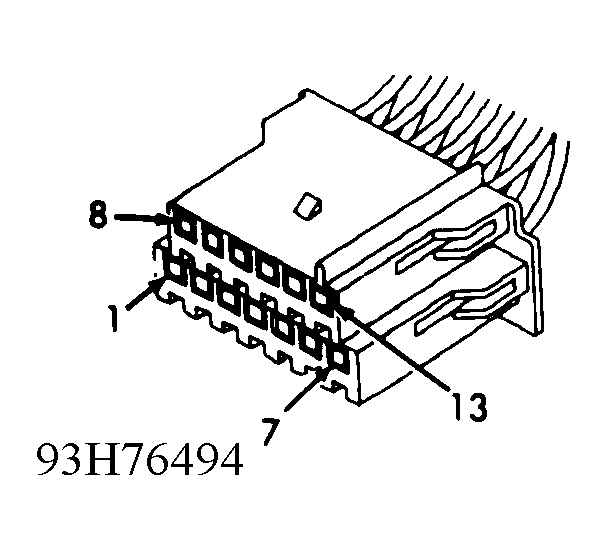

Fig 4: Identifying Compass/Mini-Trip Module Connector Terminals

G93H76494

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Front & Side Door Jamb Switch Connector Terminals

G93I76495

Courtesy of CHRYSLER CORP.

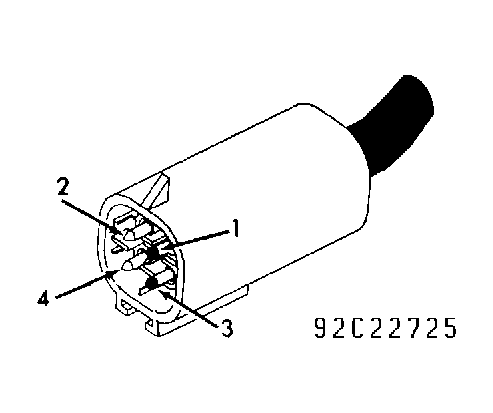

Fig 6: Identifying Fuel Pump/Sending Unit Connector Terminals

G92C22725

Courtesy of CHRYSLER CORP.

Fig 7: Identifying Instrument Cluster Connector Terminals

G92D22726

Courtesy of CHRYSLER CORP.

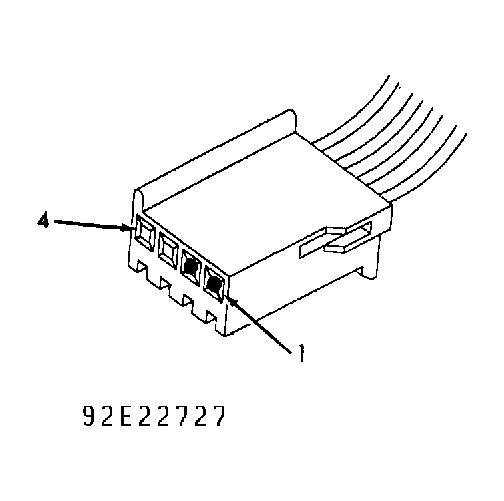

Fig 8: Identifying Key-In-Ignition Connector Terminals

G92E22727

Courtesy of CHRYSLER CORP.

Fig 9: Identifying Left Pod Switch Assembly Connector Terminals

G92F22728

Courtesy of CHRYSLER CORP.

Fig 10: Left Pod Switch Connector Terminal ID (Black Connector)

G92J22730

Courtesy of CHRYSLER CORP.

Fig 11: Left Pod Switch Connector Term. ID (Blue & Gray Connectors)

G92G22729

Courtesy of CHRYSLER CORP.

Fig 12: Identifying Liftgate Switch Connector Terminals

G92A22731

Courtesy of CHRYSLER CORP.

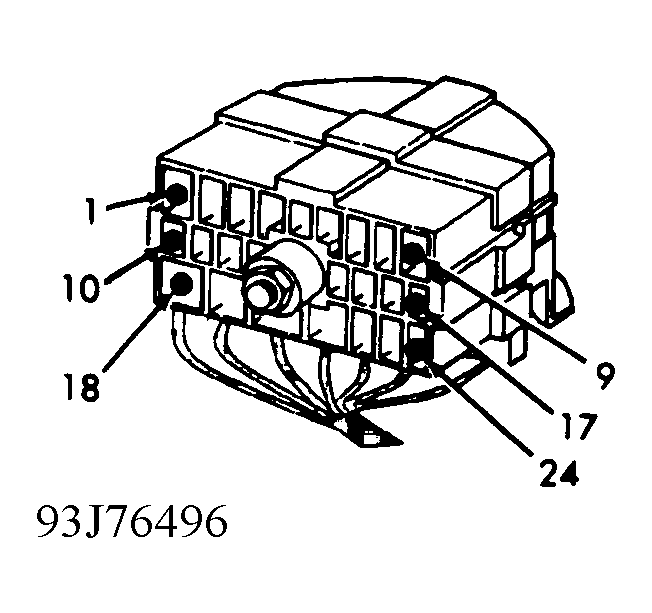

Fig 13: Identifying Multifunction Switch Connector Terminals

G93J76496

Courtesy of CHRYSLER CORP.

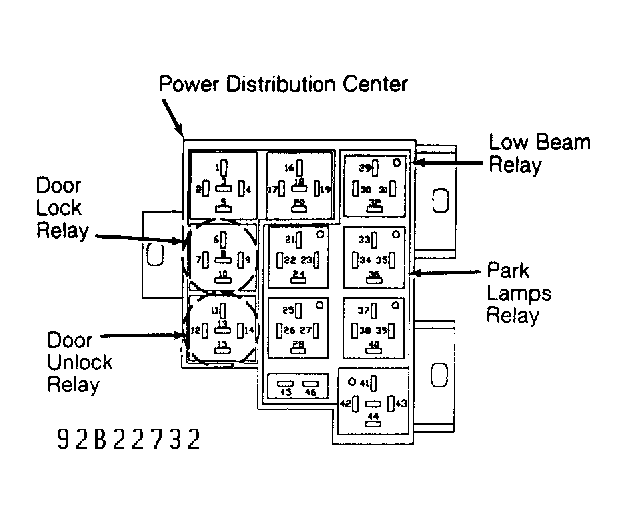

Fig 14: Power Distribution Center Relay Connector Terminal ID

G92B22732

Courtesy of CHRYSLER CORP.

Fig 15: Powertrain Control Module (PCM) Connector Terminal ID

G92I05780

Courtesy of CHRYSLER CORP.
