Terminal Identification

NOTE: The following terminals are shown as viewed from component side.

TERMINAL ID DIRECTORY

Connector	See Figure
Airflow Sensor	Fig 1
CKP/CMP Sensor	Fig 2 & Fig 3
Coolant Temperature Sensor	Fig 4
ECM	Fig 5
EGR Temperature Sensor	Fig 6
Fuel Injector	Fig 7 , Fig 8 , Fig 9 & Fig 10
Idle Air Control Valve Position Sensor	Fig 11
Idle Speed Control Motor & Position Sensor	Fig 12
Ignition Coil	Fig 13
Induction Control Valve Position Sensor	Fig 14
Knock Sensor	Fig 15
MAP Sensor	Fig 16
MPI Relay	Fig 17
Oxygen (O2) Sensor	Fig 18 , Fig 19 & Fig 20
Throttle Position Sensor	Fig 21
Traction Control Vacuum Solenoid	Fig 22
Traction Control Vent Solenoid	Fig 23
Transaxle Control Module	Fig 24

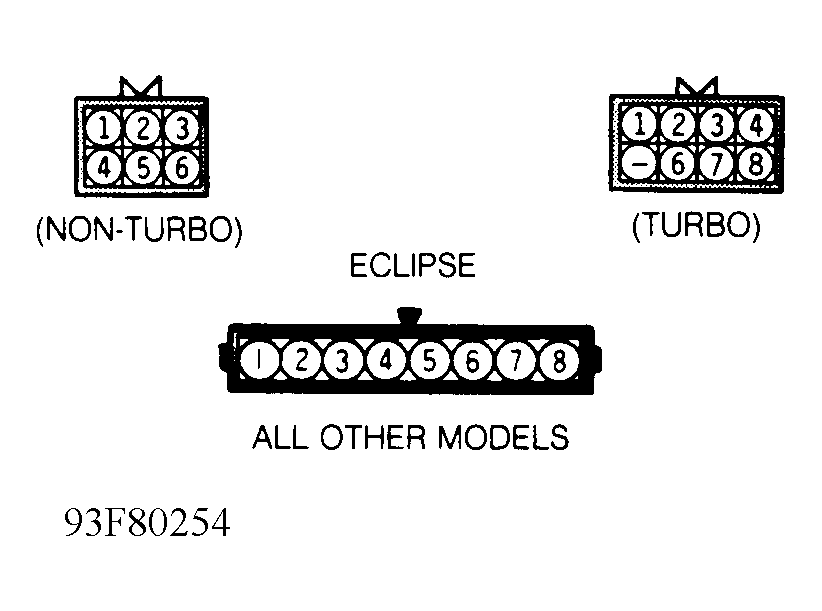

Fig 1: Airflow Sensor Terminal ID

G93F80254

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

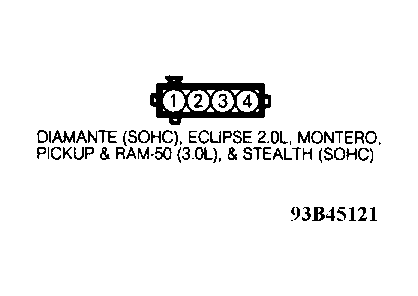

Fig 2: CKP/CMP Sensor Terminal ID (SOHC)

G93B45121

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

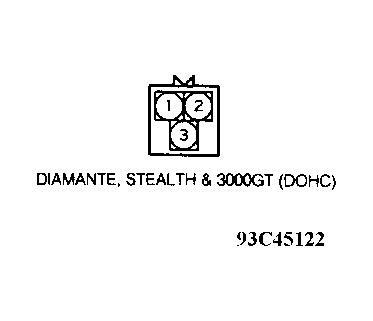

Fig 3: CKP/CMP Sensor Terminal ID (DOHC)

G93C45122

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Coolant Temperature Sensor Terminal ID (All Models)

G93G45126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: ECM Terminal ID

G93F45109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: EGR Temperature Sensor Terminal ID

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

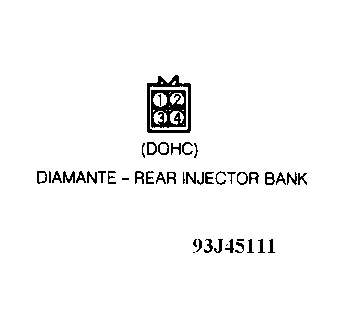

Fig 7: Fuel Injector Terminal ID (Diamante DOHC Rear Injector Bank)

G93J45111

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

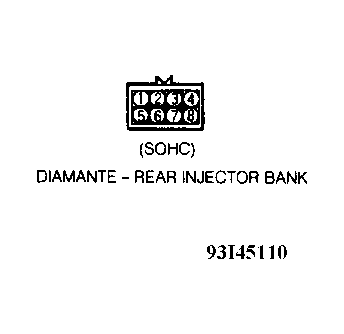

Fig 8: Fuel Injector Terminal ID (Diamante SOHC Rear Injector Bank)

G93I45110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Fuel Injector Terminal ID (3000GT Rear Injector Bank)

G93A45112

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

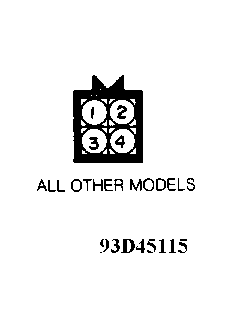

Fig 10: Fuel Injector Terminal ID (All Other Models)

G93B45113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

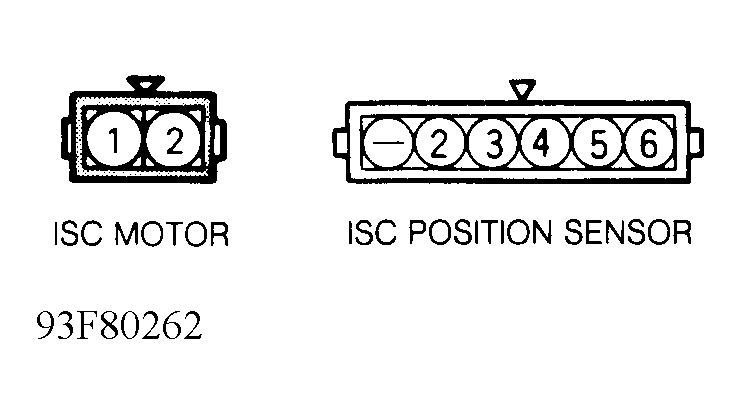

Fig 12: Idle Speed Control Motor & Position Sensor Terminal ID

G93F80262

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Ignition Coil Terminal ID

G93D45115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Knock Sensor Terminal ID

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Map Sensor Terminal ID

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

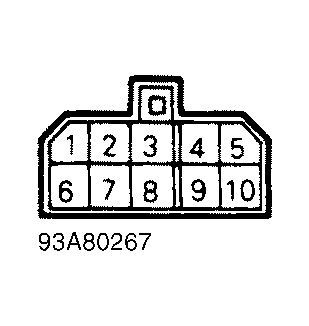

Fig 17: MPI Relay Terminal ID

G93A80267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

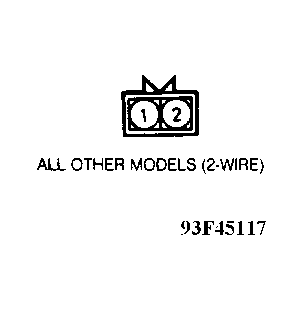

Fig 18: Oxygen (O2) Sensor Terminal ID (2-Wire Models)

G93F45117

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

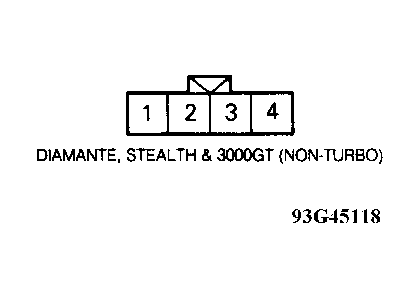

Fig 19: Oxygen (O2) Sensor Terminal ID (Non-Turbo)

G93G45118

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

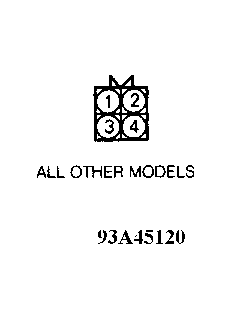

Fig 20: Oxygen (O2) Sensor Terminal ID (4-Wire)

G93A45120

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Throttle Position Sensor Terminal ID

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Traction Control Vacuum Solenoid Terminal ID

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Traction Control Vent Solenoid Terminal ID

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Transaxle Control Module Terminal ID

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
