Connector Identification & Speed Control Fuse Location

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector terminal identification, see Fig 1 -Fig 6 .

Fuse block is located under left side of dash. Speed (cruise) control fuse is No. 10.

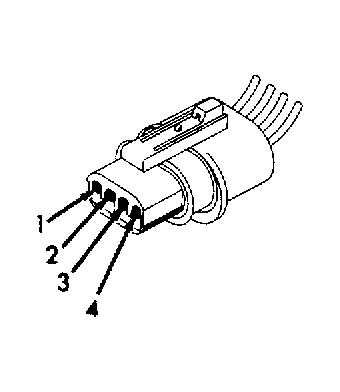

Fig 1: Brake Switch Connector Terminals ID

Courtesy of CHRYSLER CORP.

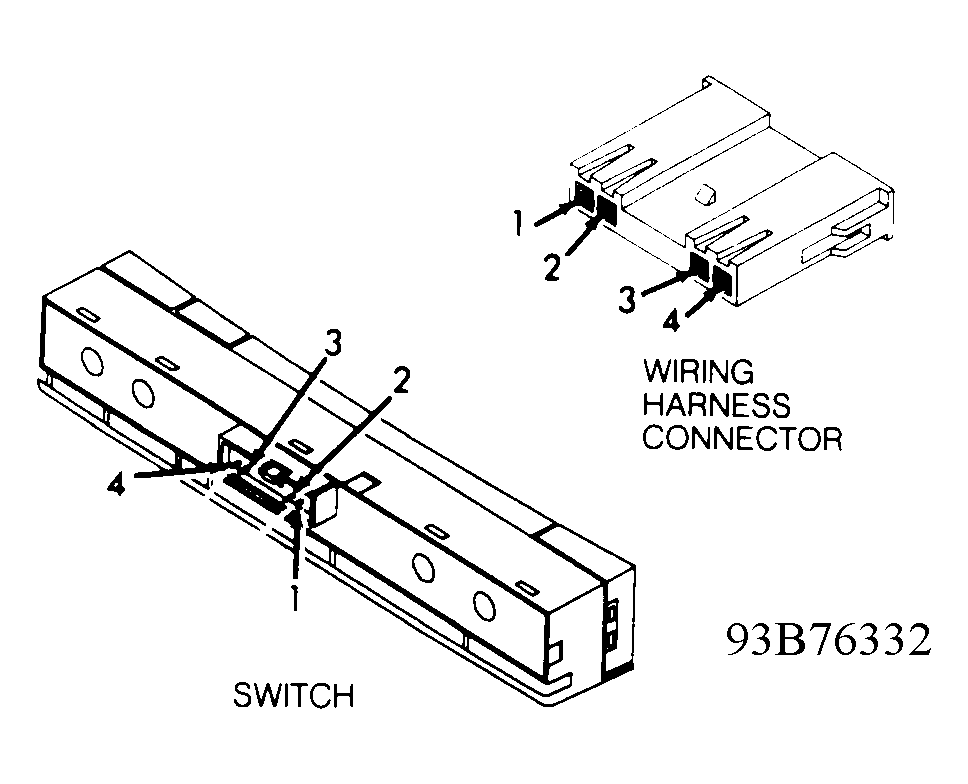

Fig 2: Clockspring Connector Terminals ID

Courtesy of CHRYSLER CORP.

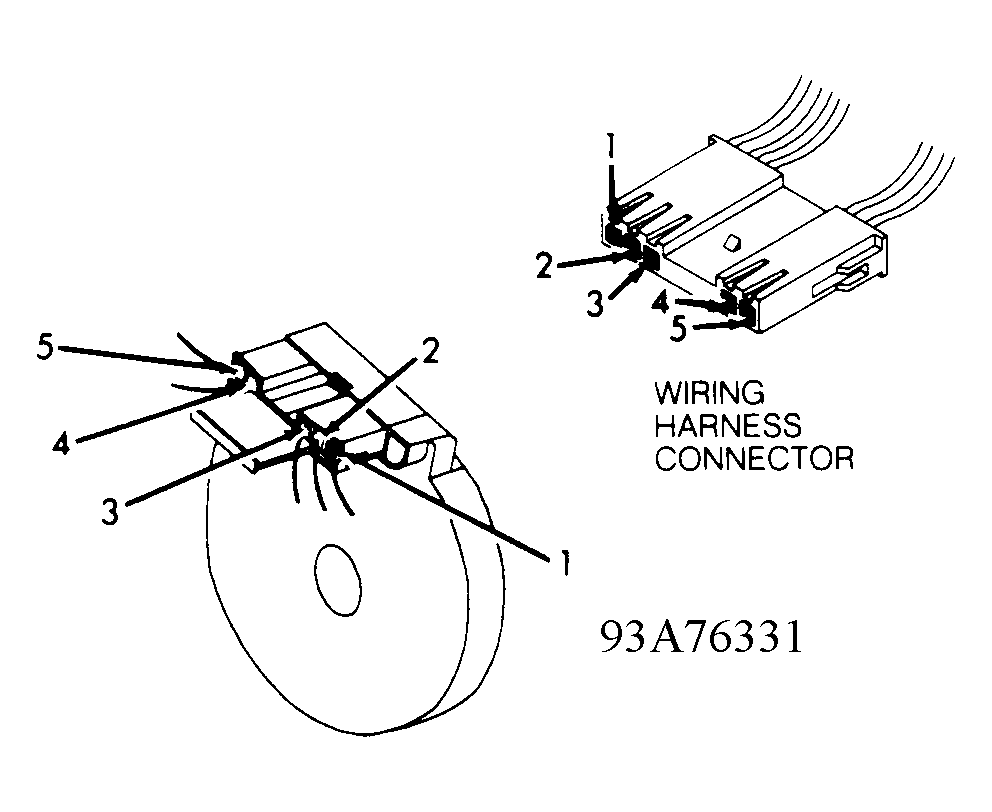

Fig 3: Speed Control Servo Connector Terminals ID

Courtesy of CHRYSLER CORP.

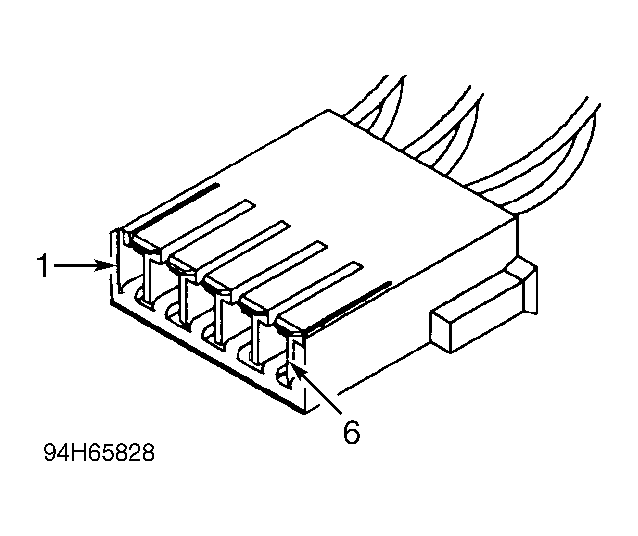

Fig 4: Speed Control Switch Connector Terminals ID

Courtesy of CHRYSLER CORP.

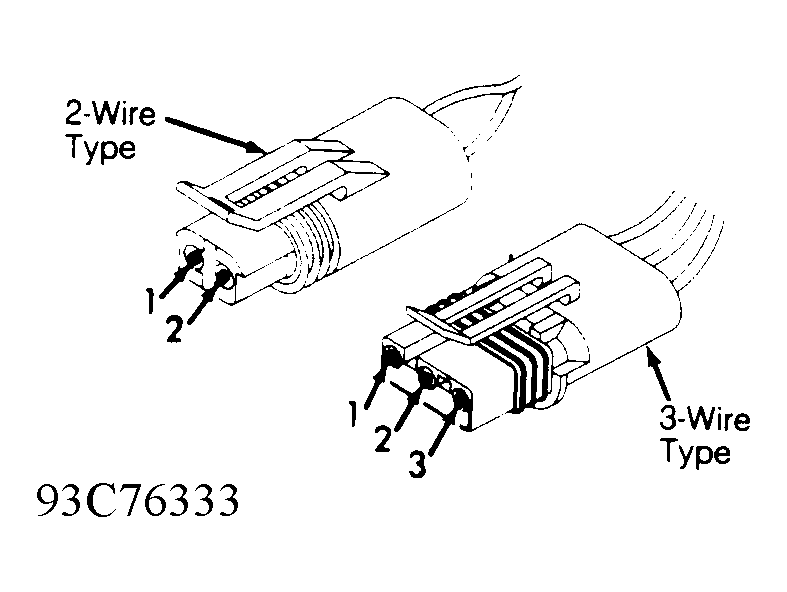

Fig 5: Distance (Speed) Sensor Connector Terminals ID

Courtesy of CHRYSLER CORP.

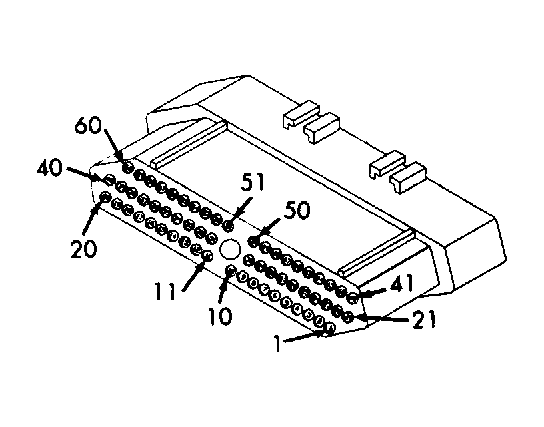

Fig 6: Powertrain Control Module (PCM) Connector Terminals ID

Courtesy of CHRYSLER CORP.
