Brake Switch
WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

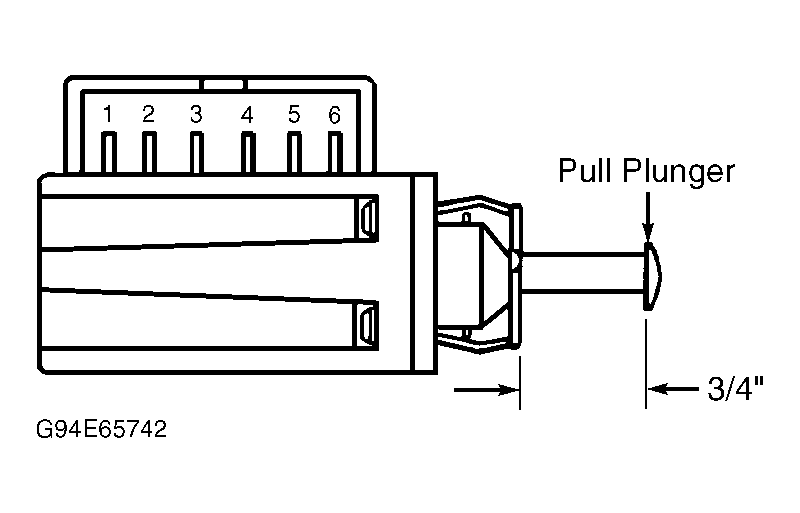

Disconnect brake switch 6-pin connector. Using an ohmmeter, check for continuity at brake switch. See Fig 1 . If continuity is not as specified in BRAKE SWITCH CONTINUITY tables, check brake switch adjustment. If brake switch adjustment is okay, replace defective brake switch.
BRAKE SWITCH CONTINUITY
| Switch Plunger Position | Check Between Terminal Nos. | Continuity |
|---|---|---|
| Released | 5 & 6 | Yes |
| Depressed | 1 & 2; 3 & 4 | Yes |
