Speed (Cruise) Control Switch
WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

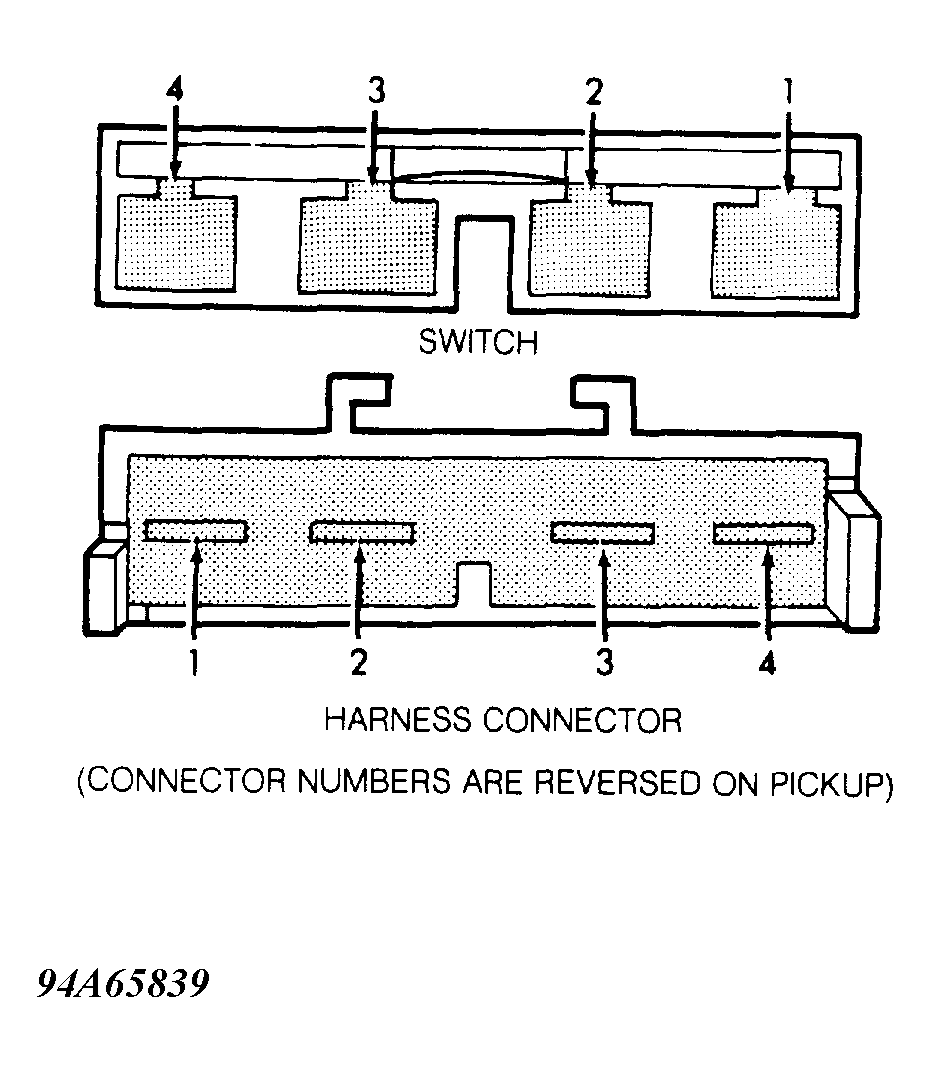

Disconnect speed control switch 4-pin connector. Using an ohmmeter, check for continuity at speed control switch. See Fig 1 . If continuity is not as specified in SPEED CONTROL SWITCH CONTINUITY table, replace defective speed control switch.
SPEED CONTROL SWITCH CONTINUITY
| Switch Position | Check Between Terminals No. | Continuity |
|---|---|---|
| OFF | 1 & 4 | Yes |
| ON | 1 & 4 | Yes |
| ON | 1 & 2 | Yes |
| ON | 2 & 4 | Yes |
| ON & SET | 1 & 2 | Yes |
| ON & RESUME | 1 & 3 | Yes |
