Body Control System Connectors

WARNING: This page is about a different car, the 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For terminal identification of body control system connectors, see Fig 1 -Fig 25 . Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS .

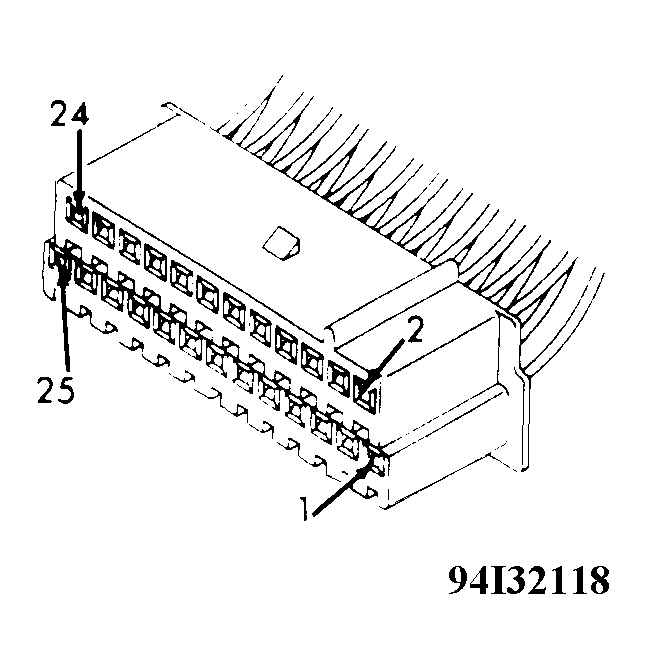

Fig 1: Body Control Module Black Connector Terminal ID

G94I32118

Courtesy of CHRYSLER CORP.

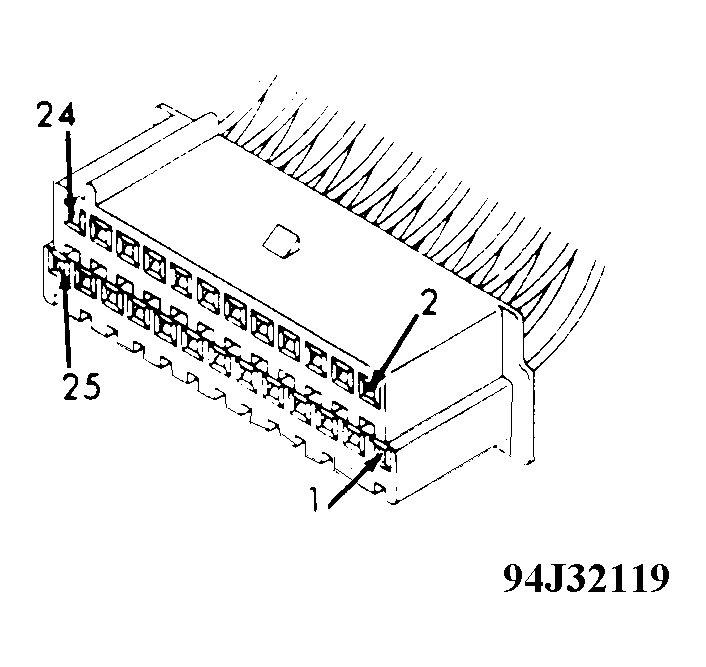

Fig 2: Body Control Module Natural/Red Connector Terminal ID

G94J32119

Courtesy of CHRYSLER CORP.

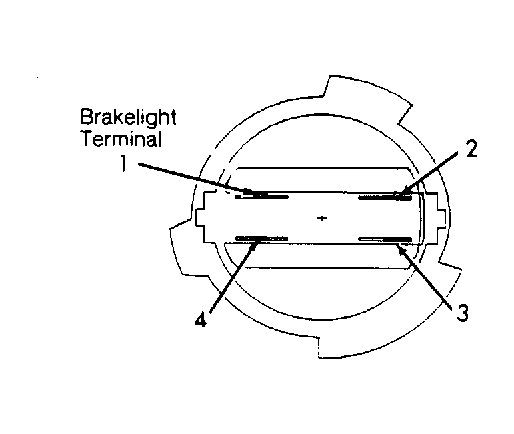

Fig 3: Brakelight Bulb Socket Terminal ID

G92G05755

Courtesy of CHRYSLER CORP.

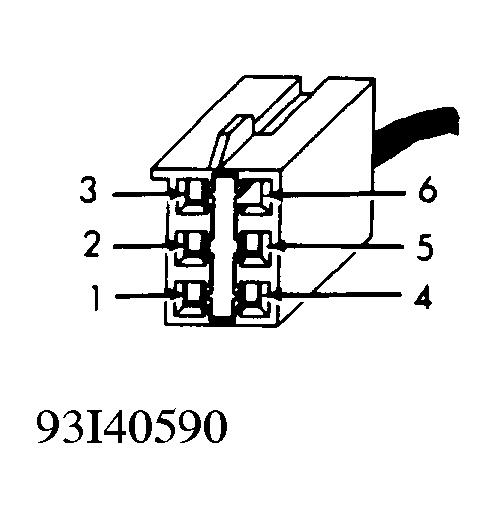

Fig 4: Brakelight Switch & EVIC Connector Terminal ID

G93I40590

Courtesy of CHRYSLER CORP.

Fig 5: Data Link Connector (DLC) Terminal ID

G93J40591

Courtesy of CHRYSLER CORP.

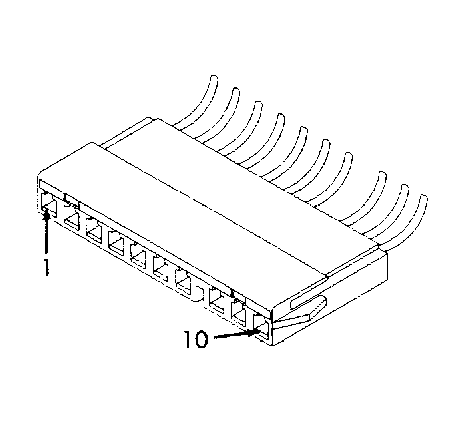

Fig 6: Compass/Temperature Connector Terminal ID

G92C05758

Courtesy of CHRYSLER CORP.

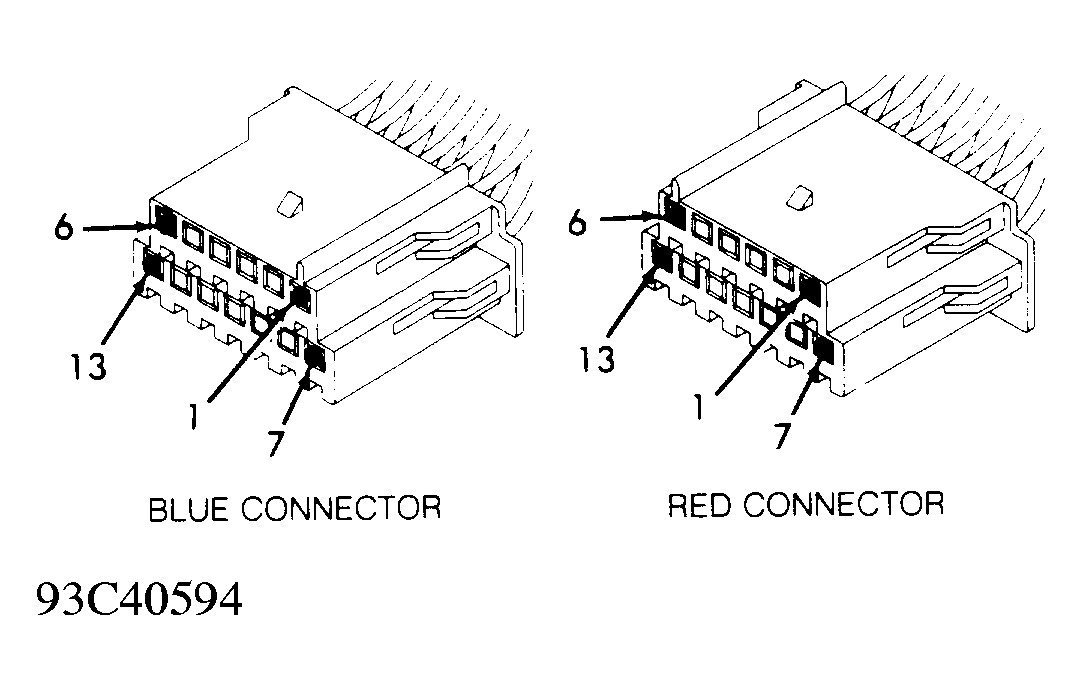

Fig 7: Electronic Instrument Cluster Connector Terminal ID

G93C40594

Courtesy of CHRYSLER CORP.

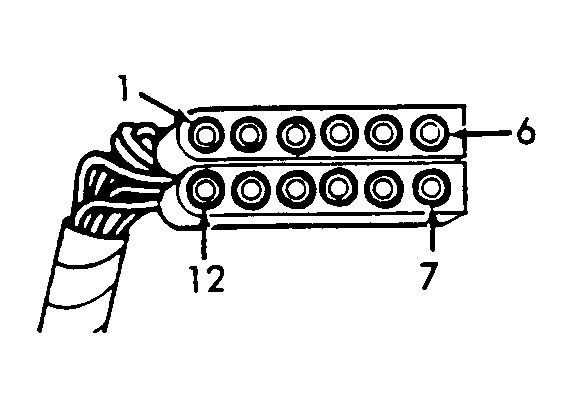

Fig 8: Engine Node Connector Terminal ID

G92I01522

Courtesy of CHRYSLER CORP.

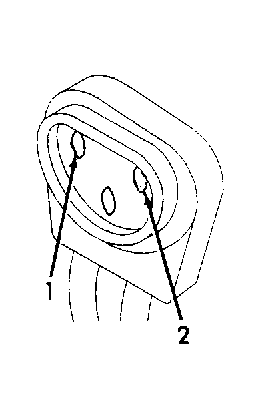

Fig 9: Fuel Tank Sending Unit Connector Terminal ID

G92I05761

Courtesy of CHRYSLER CORP.

Fig 10: Relay Connector Terminal ID

G92C05763

Courtesy of CHRYSLER CORP.

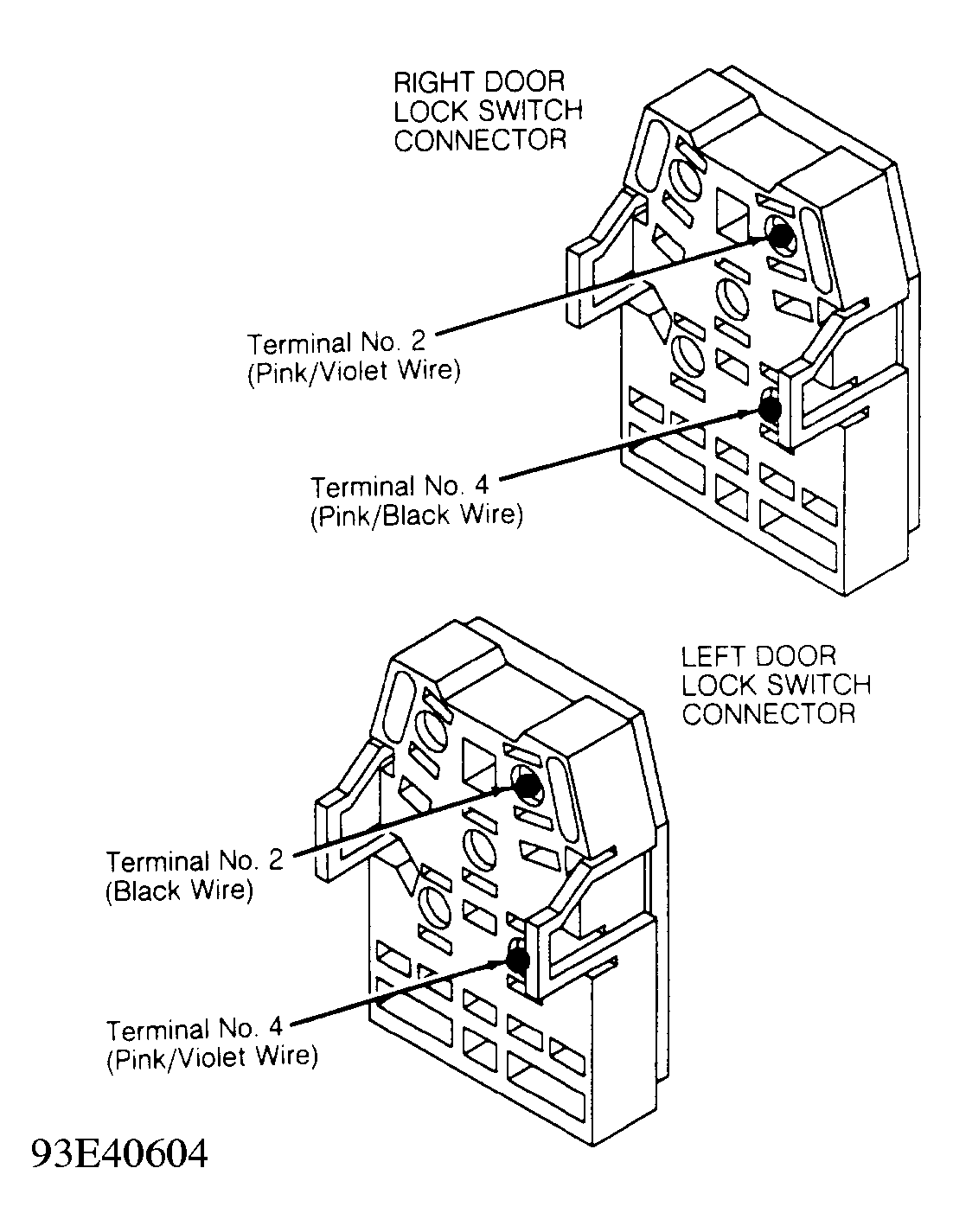

Fig 11: Door Lock Switch Connector Terminal ID

G93E40604

Courtesy of CHRYSLER CORP.

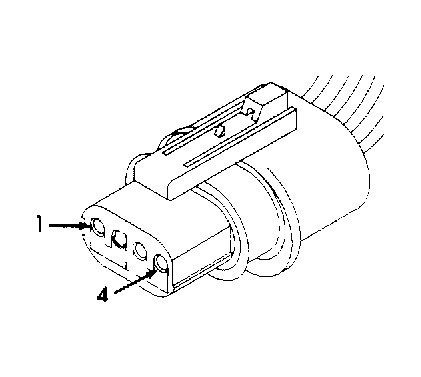

Fig 12: Illuminated Entry Switch Connector Terminal ID

G92J05766

Courtesy of CHRYSLER CORP.

Fig 13: Ignition Switch Connector Terminal ID

G93G40606

Courtesy of CHRYSLER CORP.

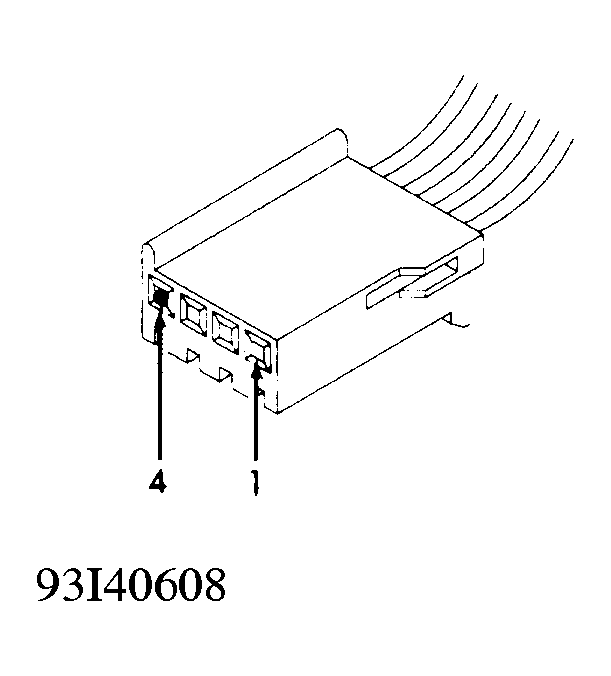

Fig 14: Key-In Light Connector Terminal ID

G93I40608

Courtesy of CHRYSLER CORP.

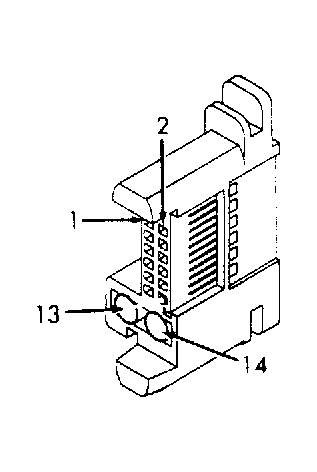

Fig 15: Left Side Pod Switch Connector Terminal ID

G92F05769

Courtesy of CHRYSLER CORP.

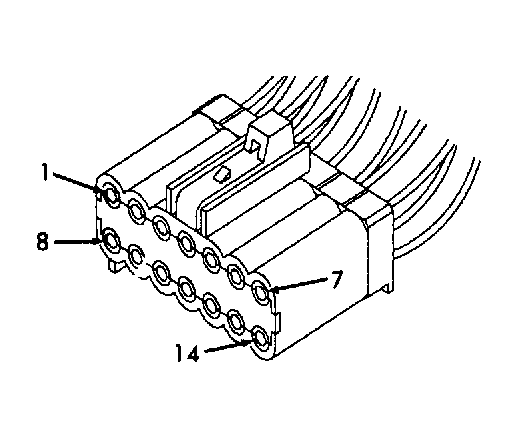

Fig 16: Light Outage Module 14-Pin Connector Terminal ID

G92J05785

Courtesy of CHRYSLER CORP.

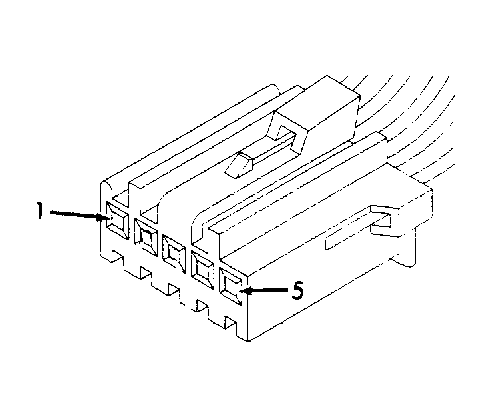

Fig 17: Light Outage Module 5-Pin Connector Terminal ID

G92J05771

Courtesy of CHRYSLER CORP.

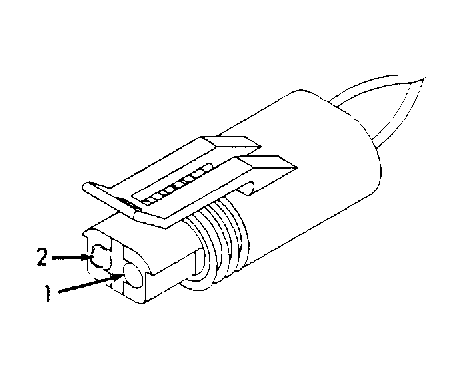

Fig 18: Oil Pressure Switch/Sending Unit & Ambient Temperature Sensor Connector Terminal ID

G92I05775

Courtesy of CHRYSLER CORP.

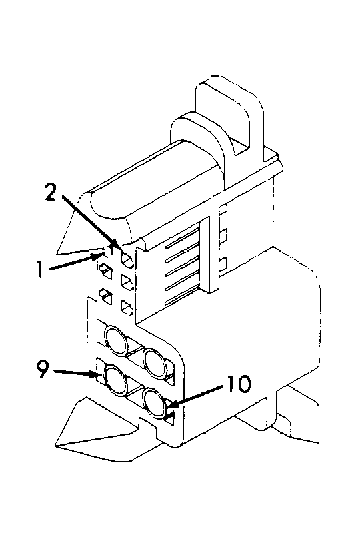

Fig 19: Right Side Pod Switch Connector Terminal ID

G92E05778

Courtesy of CHRYSLER CORP.

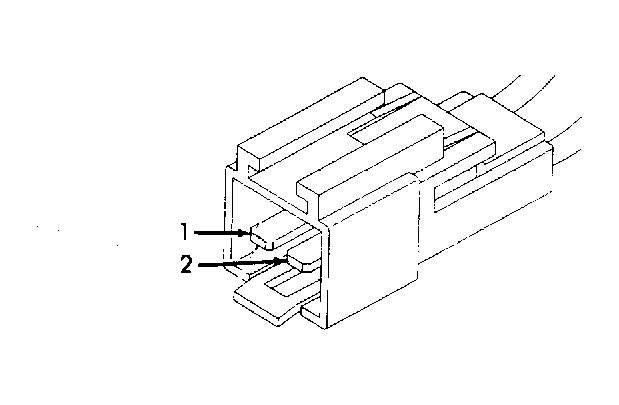

Fig 20: Seat Belt Switch Connector Terminal ID

G92G05779

Courtesy of CHRYSLER CORP.

Fig 21: PCM TCM Connector Terminal ID

G92I05780

Courtesy of CHRYSLER CORP.

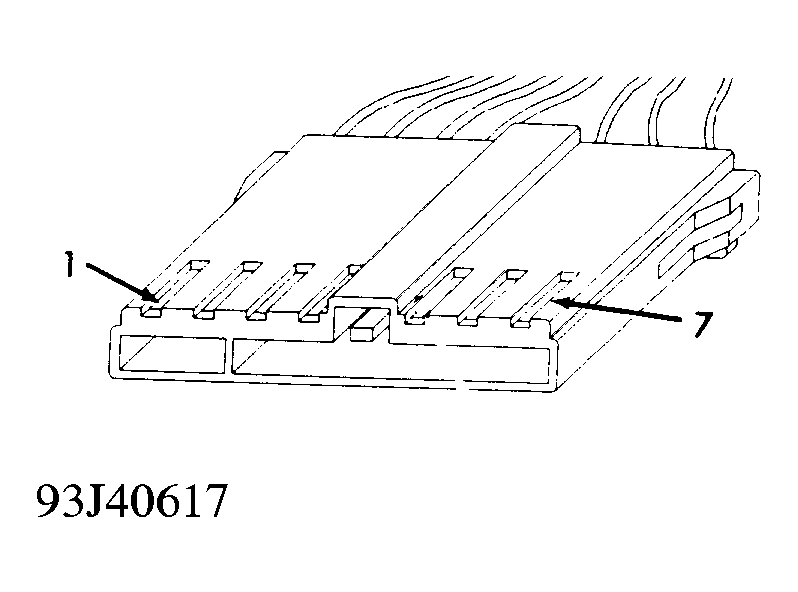

Fig 22: Traveler & EVIC Connector Terminal ID

G93J40617

Courtesy of CHRYSLER CORP.

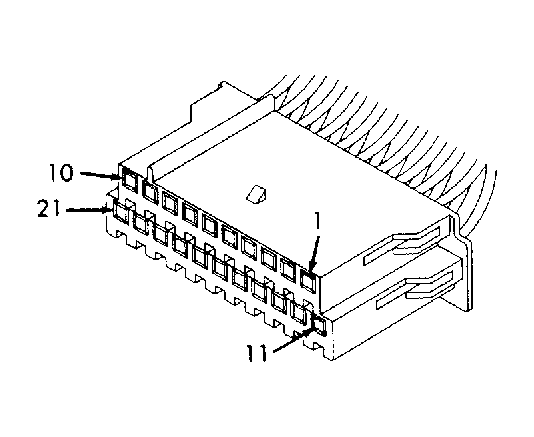

Fig 23: Vehicle Theft Security System Module Connector Terminal ID

G92E05783

Courtesy of CHRYSLER CORP.

Fig 24: Light Outage Module, Visual Message Center & Instrument Cluster Connector Terminal ID

G92J05785

Courtesy of CHRYSLER CORP.

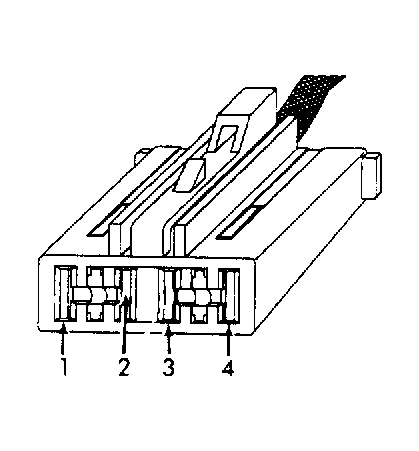

Fig 25: Wiper Motor Connector Terminal ID

G92D05787

Courtesy of CHRYSLER CORP.
