Data Link Connector

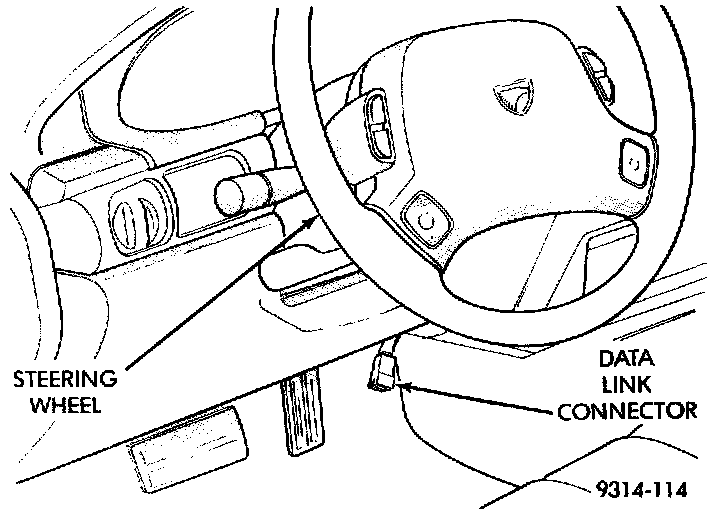

LOCATION

Under right side of drivers instrument panel.

Data Link Connector Identification:

PURPOSE

Communication link to Powertrain Control Module (PCM)

Technician can access inputs and memory including:

- Sensor input values
- Diagnostic Trouble Codes (DTC's) stored in memory
- Last deactivation cause (i.e.. speed control last shut off by; speed control switch, brake switch or no crank sensor signal).

Technician can actuate most PCM output devices.

NOTE: Monitoring inputs, reading other memory and actuating output devices can only be accomplished through the use of a scan tool. SEE TESTING AND INSPECTION.
