Symbol and Fuse Identification

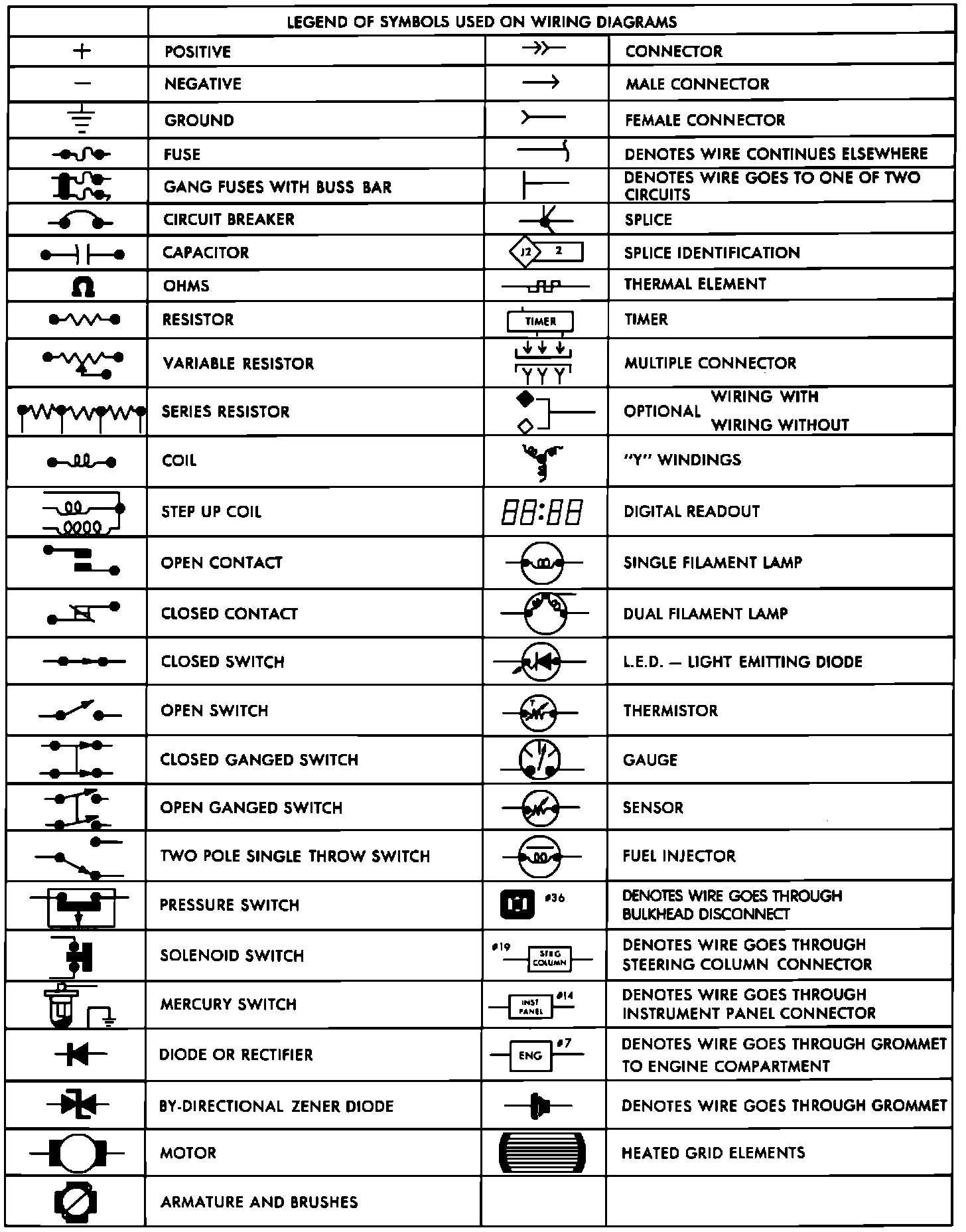

Schematic Symbols:

Various symbols are used throughout the wiring diagrams. These symbols can be identified by referring to the above symbol identification chart.

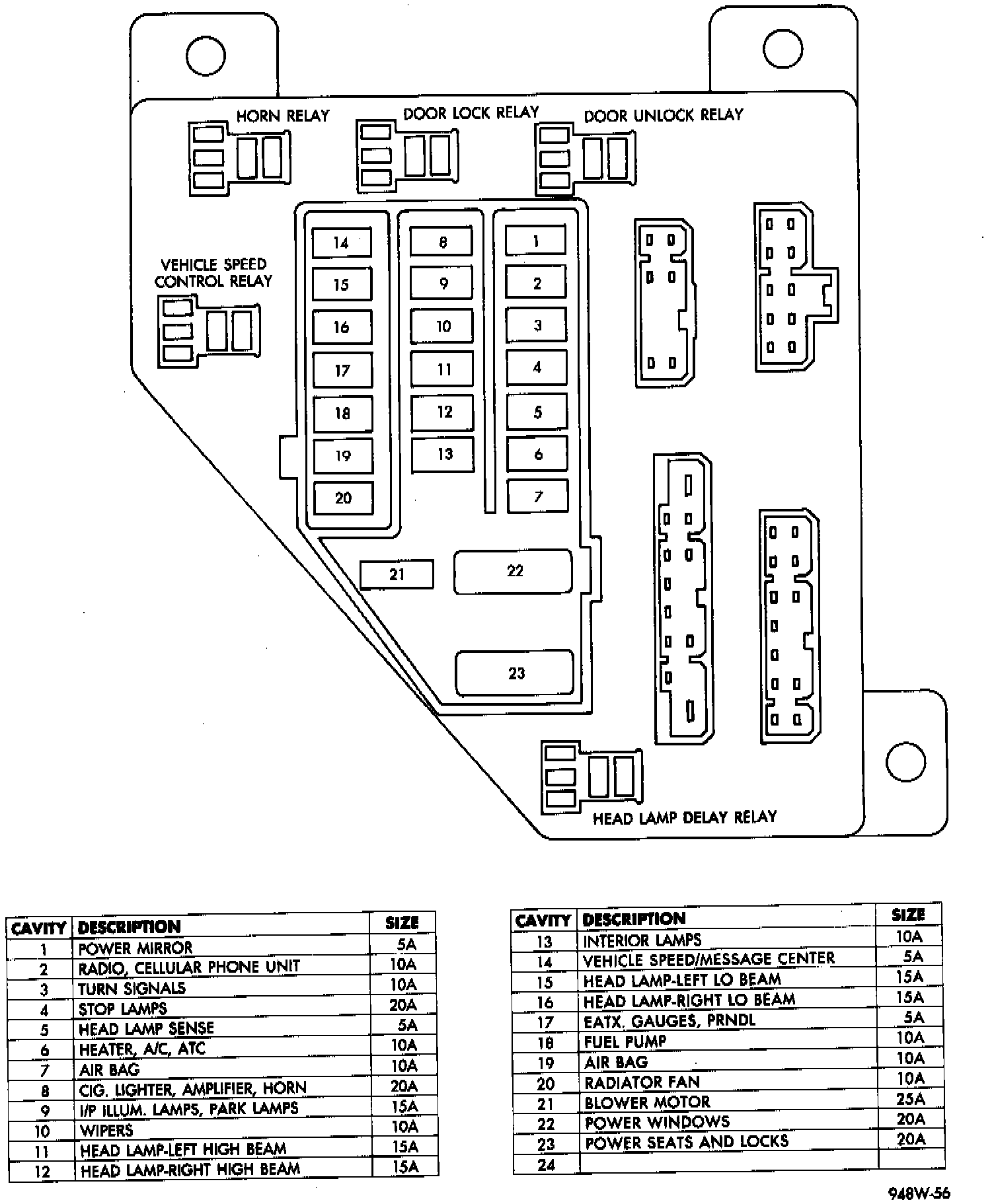

Junction Block Identification:

Refer to figure above for fuse block information.

CAUTION: When replacing a blown fuse it is important to replace it with a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in an electrical overload. If a proper rated fuse continues to blow, it indicates a problem that should be corrected.
