Symbols

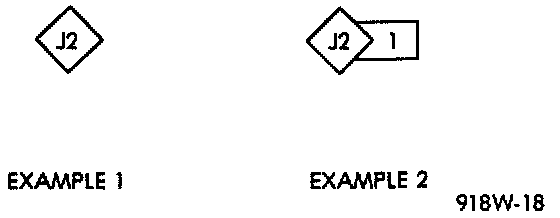

Wiring Splice Examples:

Splice locations are indicated in the diagrams by a diamond with a splice circuit code within it (example 1). If there is more than one splice per circuit a small box will be connected to it with the splice number in it (example 2).

To locate a splice in the wiring harness determine the splice number from the diagrams then refer to Locations/Splices. This section shows the general location of the splice in the harness.
