Controls & Solenoids

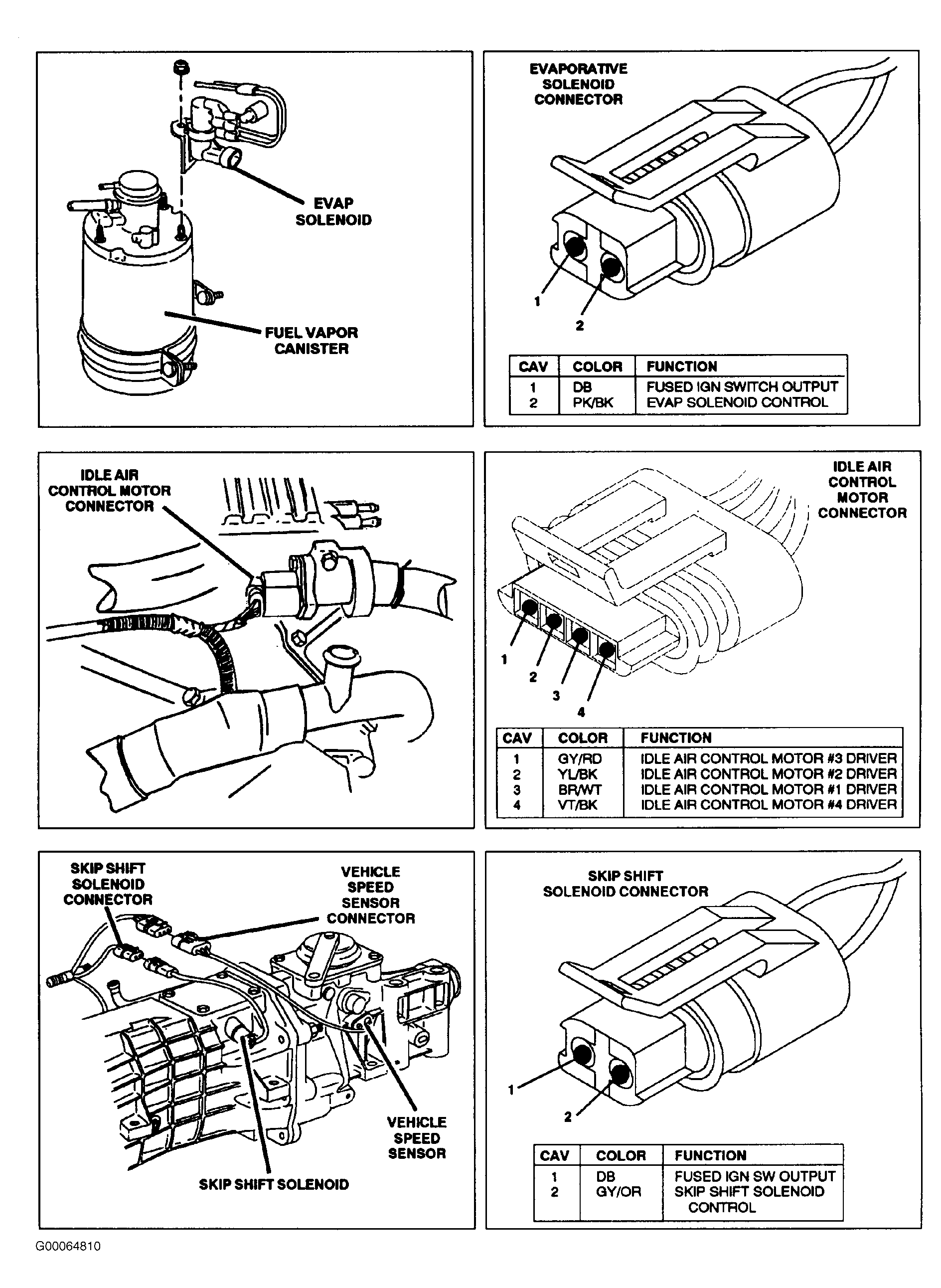

Fig 1: Controls & Solenoids
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
