TC-10A: Right O2S Below Center (Lean)

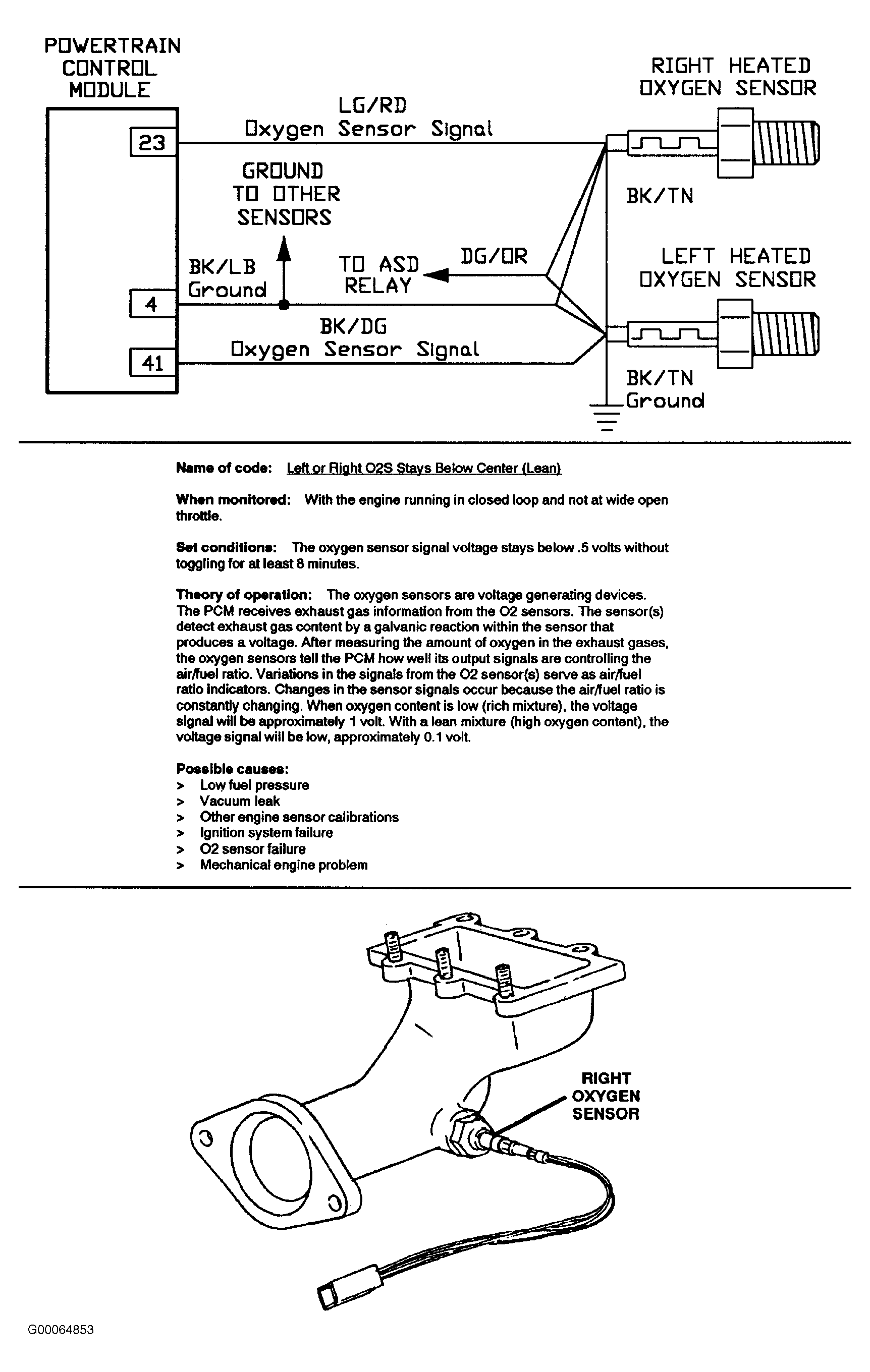

Fig 1: TC-10A: Right O2S Below Center (Lean) (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

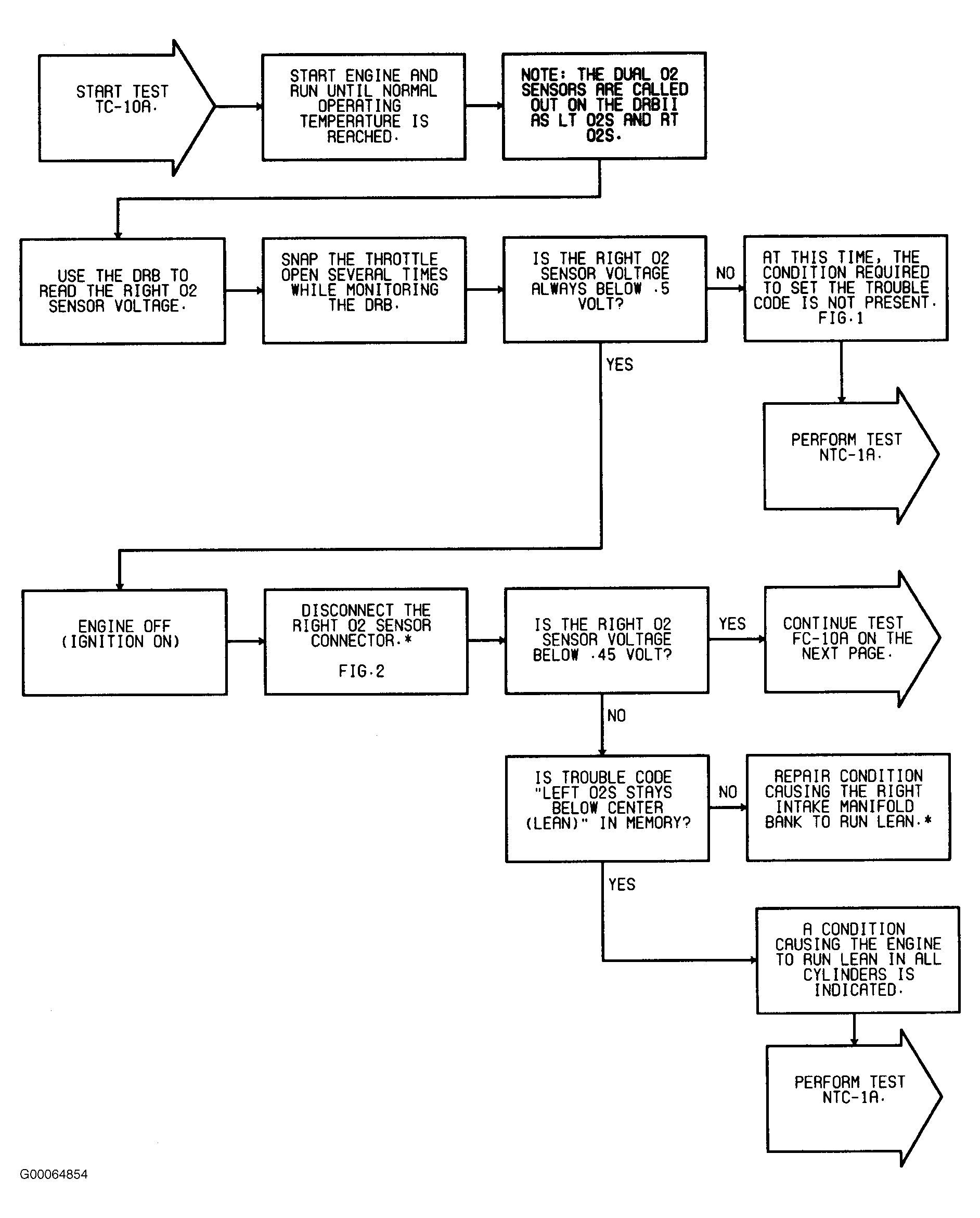

Fig 2: TC-10A: Right O2S Below Center (Lean) (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

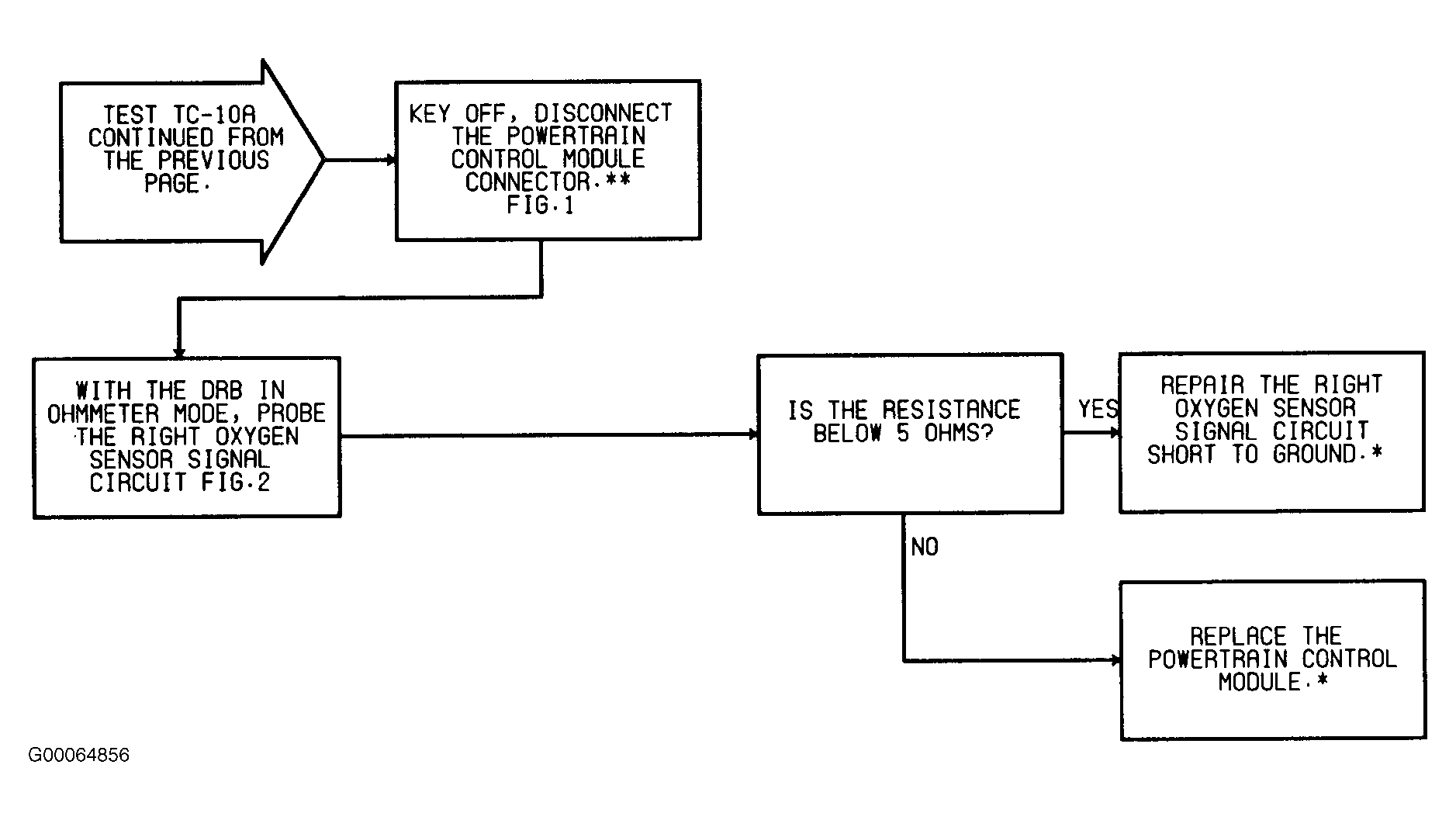

Fig 3: TC-10A: Right O2S Below Center (Lean) (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

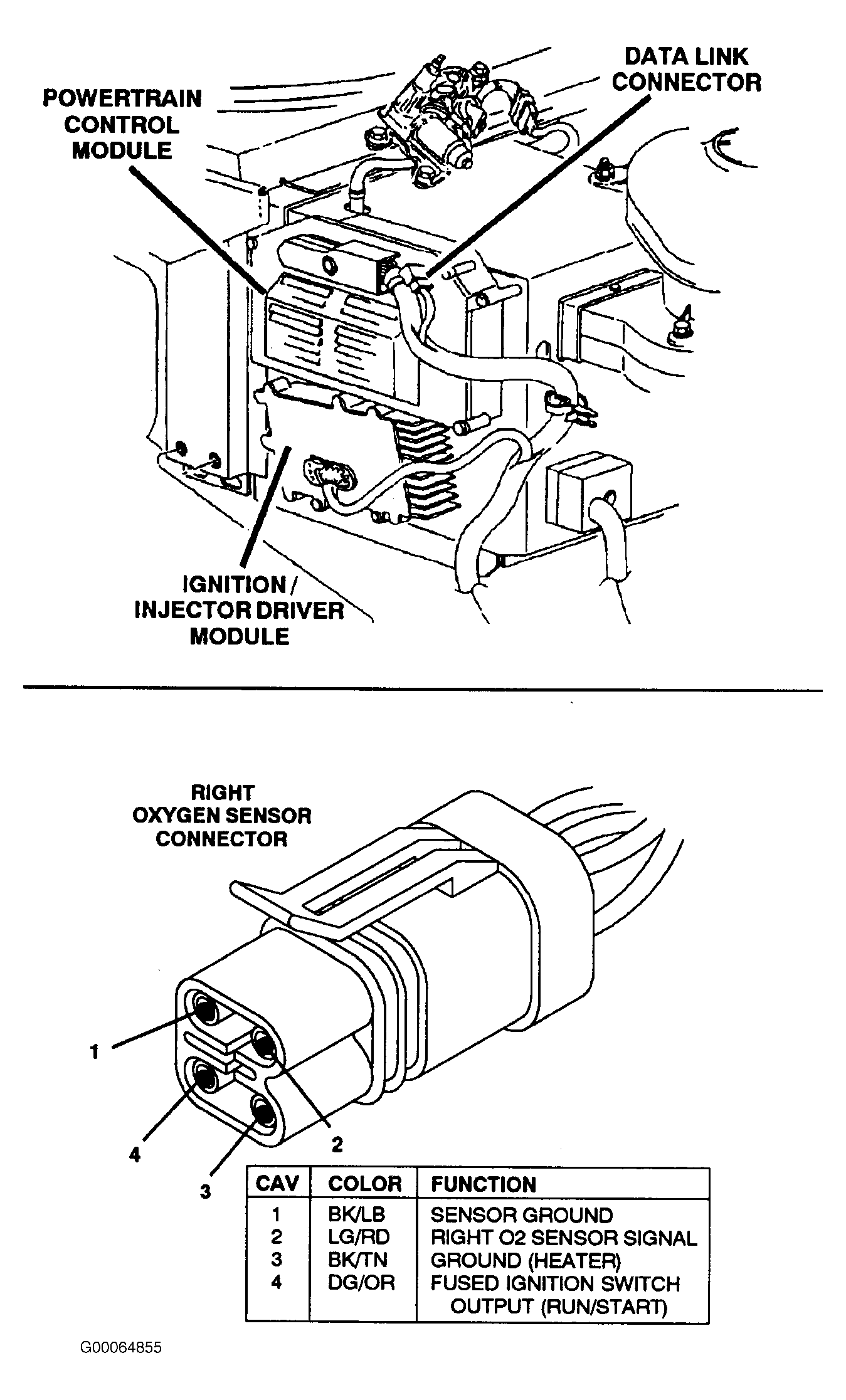

Fig 4: TC-10A: Right O2S Below Center (Lean) (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
