TC-14A: Left O2S Below Center (Lean)

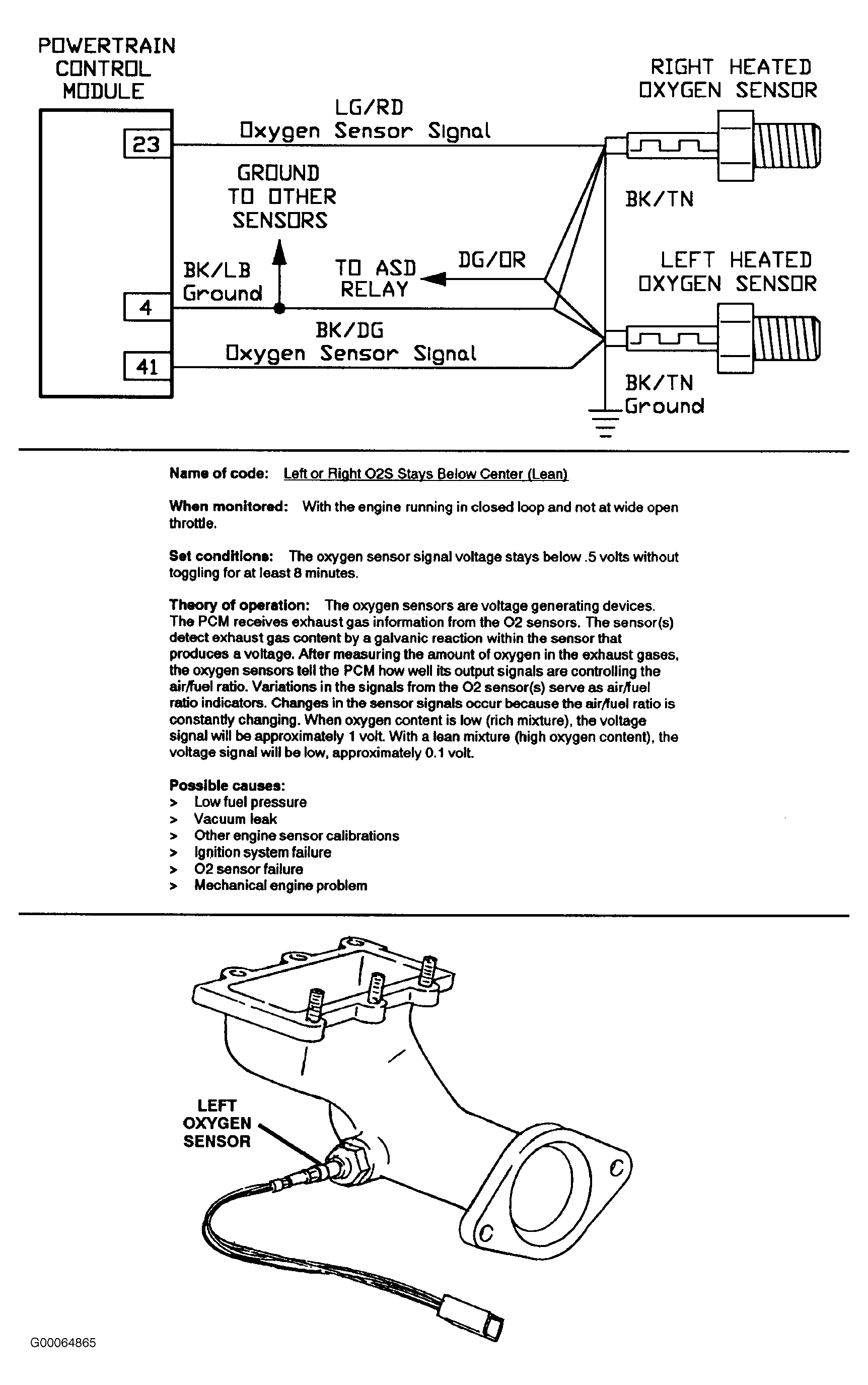

Fig 1: TC-14A: Left O2S Below Center (Lean) (1 Of 4)
G00064865Courtesy of DAIMLERCHRYSLER CORPORATION

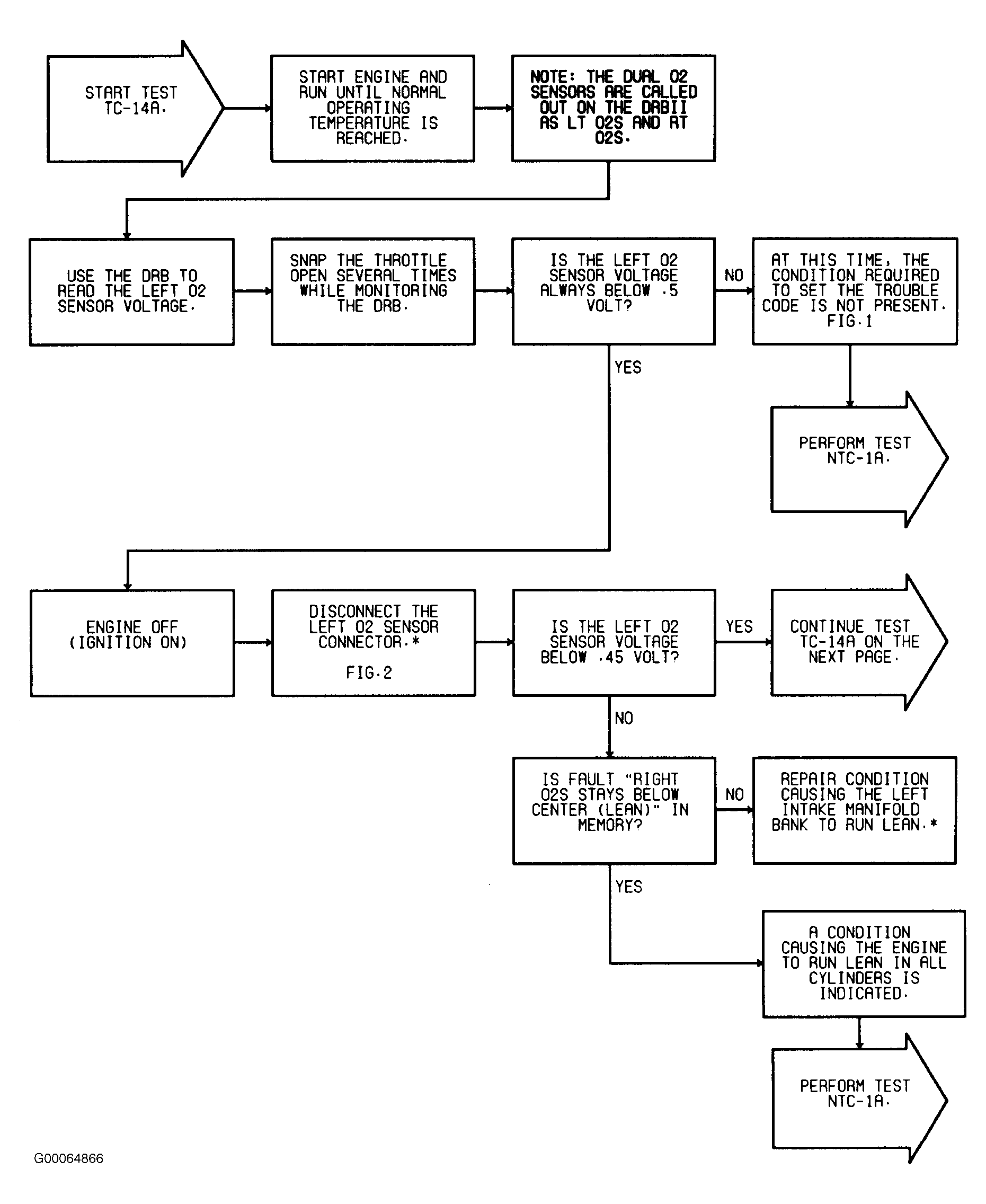

Fig 2: TC-14A: Left O2S Below Center (Lean) (2 Of 4)
G00064866Courtesy of DAIMLERCHRYSLER CORPORATION

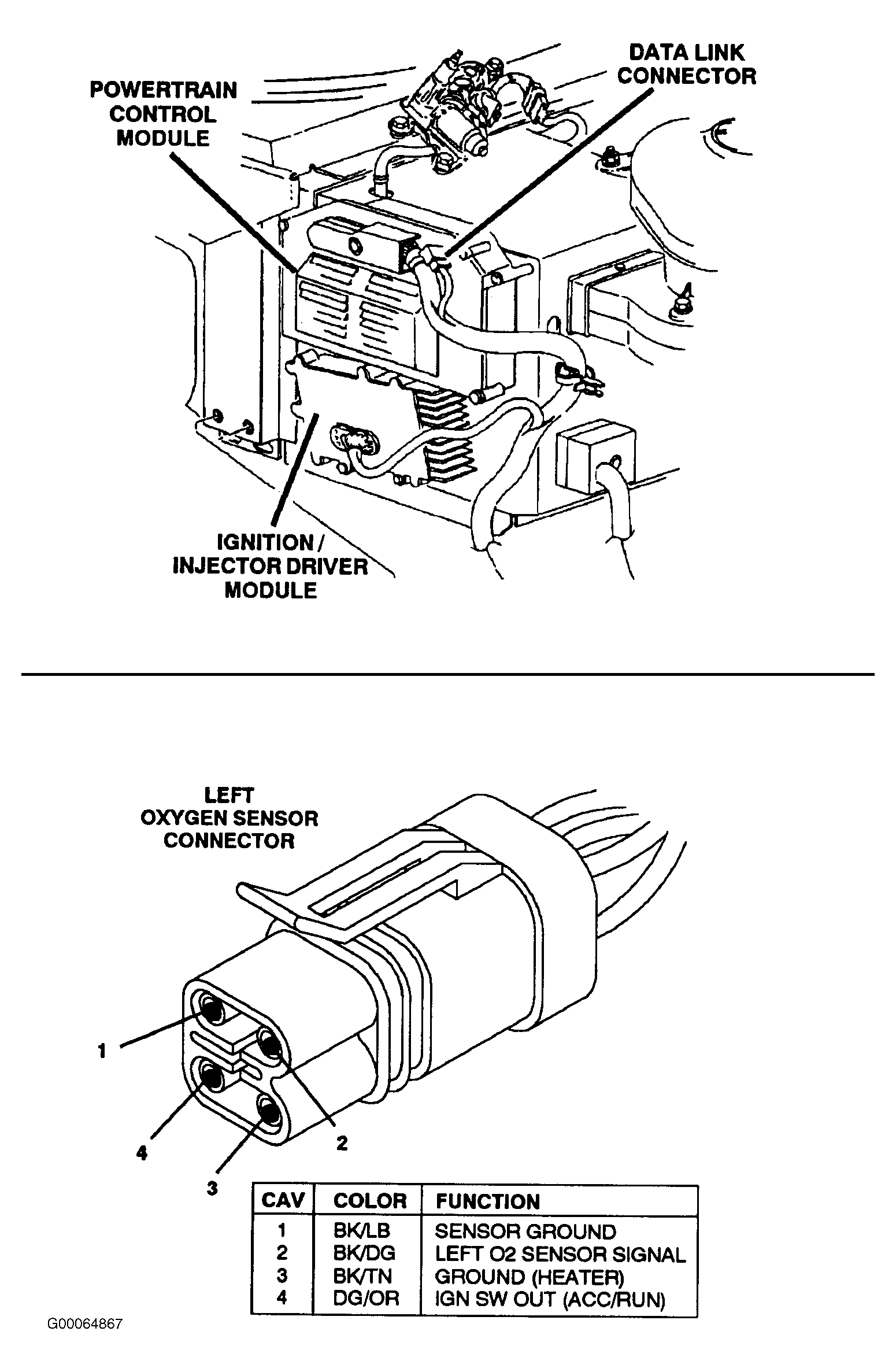

Fig 3: TC-14A: Left O2S Below Center (Lean) (3 Of 4)
G00064867Courtesy of DAIMLERCHRYSLER CORPORATION

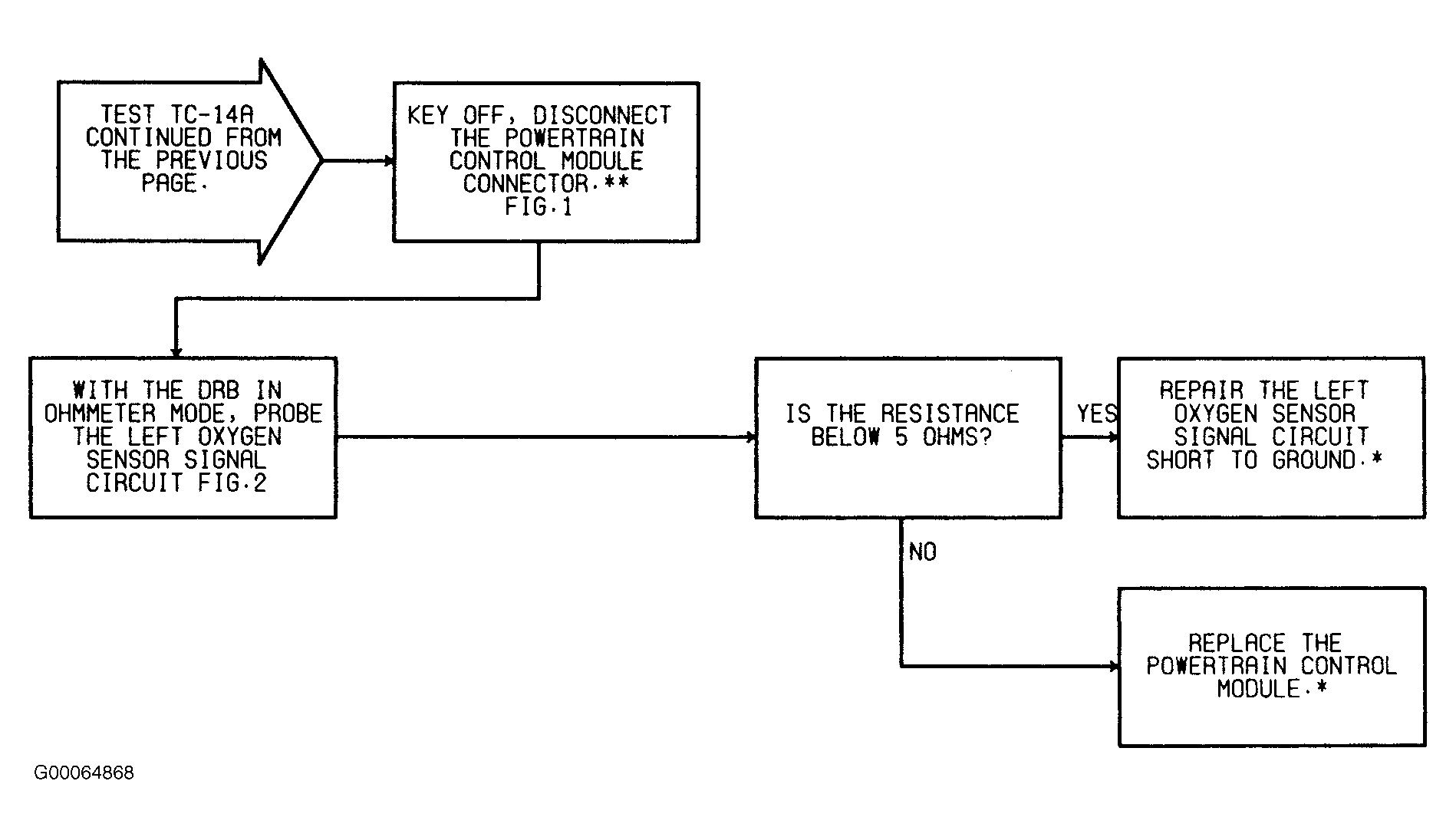

Fig 4: TC-14A: Left O2S Below Center (Lean) (4 Of 4)
G00064868Courtesy of DAIMLERCHRYSLER CORPORATION
