TC-1A: Checking System For Trouble Codes

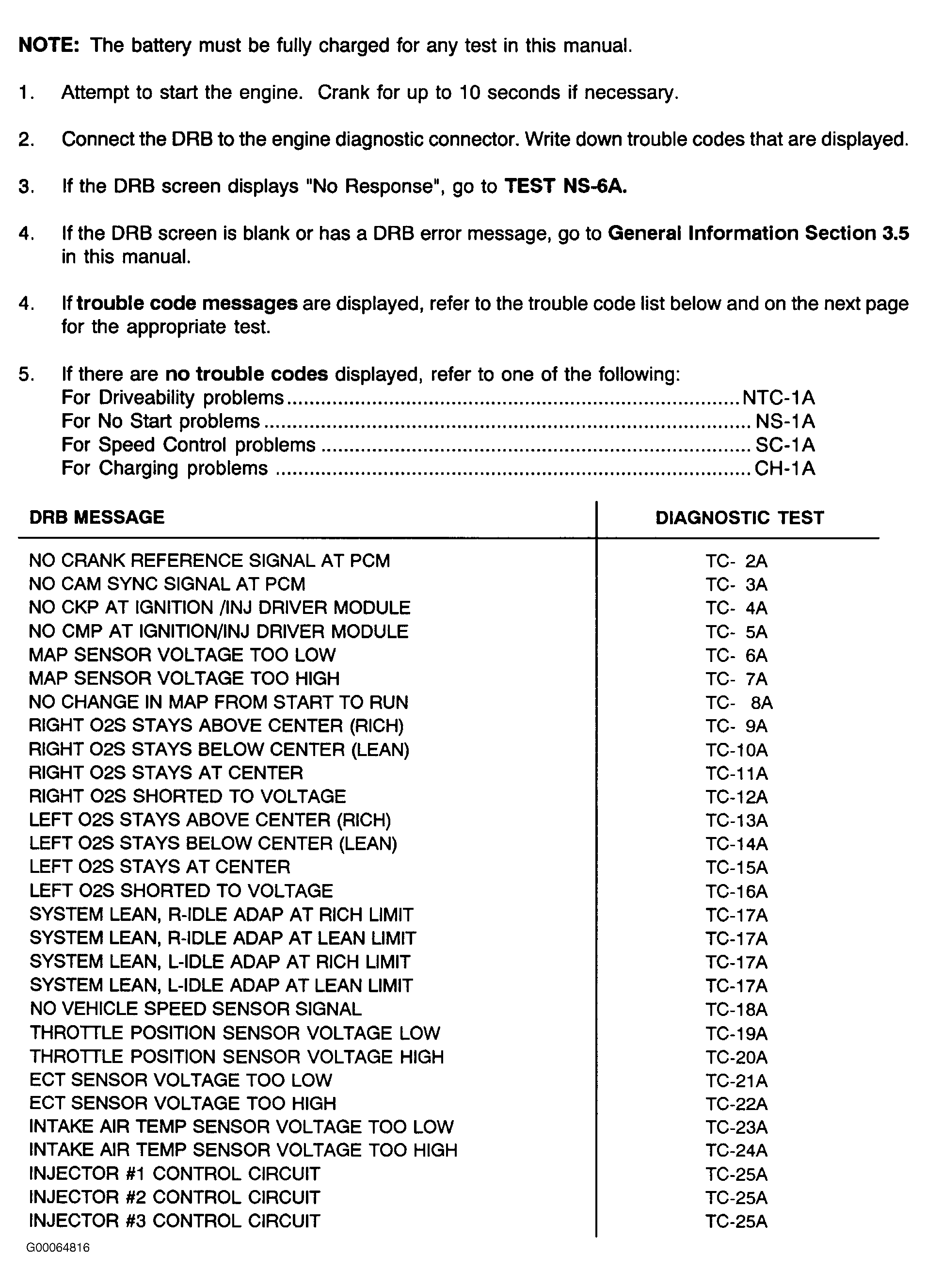

Fig 1: TC-1A: Checking System For Trouble Codes (1 Of 2)
G00064816Courtesy of DAIMLERCHRYSLER CORPORATION

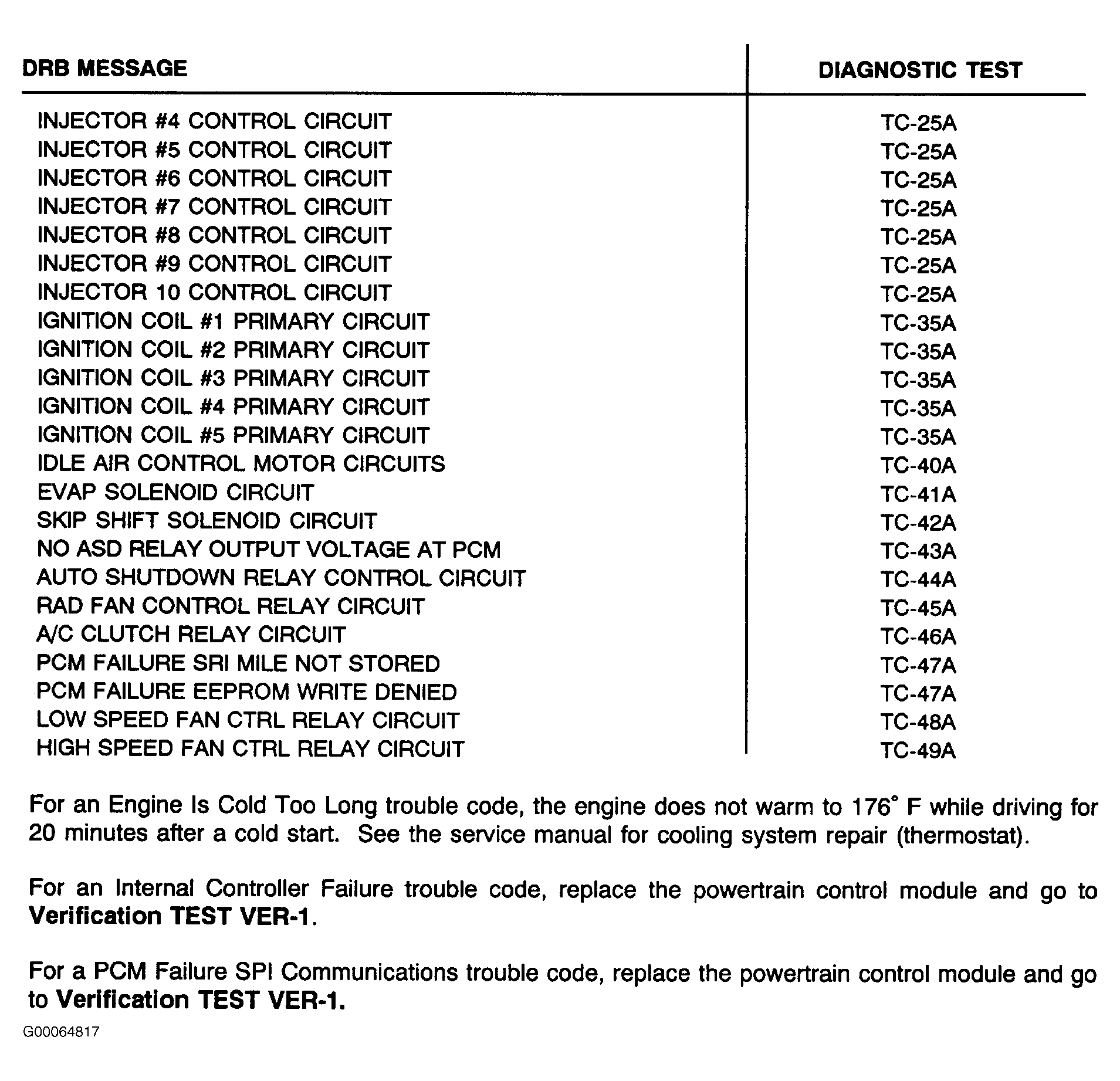

Fig 2: TC-1A: Checking System For Trouble Codes (2 Of 2)
G00064817Courtesy of DAIMLERCHRYSLER CORPORATION
