TC-31A: Injector No. 7 Control Circuit

NOTE: Perform Test TC-25A Before Proceeding

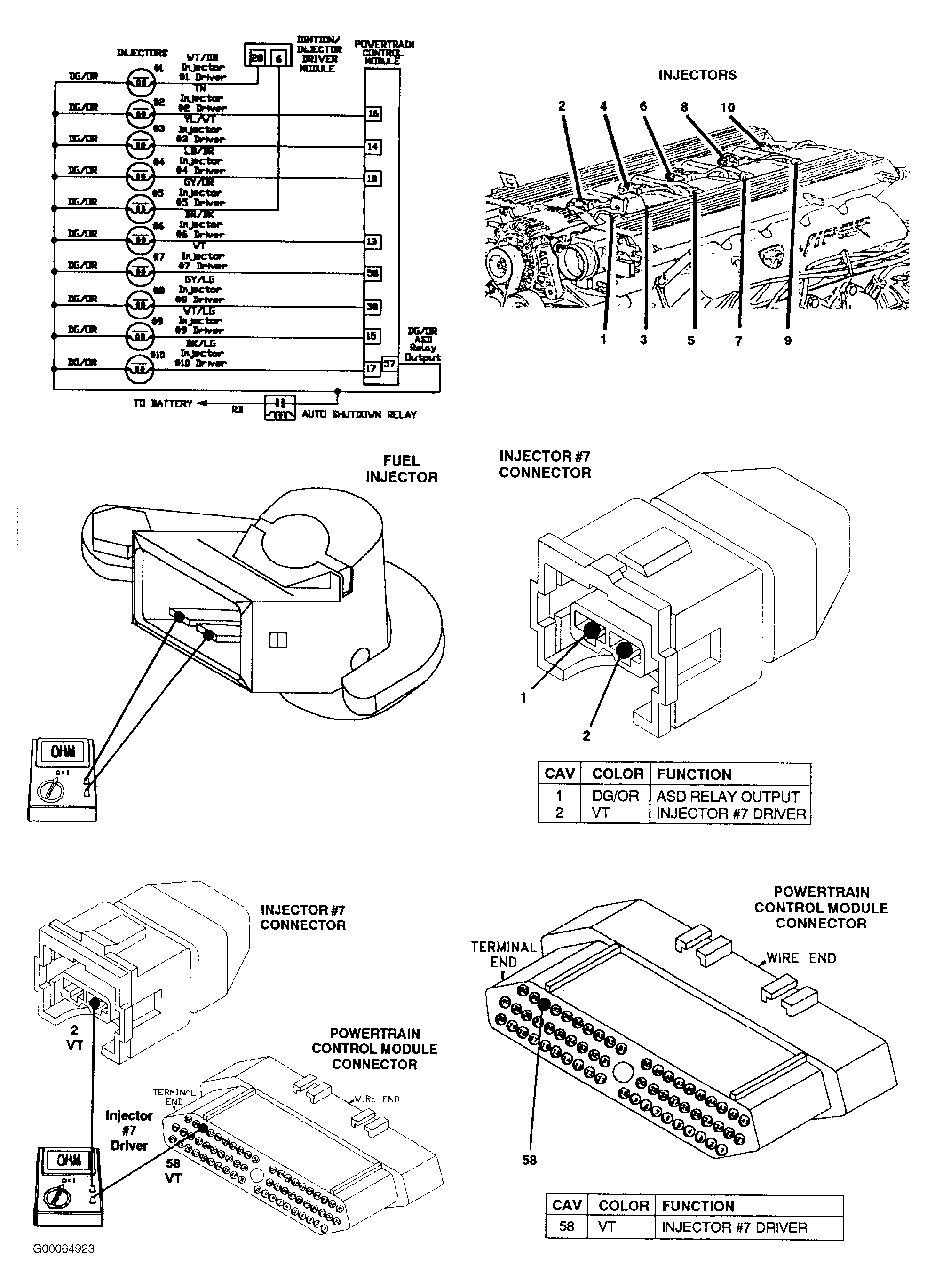

Fig 1: TC-31A: Injector No. 7 Control Circuit (1 Of 2)
G00064923Courtesy of DAIMLERCHRYSLER CORPORATION

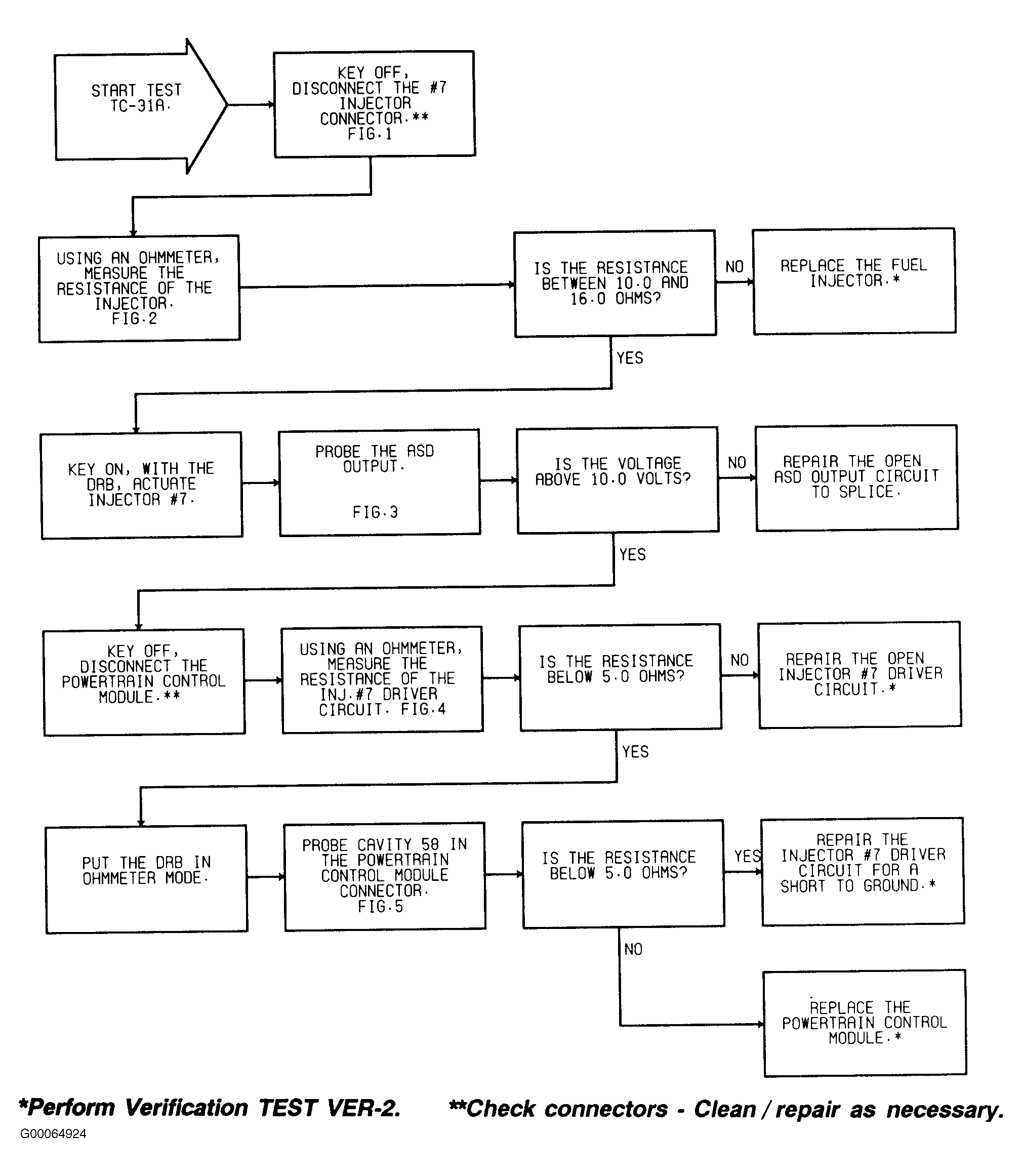

Fig 2: TC-31A: Injector No. 7 Control Circuit (2 Of 2)
G00064924Courtesy of DAIMLERCHRYSLER CORPORATION
