TC-44A: Auto Shutdown Relay Control Circuit

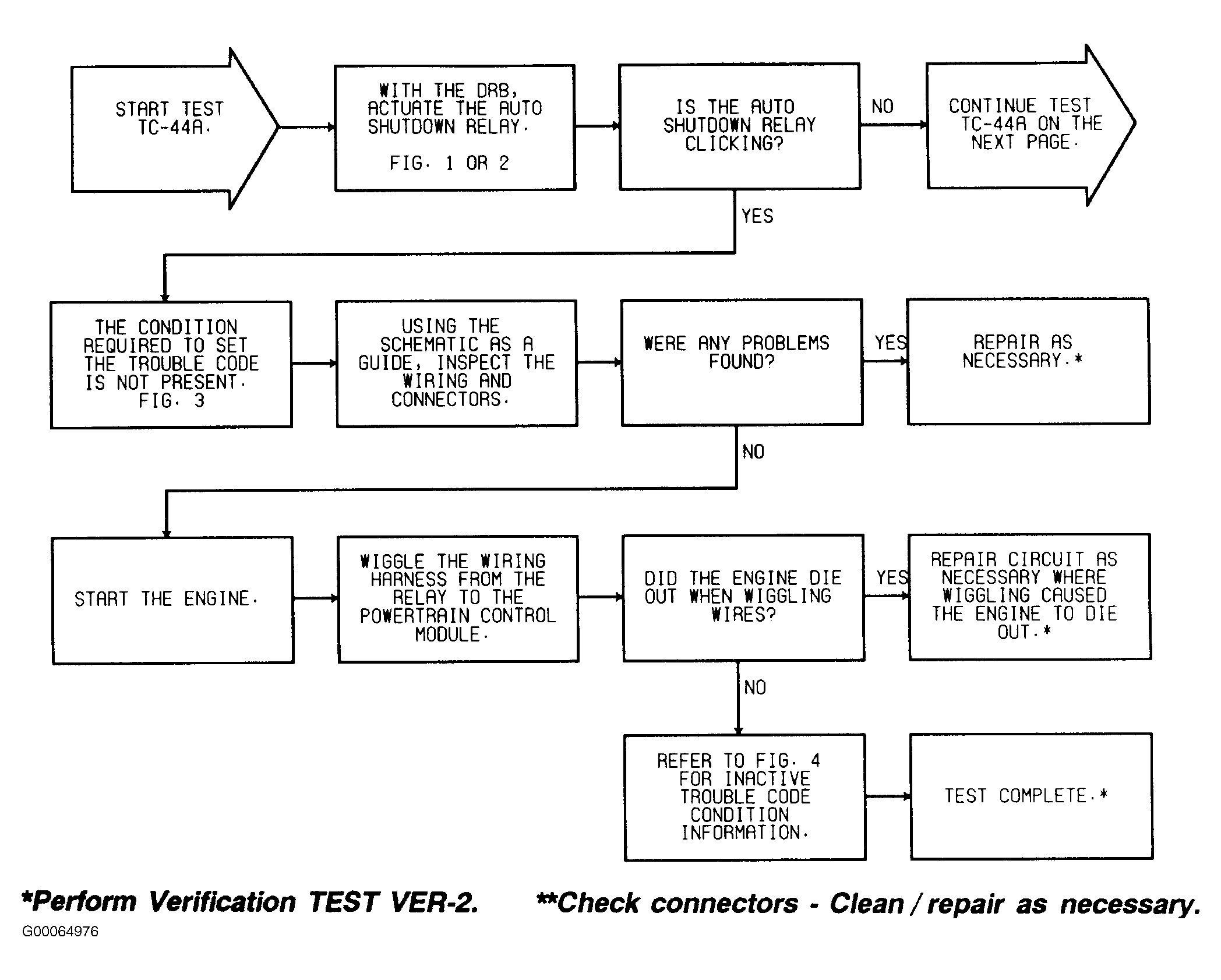

Fig 1: TC-44A: Auto Shutdown Relay Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

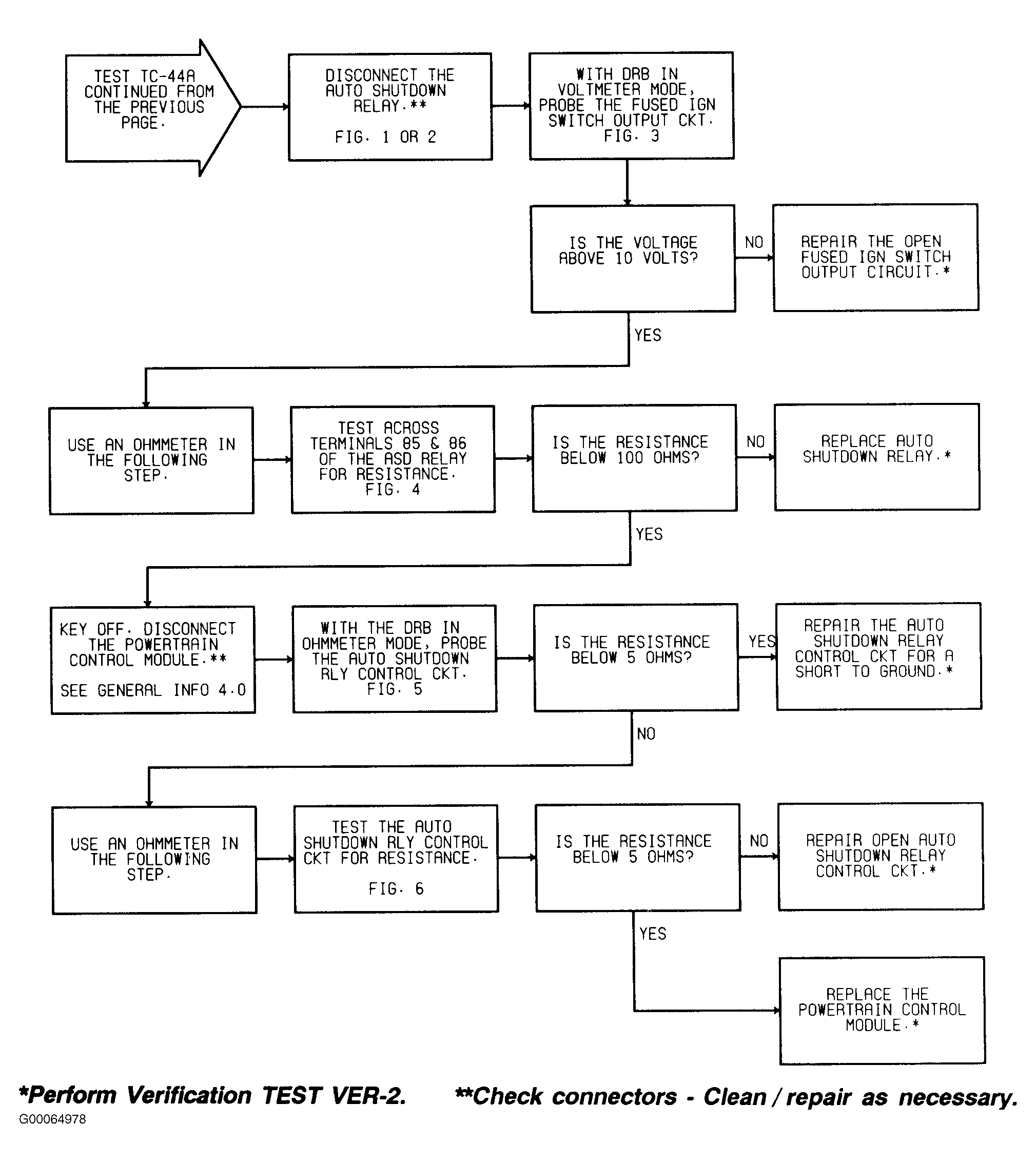

Fig 2: TC-44A: Auto Shutdown Relay Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

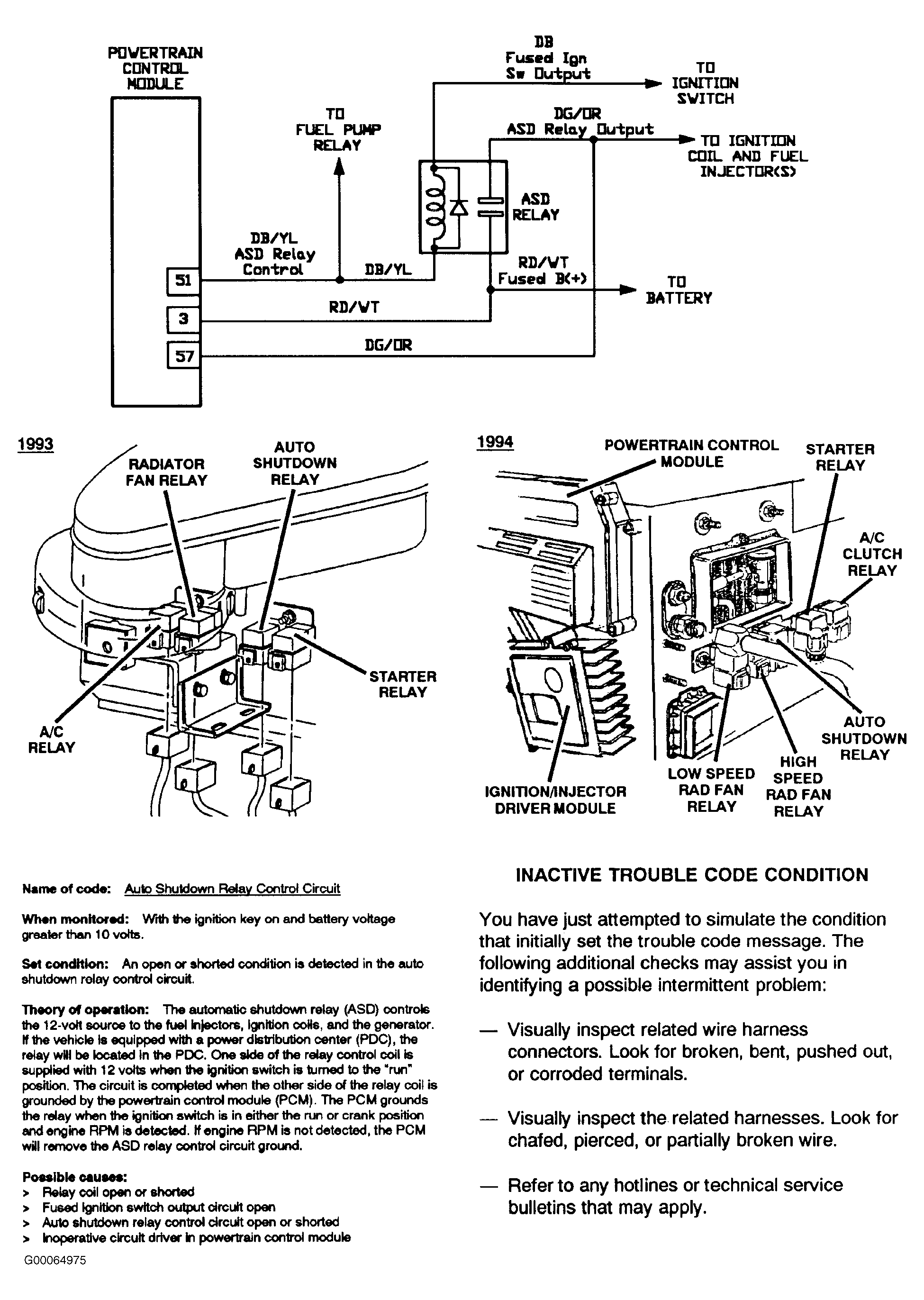

Fig 3: TC-44A: Auto Shutdown Relay Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

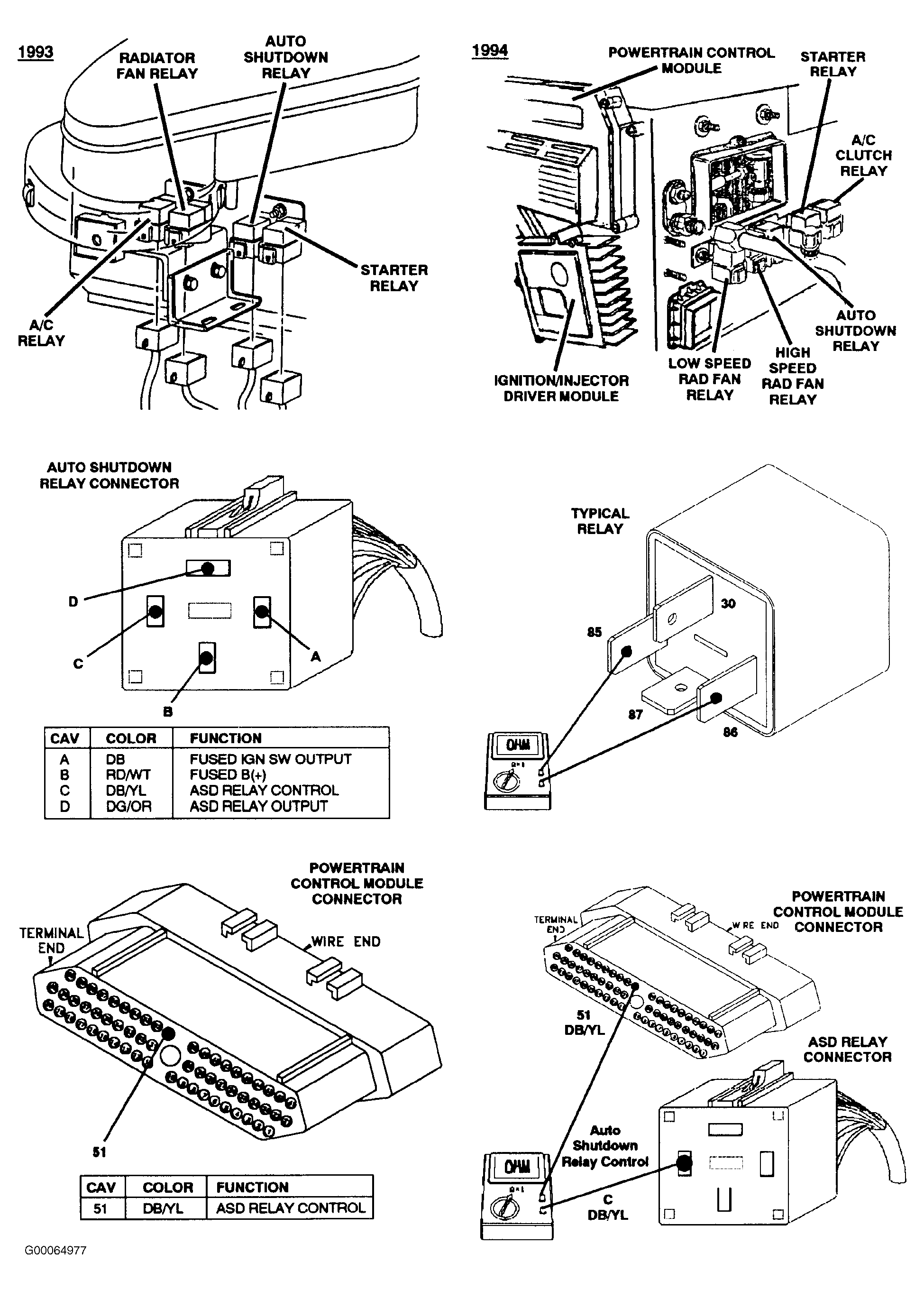

Fig 4: TC-44A: Auto Shutdown Relay Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
