NTC-3A: Checking Fuel Pressure

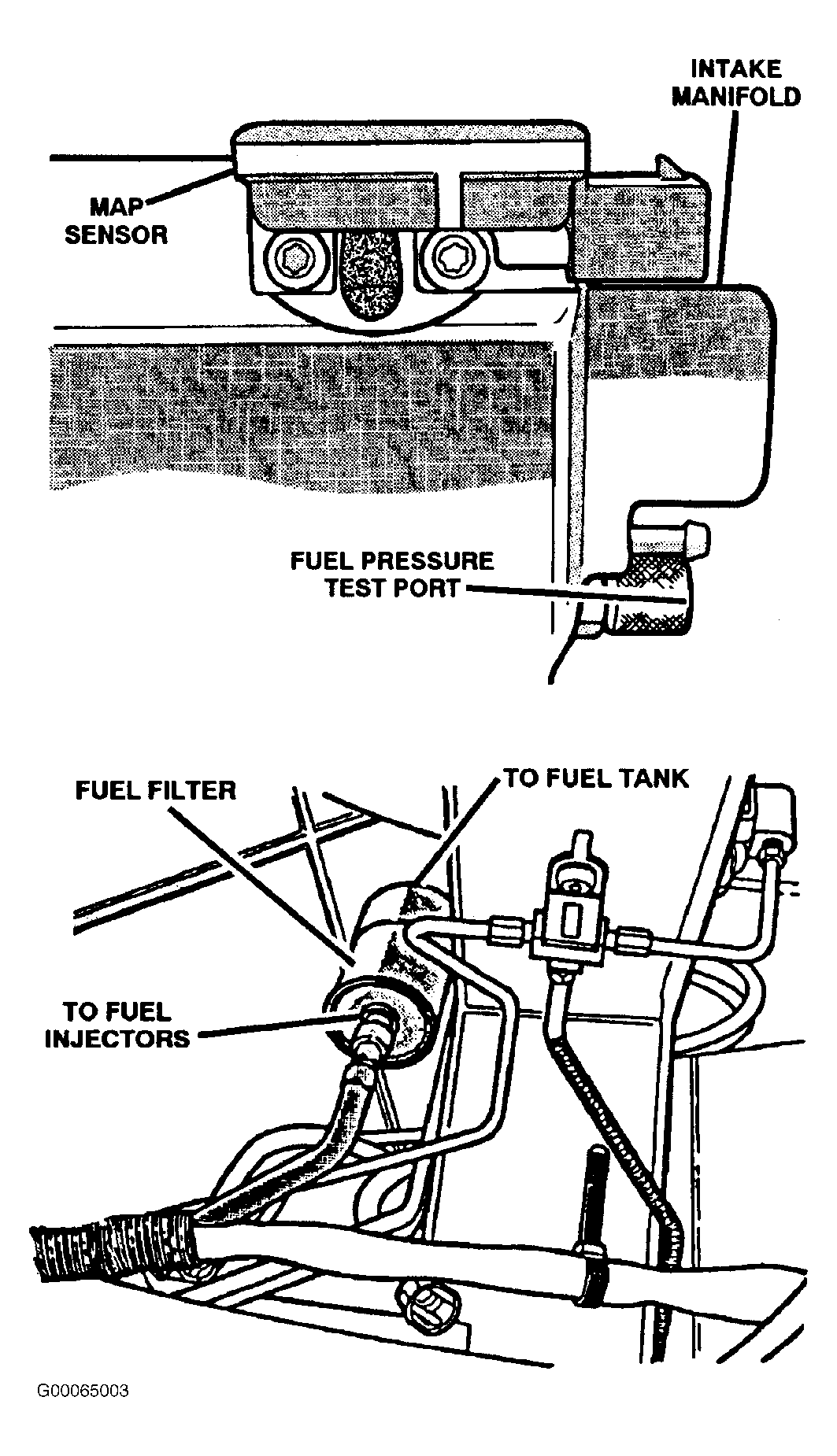

Fig 1: NTC-3A: Checking Fuel Pressure (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORPORATION

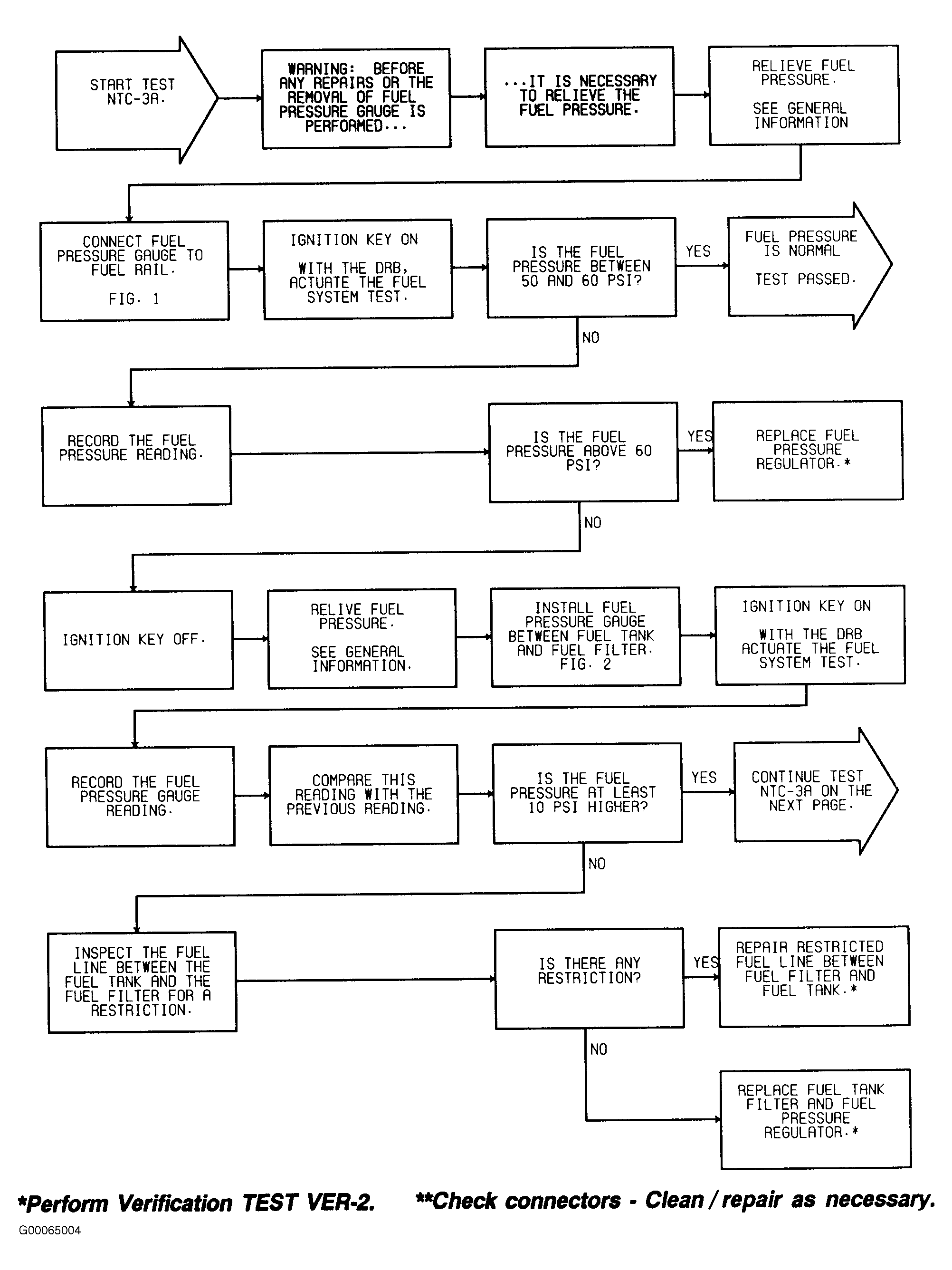

Fig 2: NTC-3A: Checking Fuel Pressure (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORPORATION

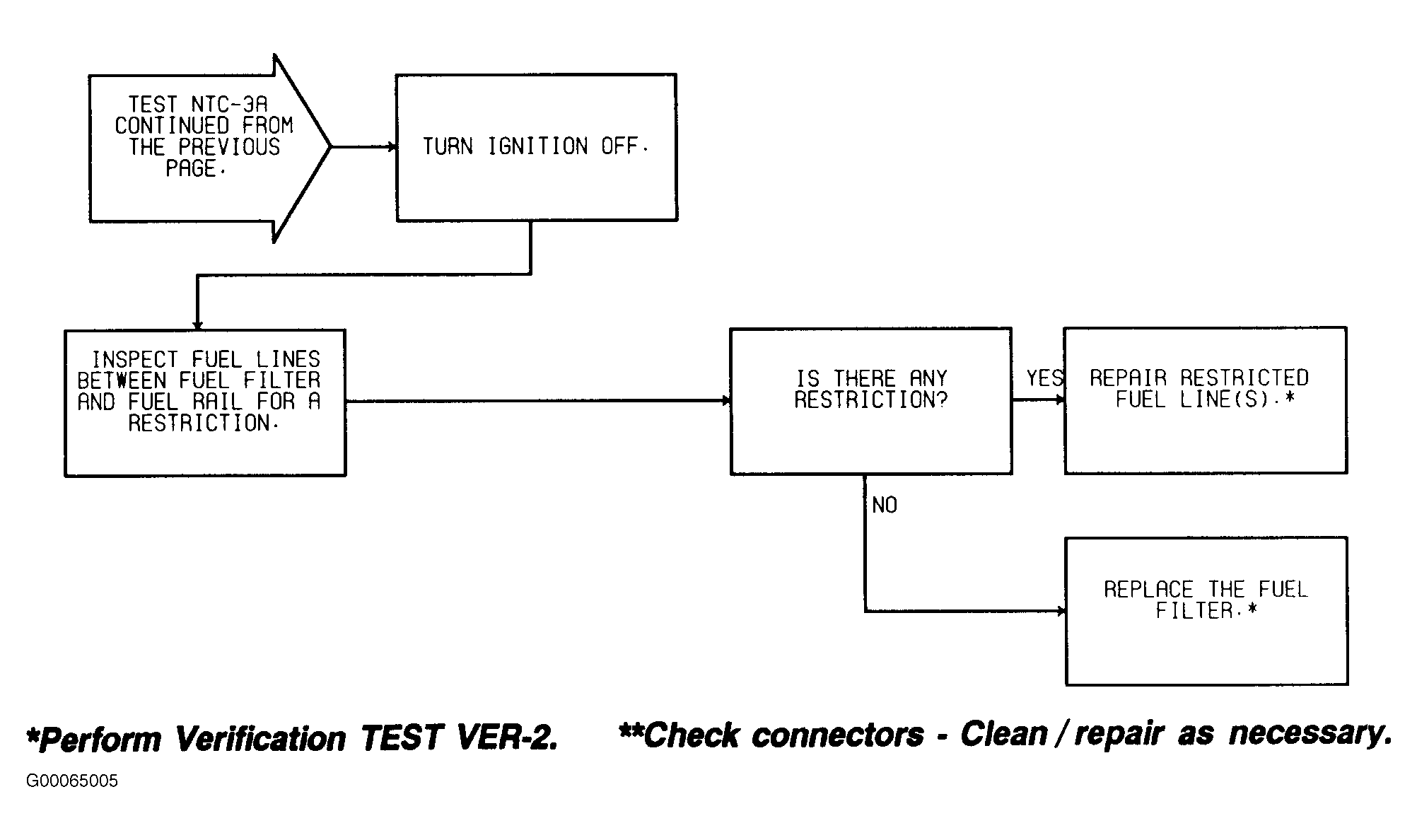

Fig 3: NTC-3A: Checking Fuel Pressure (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
