Fuel Pump: Installation
WARNING: This page is about a different variant/trim than selected.

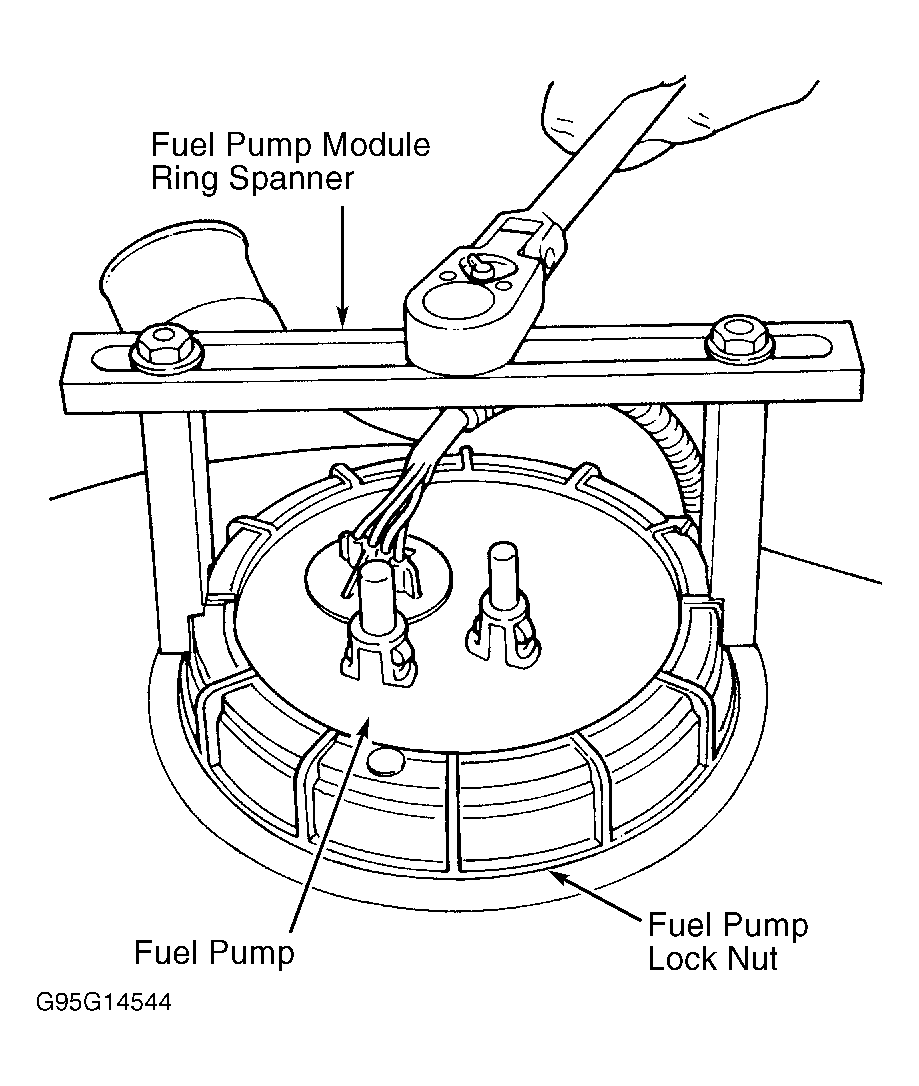

Position a NEW "O" ring on ledge between fuel tank threads and fuel pump opening. Insert fuel pump into fuel tank. Ensure fuel pump alignment tab sits in notch in fuel tank. Using Fuel Pump Module Ring Spanner (6856), tighten fuel pump lock nut. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
