Test TC-15A: Repairing - Speed Control Power Relay Circuit & Speed Control Solenoid Circuits 2.0L

WARNING: This page is about a different variant/trim than selected.

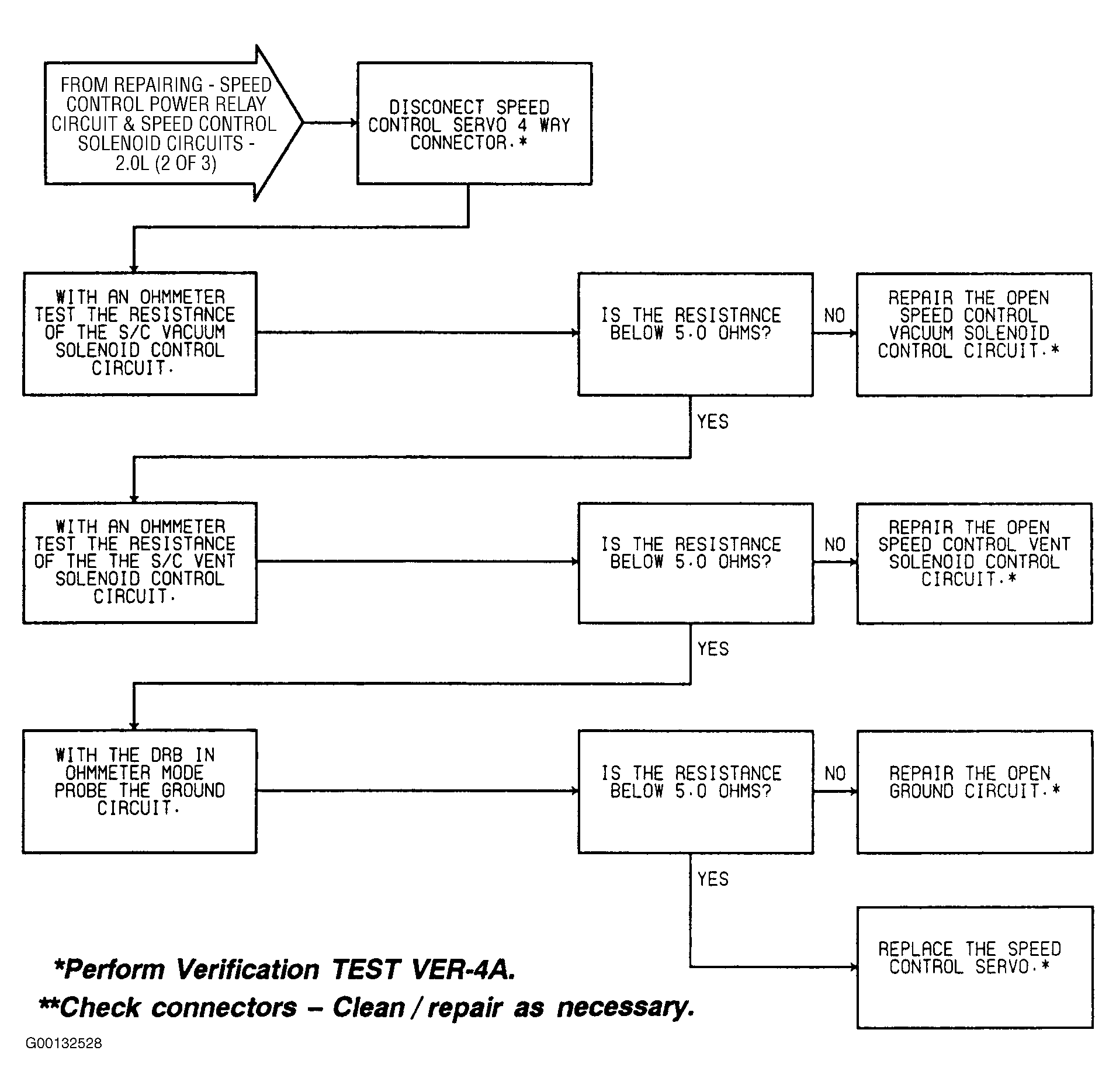

Fig 1: Repairing - Speed Control Power Relay Circuit & Speed Control Solenoid Circuits - 2.0L (1 of 3)

Courtesy of CHRYSLER CORP.

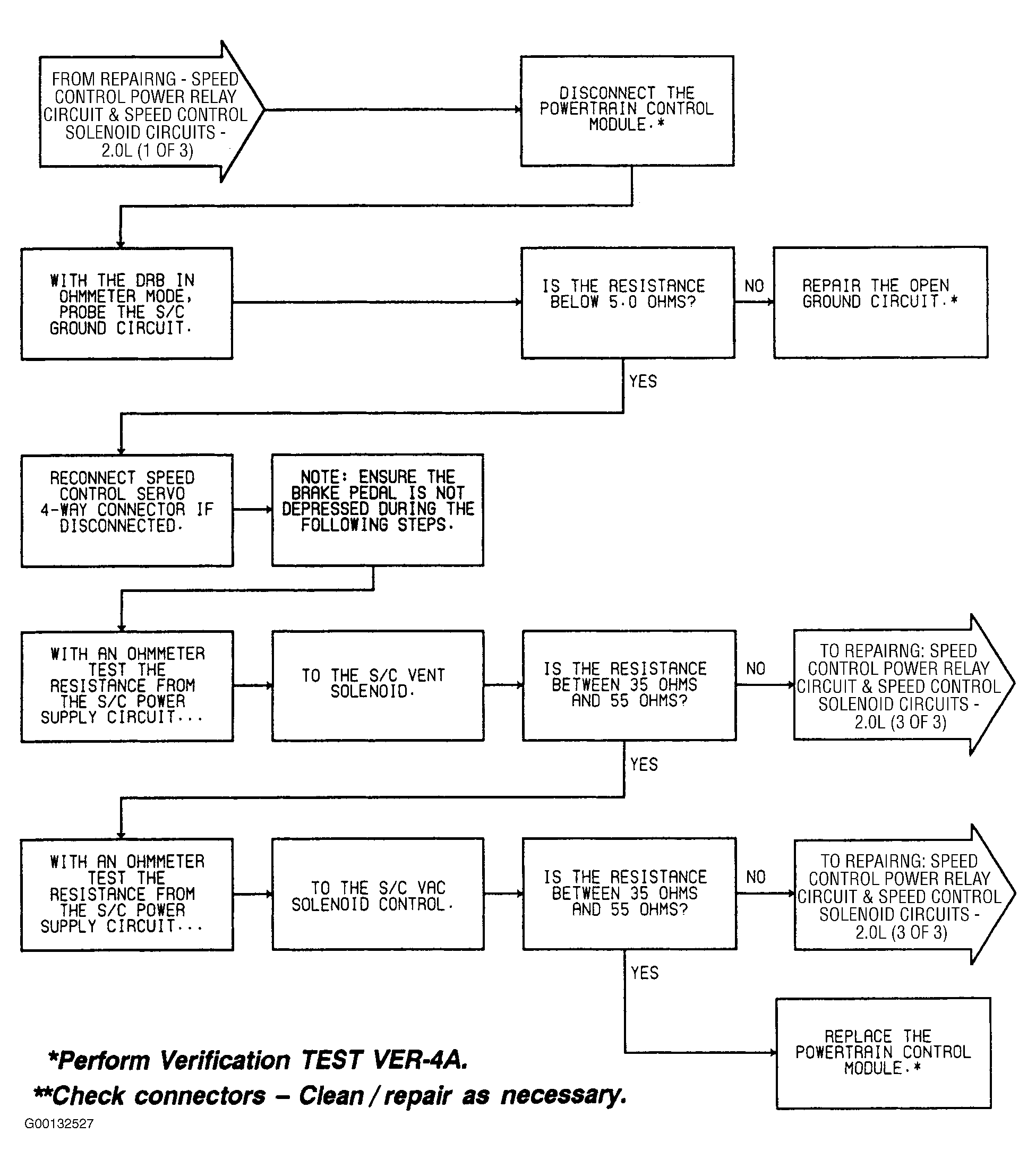

Fig 2: Repairing - Speed Control Power Relay Circuit & Speed Control Solenoid Circuits - 2.0L (2 of 3)

Courtesy of CHRYSLER CORP.

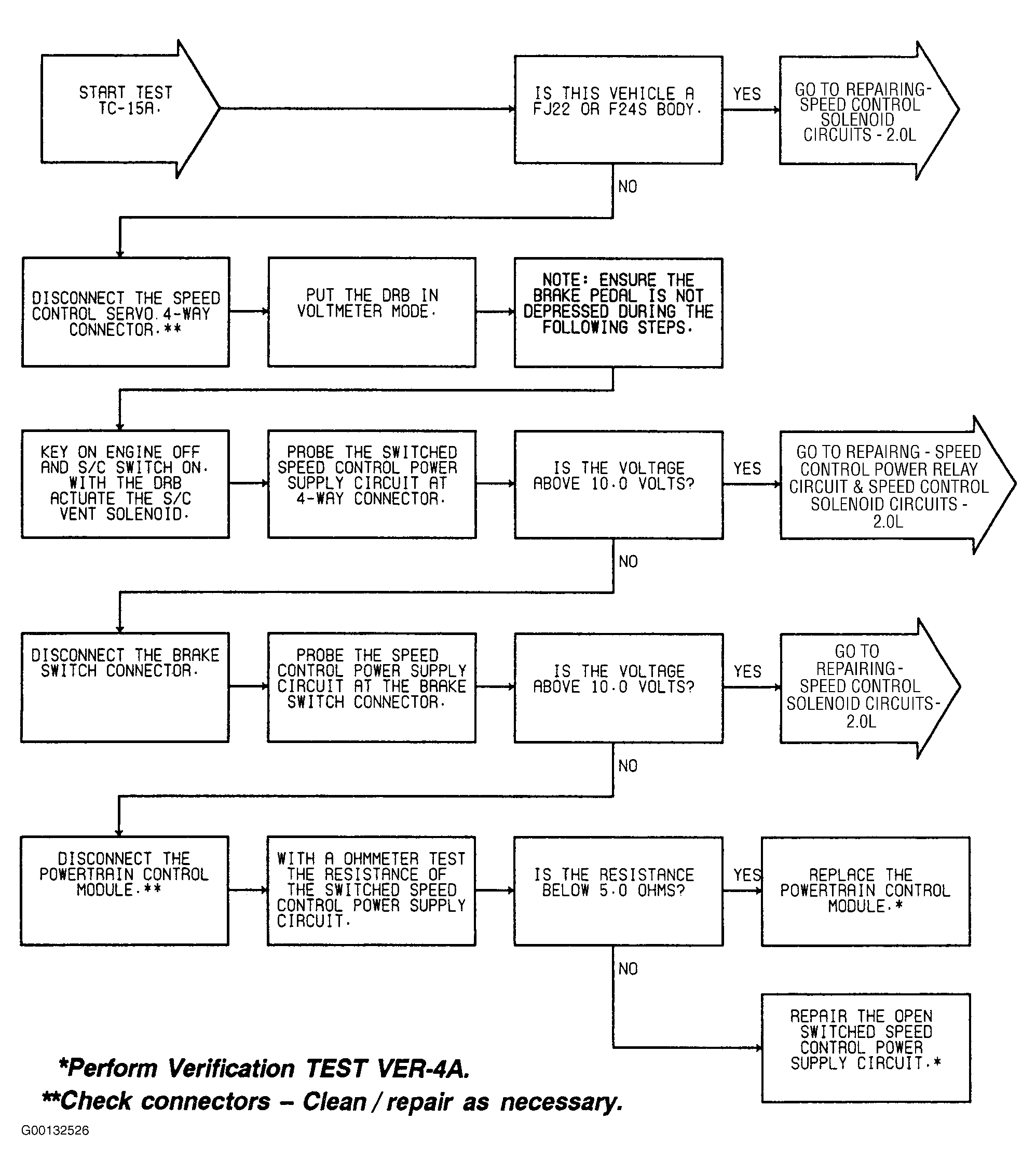

Fig 3: Repairing - Speed Control Power Relay Circuit & Speed Control Solenoid Circuits - 2.0L (3 of 3)

Courtesy of CHRYSLER CORP.
