Connector Identification

NOTE: For terminal identification of body control system connectors, see Fig 1 -Fig 18 . Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.
CONNECTOR IDENTIFICATION DIRECTORY

Connector See Fig.
Body Control Module Connector 1
Compass Mini-Trip Computer 16
Data Link Connector (DLC) 2
Door Speaker Connector 3
Headlight 8-Pin Connector 4
Headlight Connector 5
HVAC Control Module Connector (Blue) 6
Ignition Switch Connector 7
Information Center Connector 5
Instrument Cluster Connector 8
Junction Block Connector (Typical) 9
Junction Block Internal Connector 10
Multifunction Switch Connector Terminals 11
Powertrain Control Module Connectors 12
Radio Connector (Typical) 13
Rear Speaker Connector 14
Relay Connector 15
Remote Keyless Entry (RKE) Module Connector 16
Transmission Control Module Connector 17
Wiper Motor Connector 18
Fig 1: Identifying Body Control Module Connector Terminals
G95F35480Courtesy of CHRYSLER CORP.
Fig 2: Identifying Data Link Connector (DLC) Terminals
G95H14289Courtesy of CHRYSLER CORP.

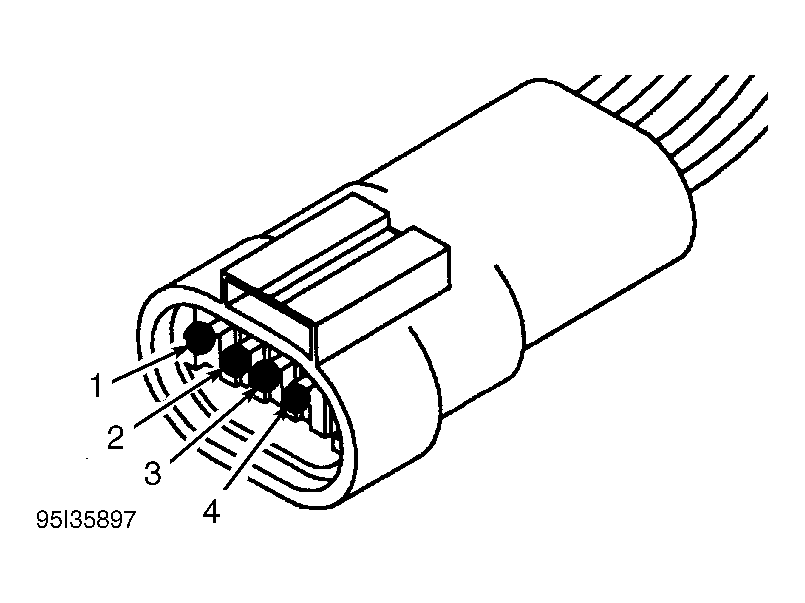

Fig 3: Identifying Door Speaker Connector Terminals
G95I35897Courtesy of CHRYSLER CORP.
Fig 4: Identifying Headlight 8-Pin Connector Terminals
G95G35887Courtesy of CHRYSLER CORP.
Fig 5: Identifying Headlight Connector Terminals & Information Center Connector Terminals
G95C35891Courtesy of CHRYSLER CORP.
Fig 6: Identifying HVAC Control Module Connector (Blue) Terminals
G95E35893Courtesy of CHRYSLER CORP.
Fig 7: Identifying Ignition Switch Connector Terminals
G95D35892Courtesy of CHRYSLER CORP.
Fig 8: Identifying Instrument Cluster Connector Terminals
G95A35899Courtesy of CHRYSLER CORP.
Fig 9: Identifying Junction Block Connector Terminals (Typical)
G95D35884Courtesy of CHRYSLER CORP.
Fig 10: Identifying Junction Block Internal Connector Terminals
G95F35894Courtesy of CHRYSLER CORP.
Fig 11: Identifying Multifunction Switch Connector Terminals
G95H35888Courtesy of CHRYSLER CORP.
Fig 12: Identifying Powertrain Control Module Connector Terminals
G95I12680Courtesy of CHRYSLER CORP.

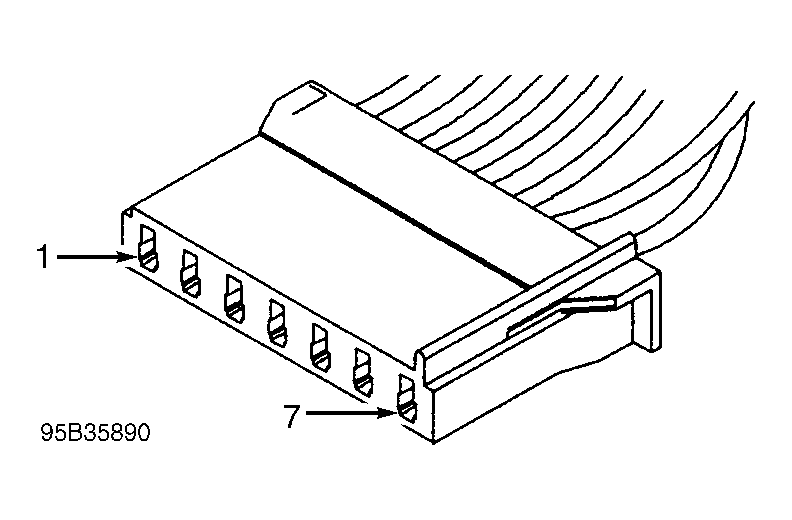

Fig 13: Identifying Radio Connector Terminals (Typical)
G95B35890Courtesy of CHRYSLER CORP.

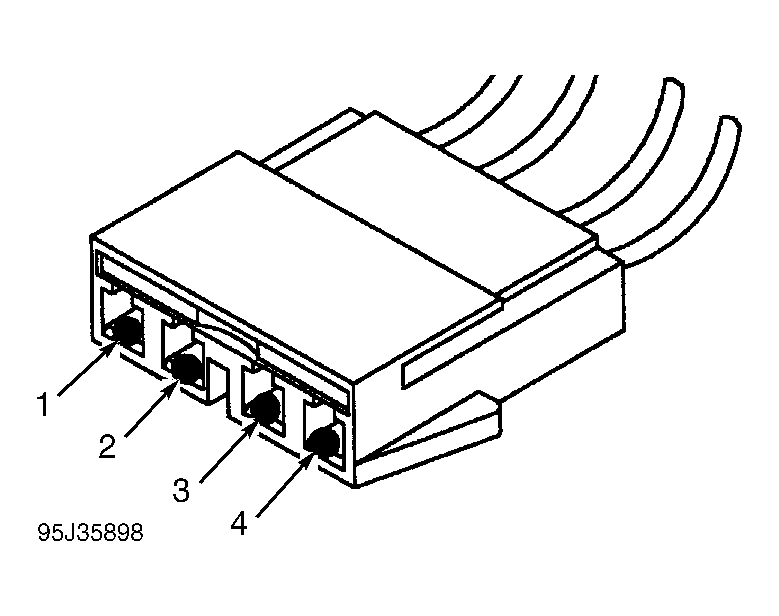

Fig 14: Identifying Rear Speaker Connector Terminals
G95J35898Courtesy of CHRYSLER CORP.
Fig 15: Identifying Relay Connector Terminals
G92C05763Courtesy of CHRYSLER CORP.
Fig 16: Identifying Remote Keyless Entry (RKE) Module Connector Terminals & Compass Mini-Trip Computer
G95F35886Courtesy of CHRYSLER CORP.
Fig 17: Identifying Transmission Control Module Connector Terminals
G92I05780Courtesy of CHRYSLER CORP.
Fig 18: Identifying Wiper Motor Connector Terminals
G95I35889Courtesy of CHRYSLER CORP.
