Camshaft Position Sensor: Installation

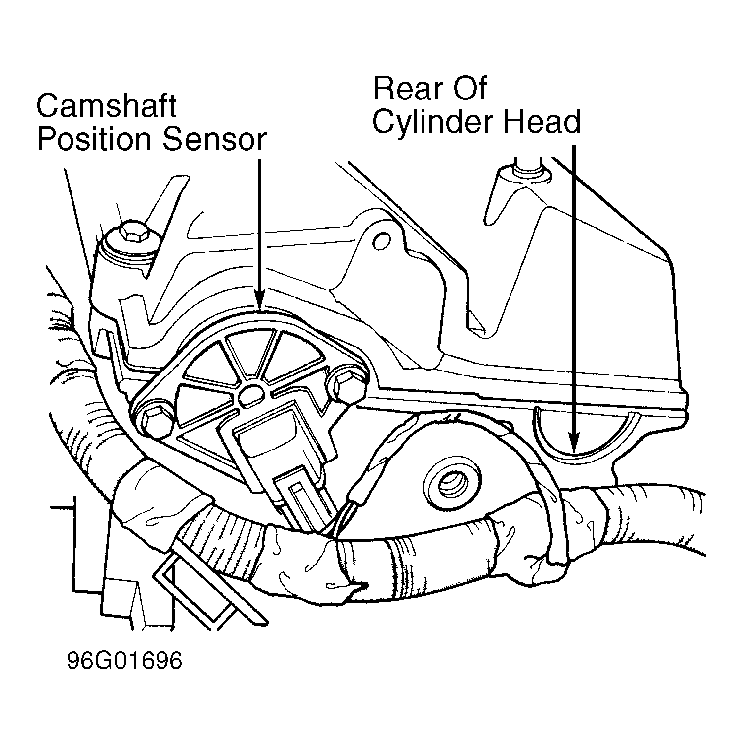

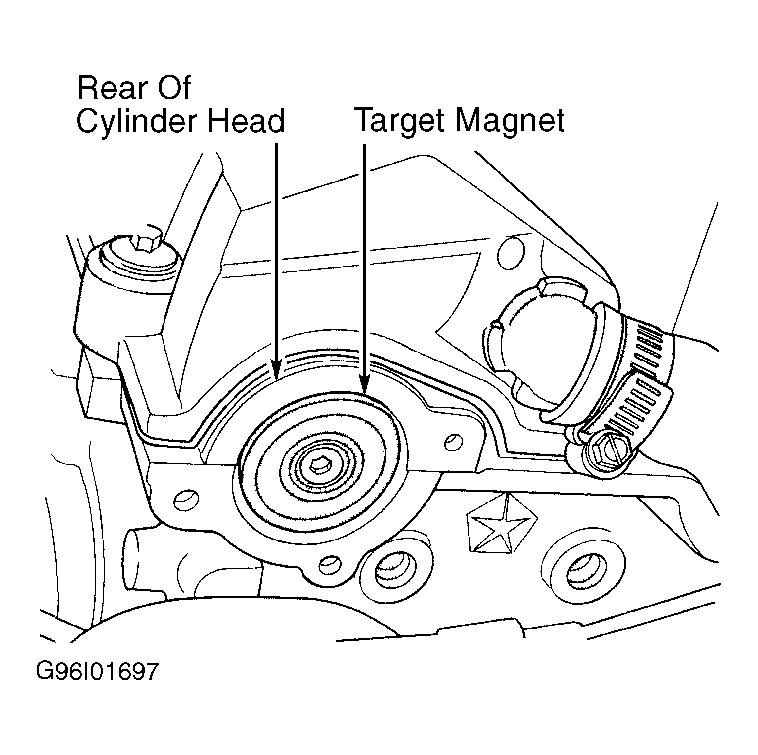

To install, reverse removal procedure. Use NEW "O" ring on camshaft position sensor. Ensure dowels on target magnet engage with holes on end of camshaft. Install and tighten bolts/screws to specification. See TORQUE SPECIFICATIONS .
