Manifold Pressure/Vacuum Sensor: Service and Repair

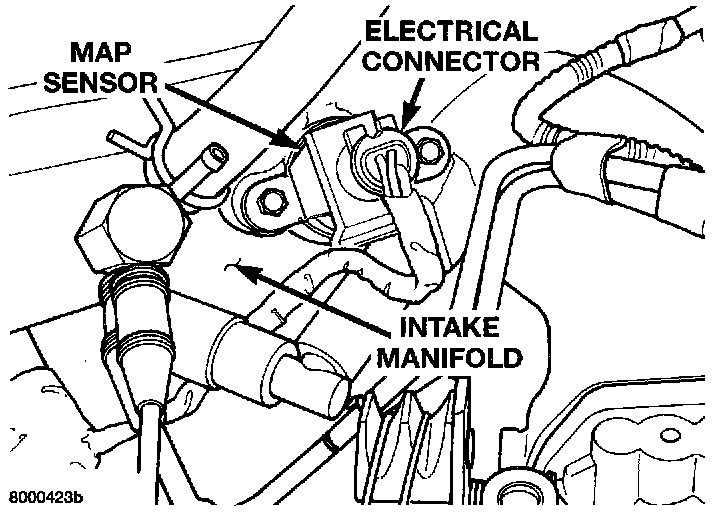

Fig 12 MAP Absolute Pressure Sensor:

REMOVAL
1. Disconnect electrical connector from MAP sensor (Fig. 12).
2. Remove two screws holding sensor to the intake manifold.

INSTALLATION
1. Reverse the above procedure for installation.
