TC-105A: 1/2 O2 Sensor Heater Failure

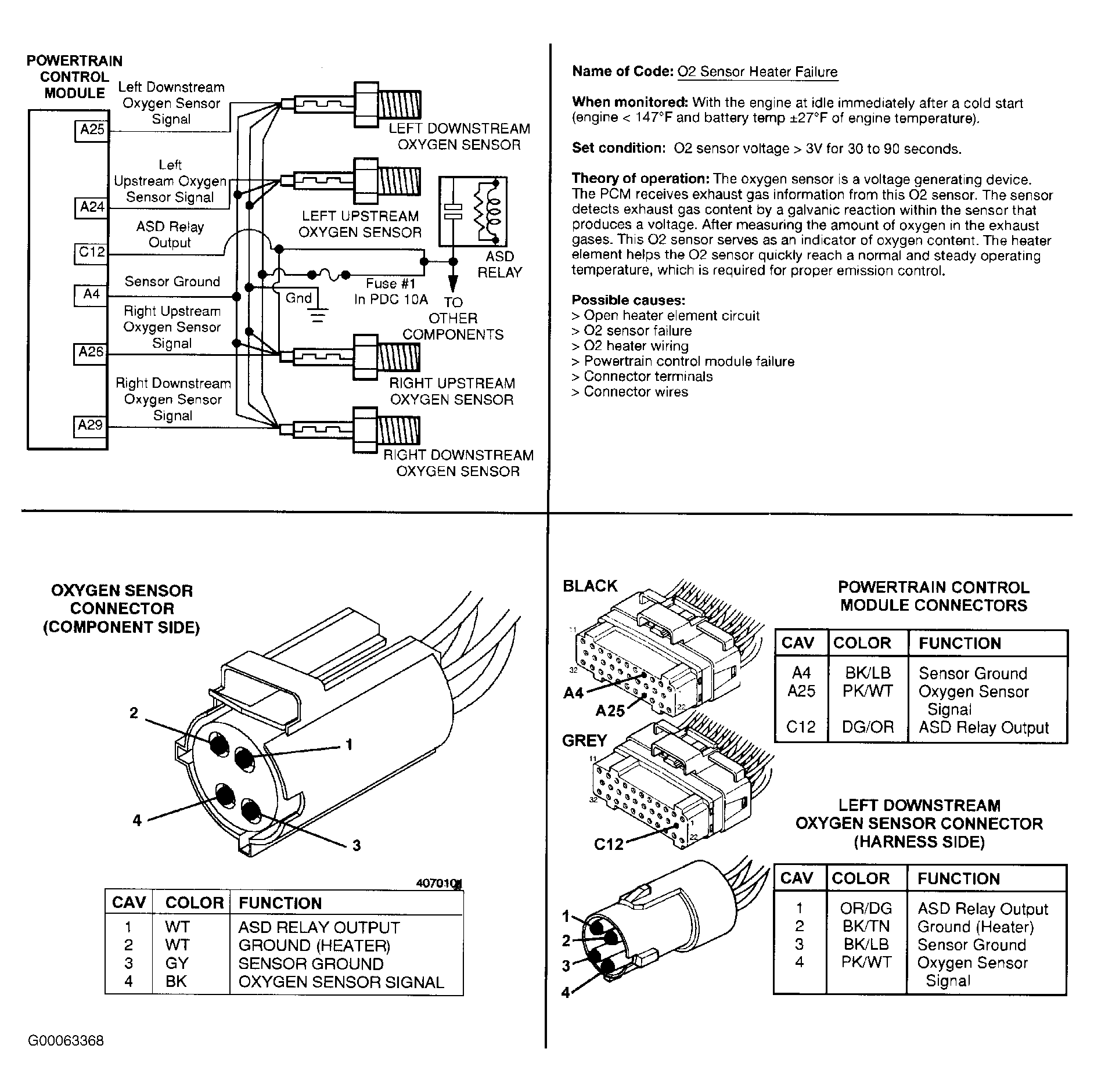

Fig 1: TC-105A: 1/2 O2 Sensor Heater Failure (1 Of 2)
G00063368Courtesy of DAIMLERCHRYSLER CORPORATION

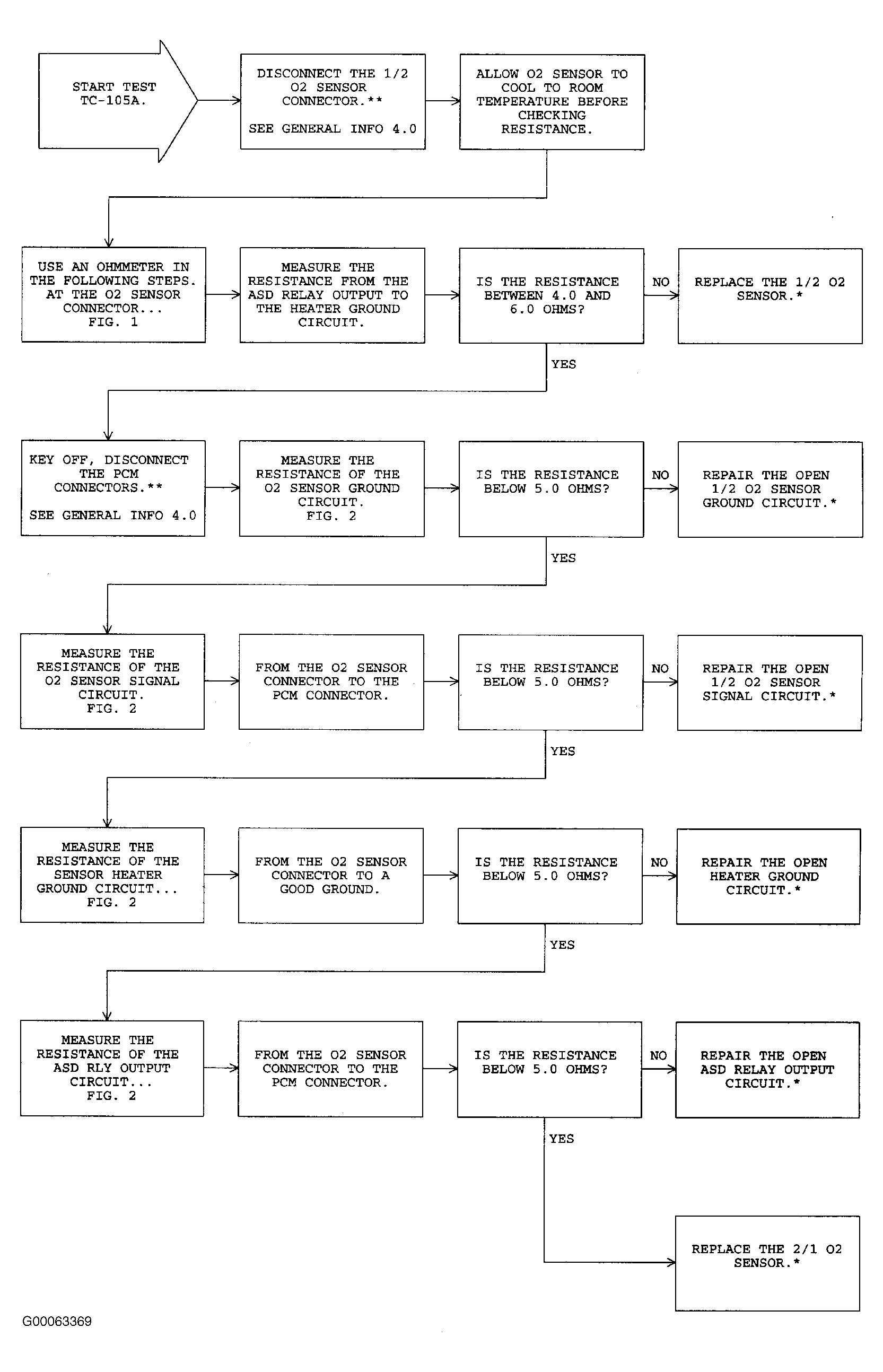

Fig 2: TC-105A: 1/2 O2 Sensor Heater Failure (2 Of 2)
G00063369Courtesy of DAIMLERCHRYSLER CORPORATION
