NTC-14A: Checking Battery Temp Sensor

NOTE: Perform Test NTC-1A Before Proceeding

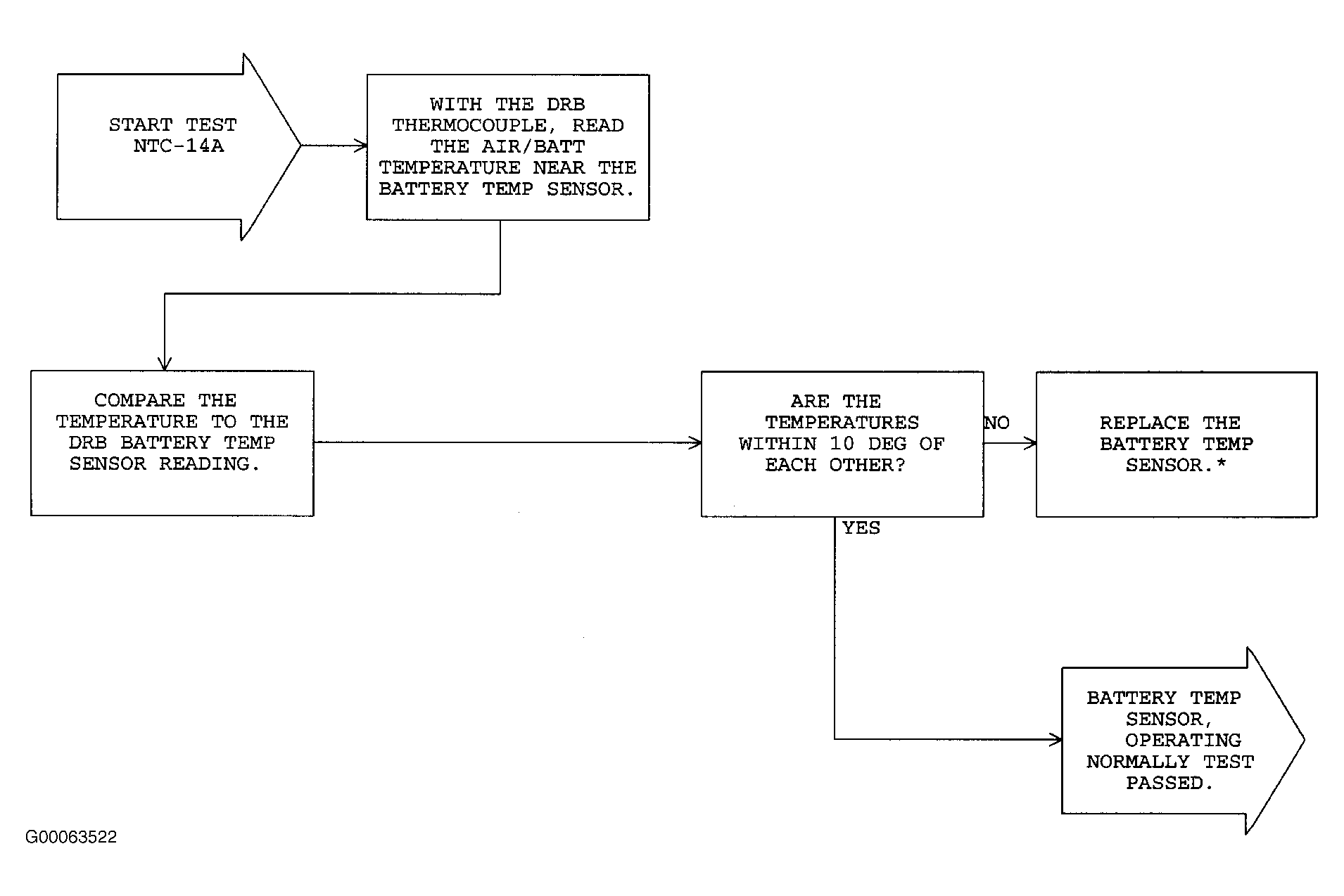

Fig 1: NTC-14A: Checking Battery Temp Sensor
G00063522Courtesy of DAIMLERCHRYSLER CORPORATION
