NTC-18A: Checking Intake Air Temp Sensor

NOTE: Perform Test NTC-1A Before Proceeding

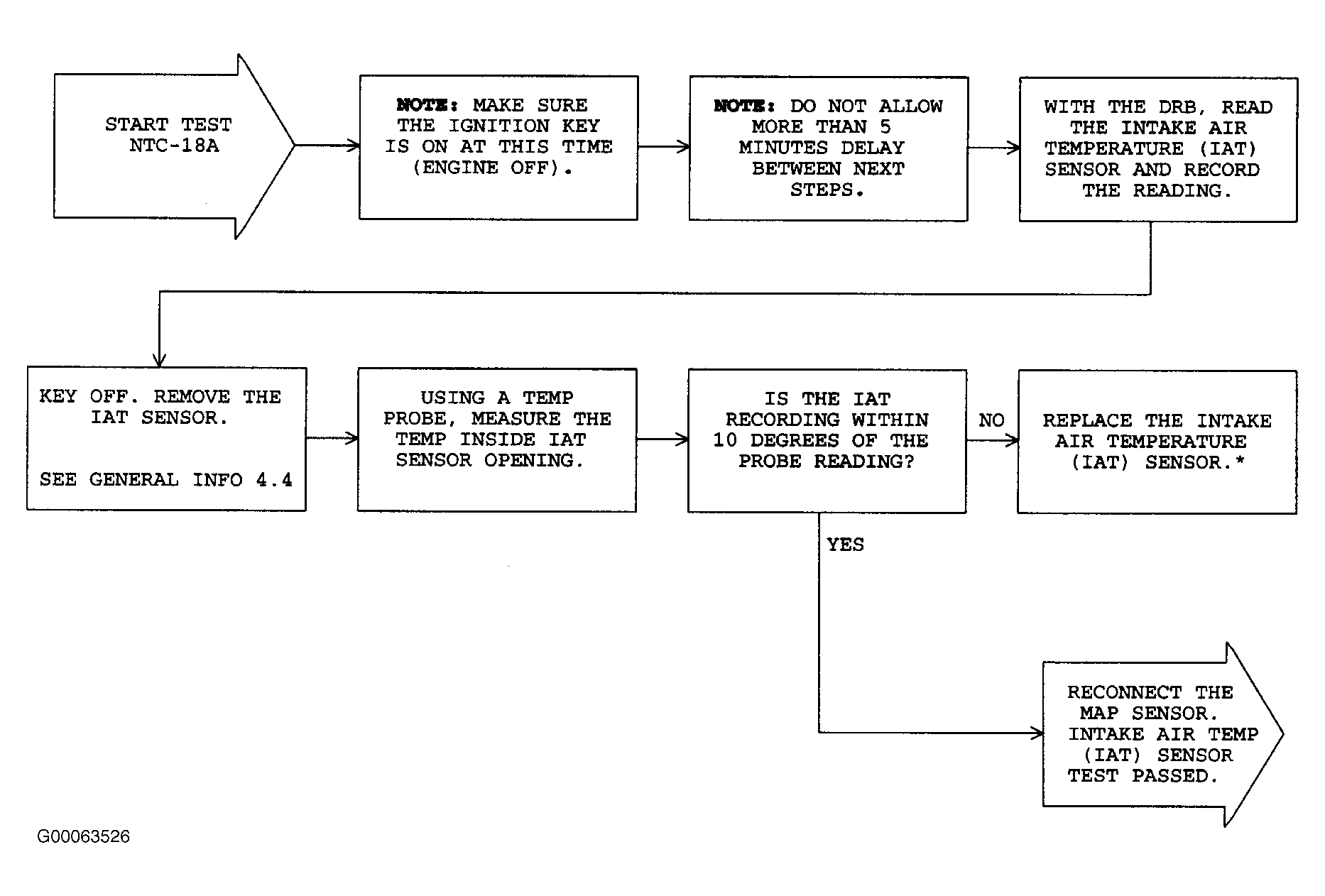

Fig 1: NTC-18A: Checking Intake Air Temp Sensor
G00063526Courtesy of DAIMLERCHRYSLER CORPORATION
