TC-101A: Fuel Pump Relay Control Circuit

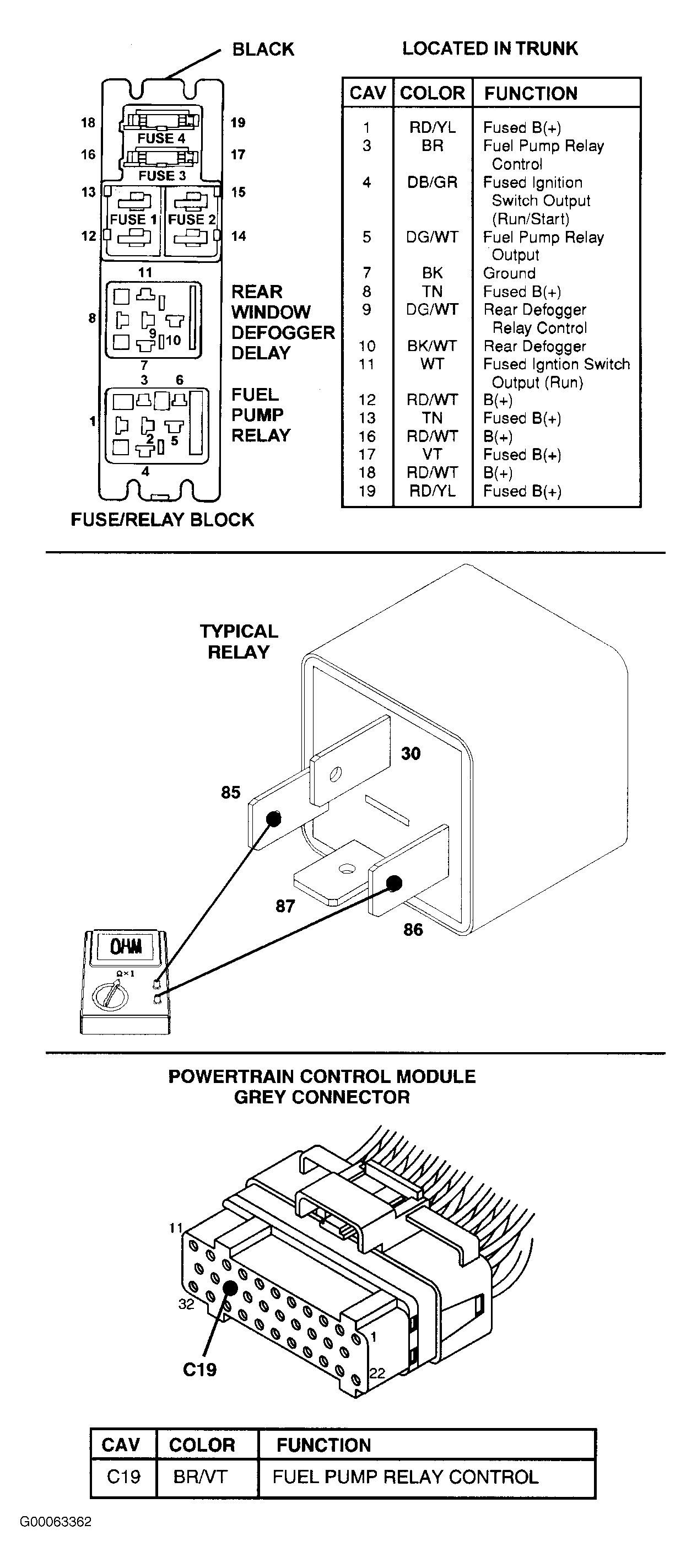

Fig 1: TC-101A: Fuel Pump Relay Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

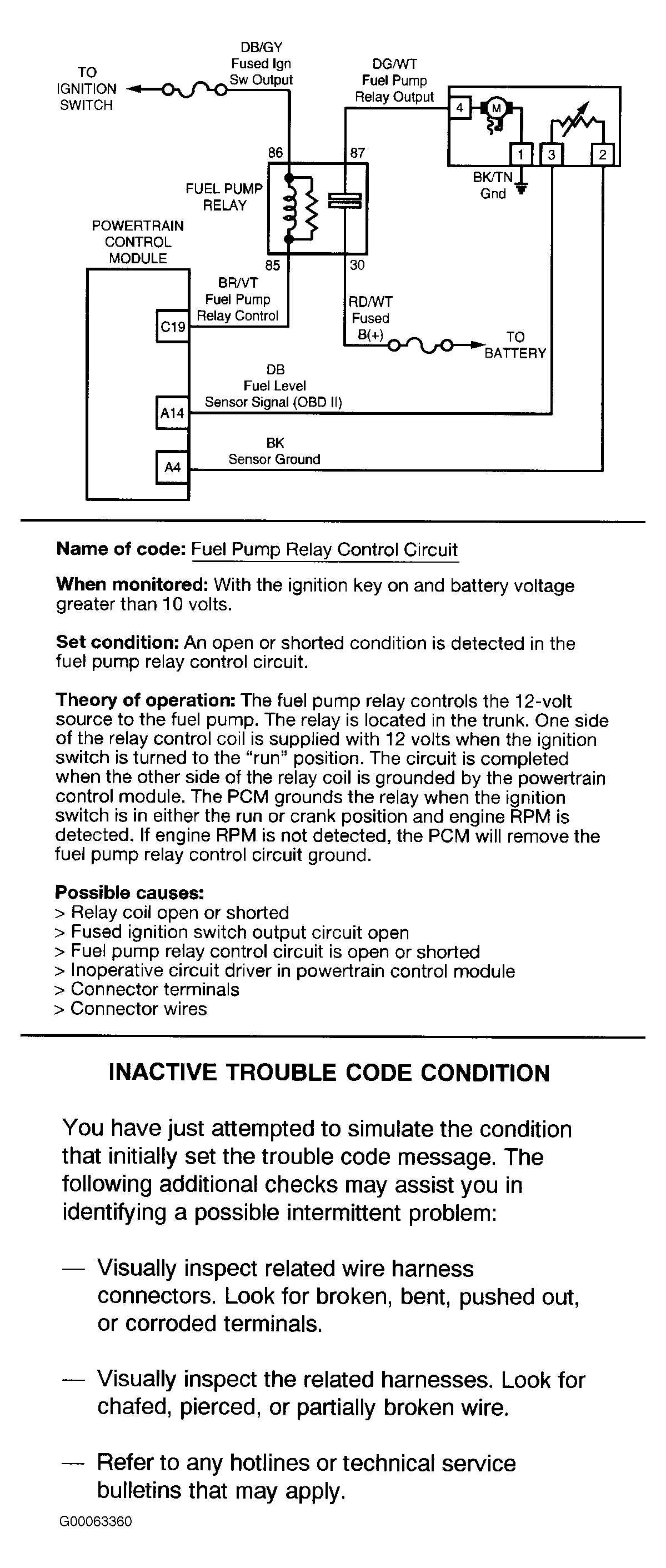

Fig 2: TC-101A: Fuel Pump Relay Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

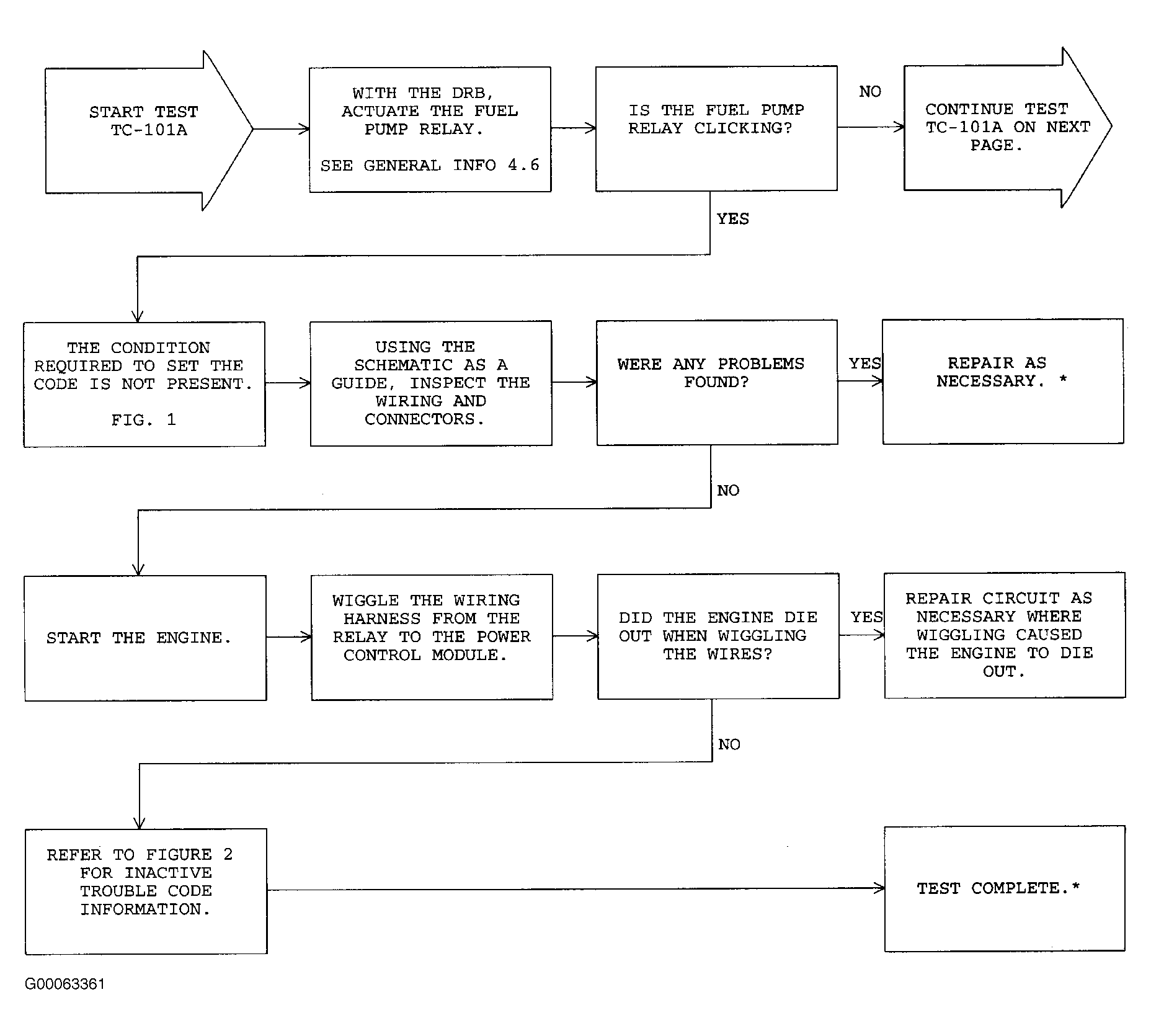

Fig 3: TC-101A: Fuel Pump Relay Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

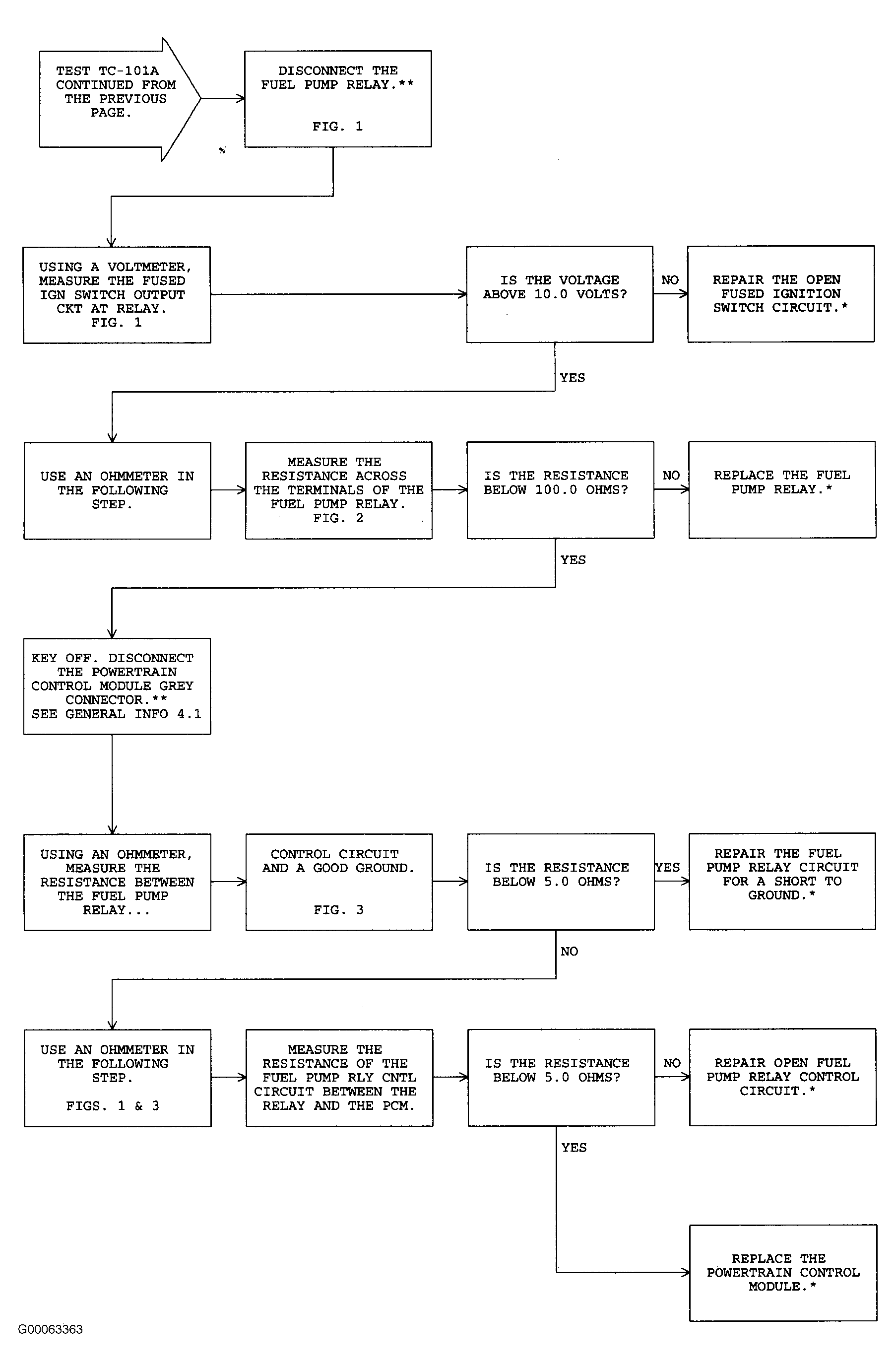

Fig 4: TC-101A: Fuel Pump Relay Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
