TC-103A: 1/1 O2 Sensor Heater Failure

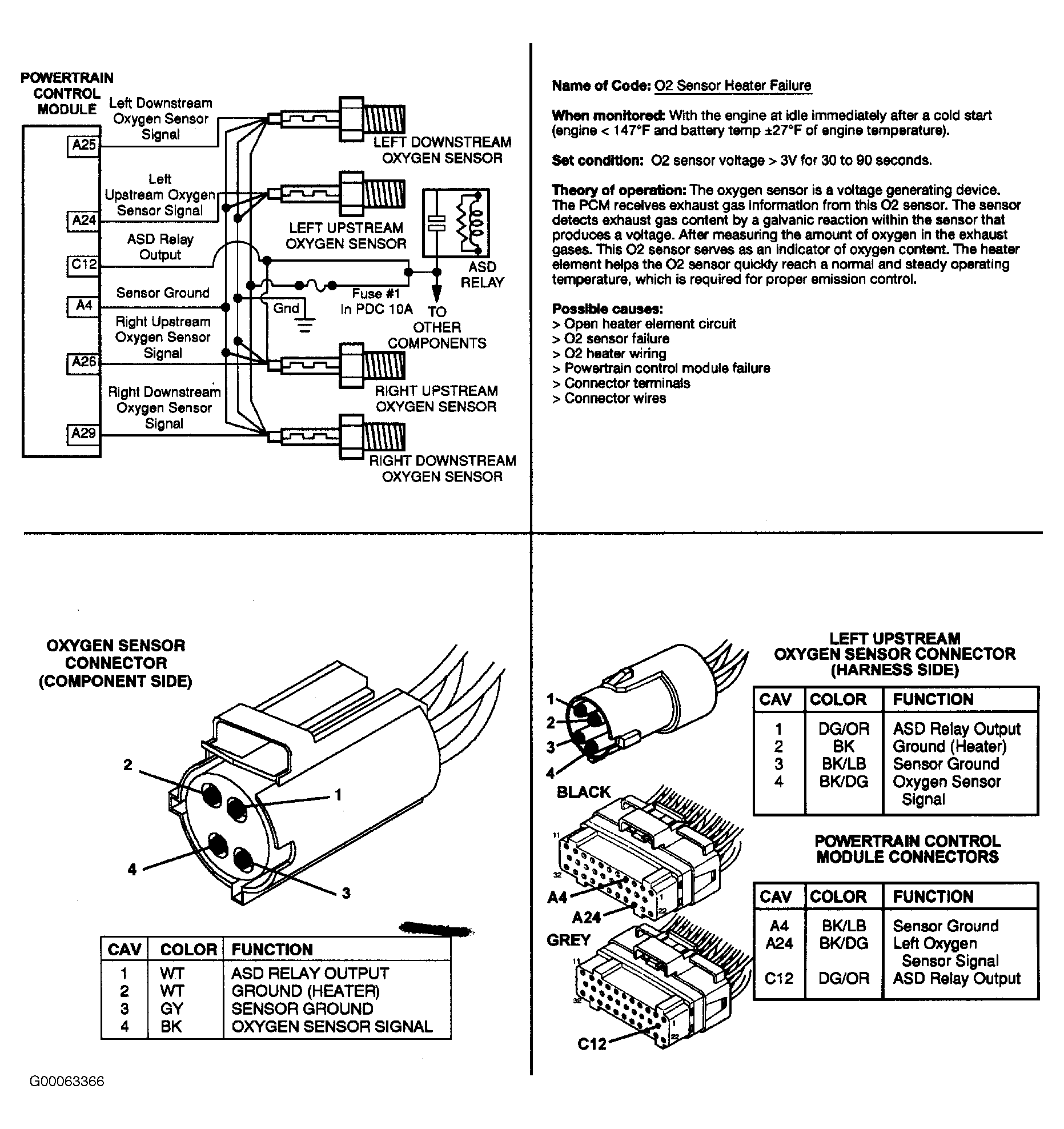

Fig 1: TC-103A: 1/1 O2 Sensor Heater Failure (1 Of 2)
G00063366Courtesy of DAIMLERCHRYSLER CORPORATION

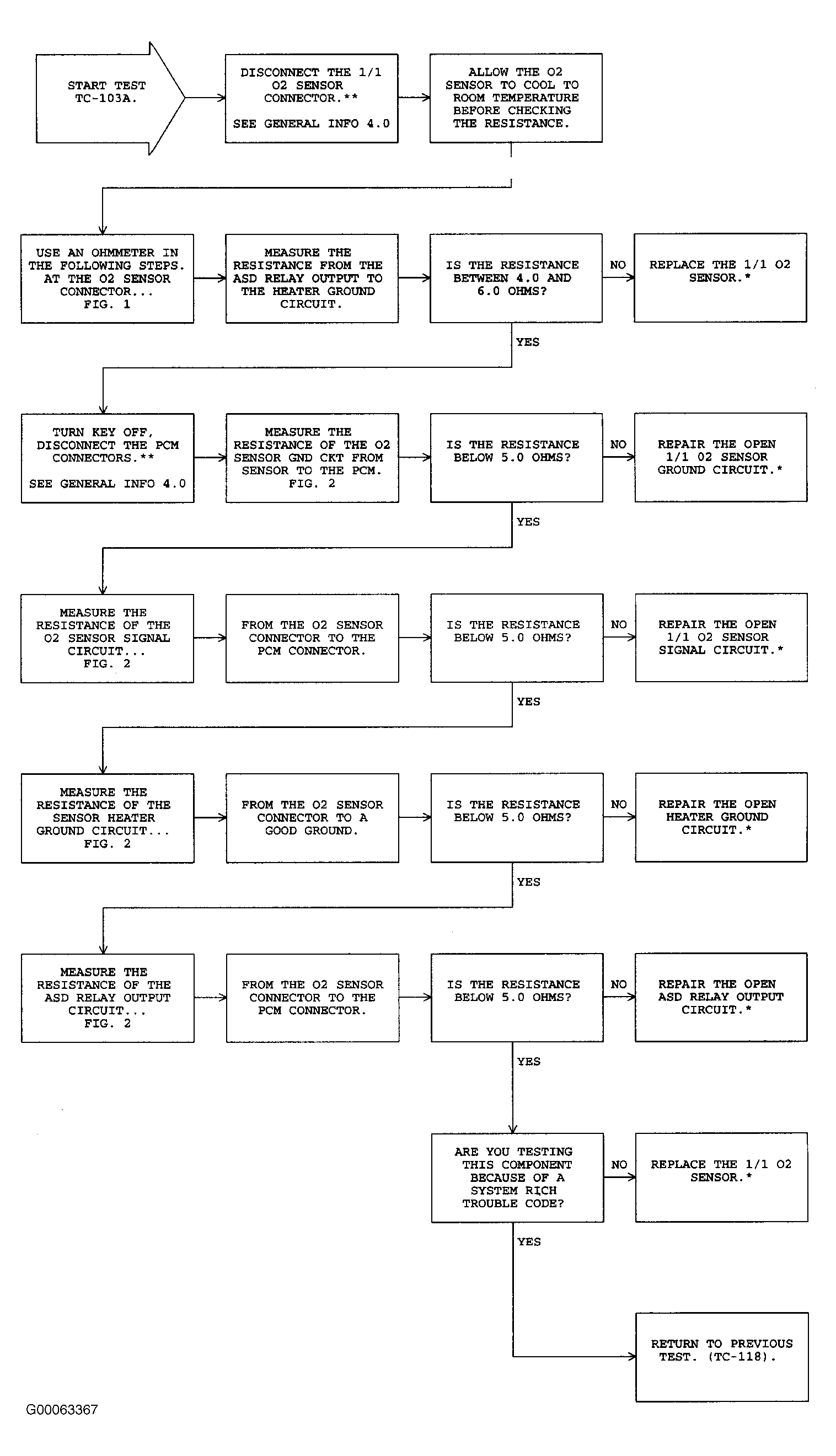

Fig 2: TC-103A: 1/1 O2 Sensor Heater Failure (2 Of 2)
G00063367Courtesy of DAIMLERCHRYSLER CORPORATION
