TC-113B: EVAP Purge Flow Monitor Failure

NOTE: Perform Test TC-113A Before Proceeding

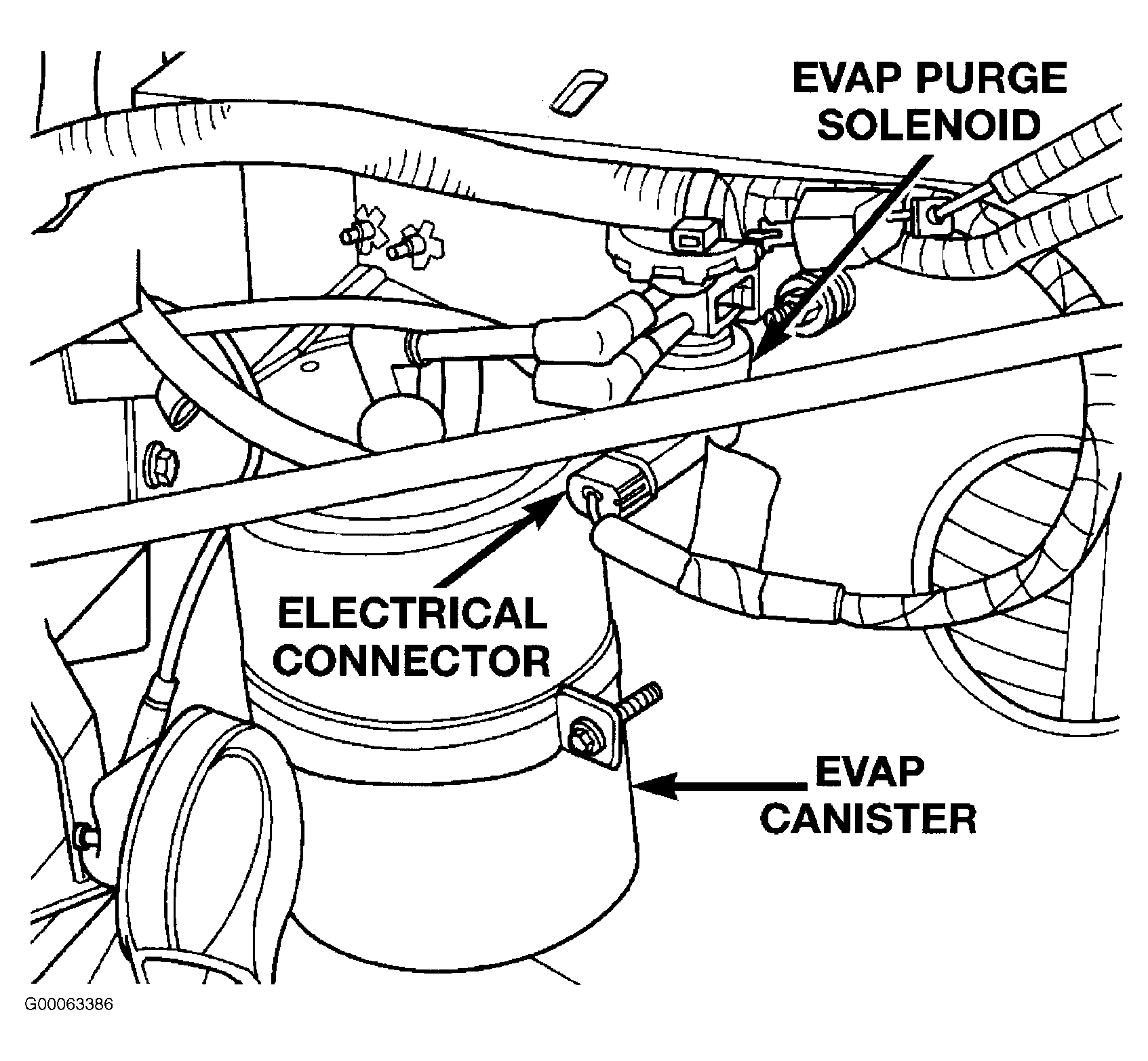

Fig 1: TC-113B: EVAP Purge Flow Monitor Failure (1 Of 2)
G00063386Courtesy of DAIMLERCHRYSLER CORPORATION

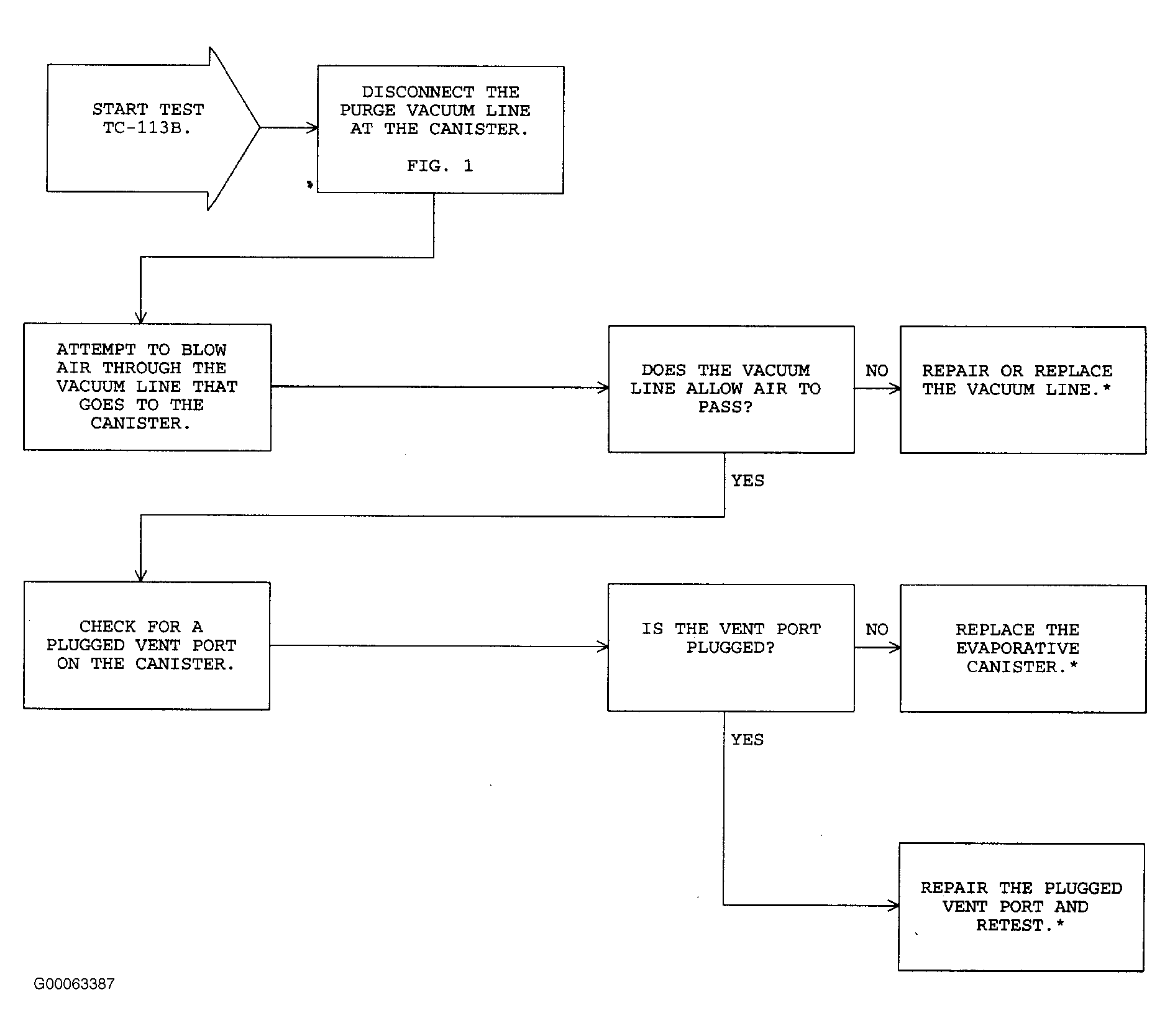

Fig 2: TC-113B: EVAP Purge Flow Monitor Failure (2 Of 2)
G00063387Courtesy of DAIMLERCHRYSLER CORPORATION
