TC-121B: Fuel System 2/1 Lean

NOTE: Perform Test TC-120A Before Proceeding

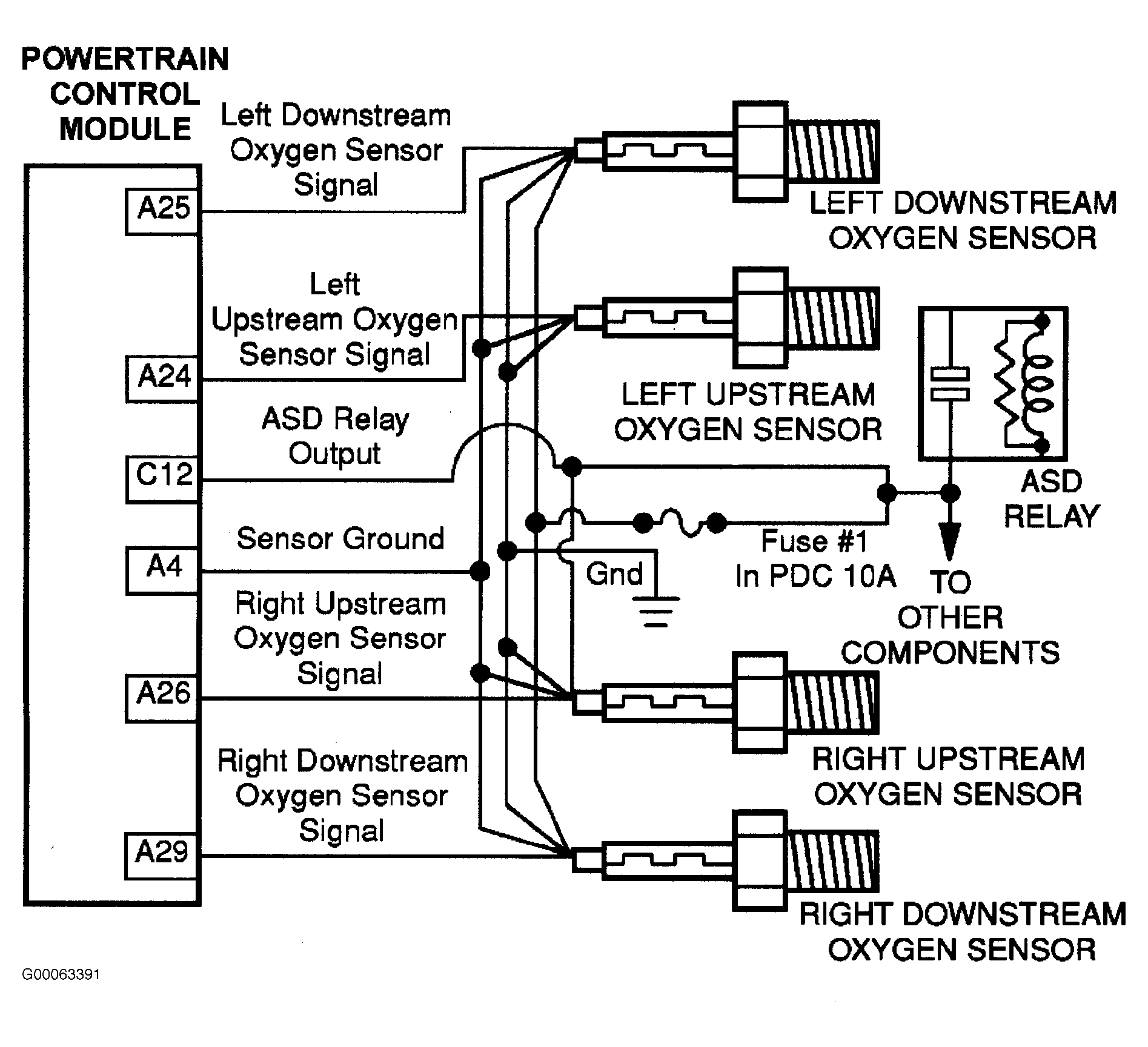

Fig 1: TC-121B: Fuel System 2/1 Lean (1 Of 2)
G00063391Courtesy of DAIMLERCHRYSLER CORPORATION

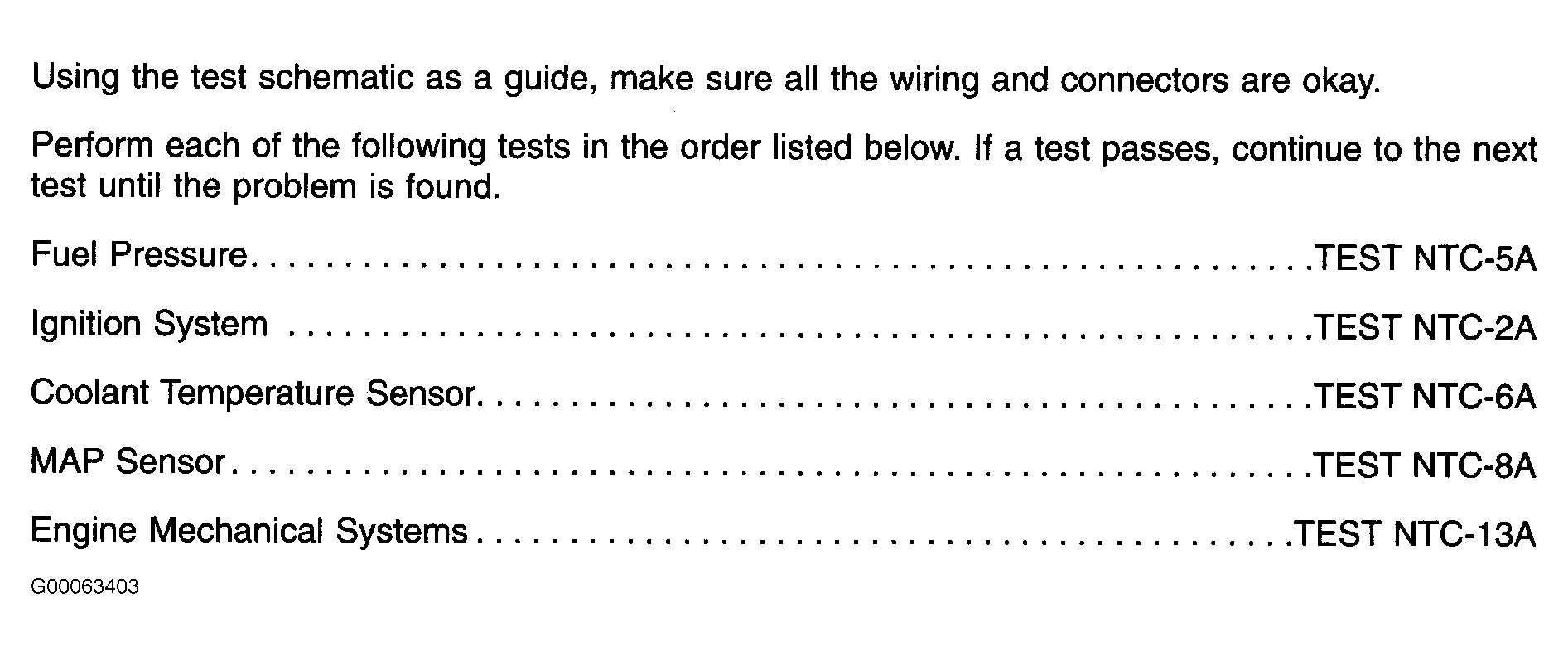

Fig 2: TC-121B: Fuel System 2/1 Lean (2 Of 2)
G00063403Courtesy of DAIMLERCHRYSLER CORPORATION
