TC-20A: Injector No. 2 Control Circuit

NOTE: Perform Test TC-21A Before Proceeding

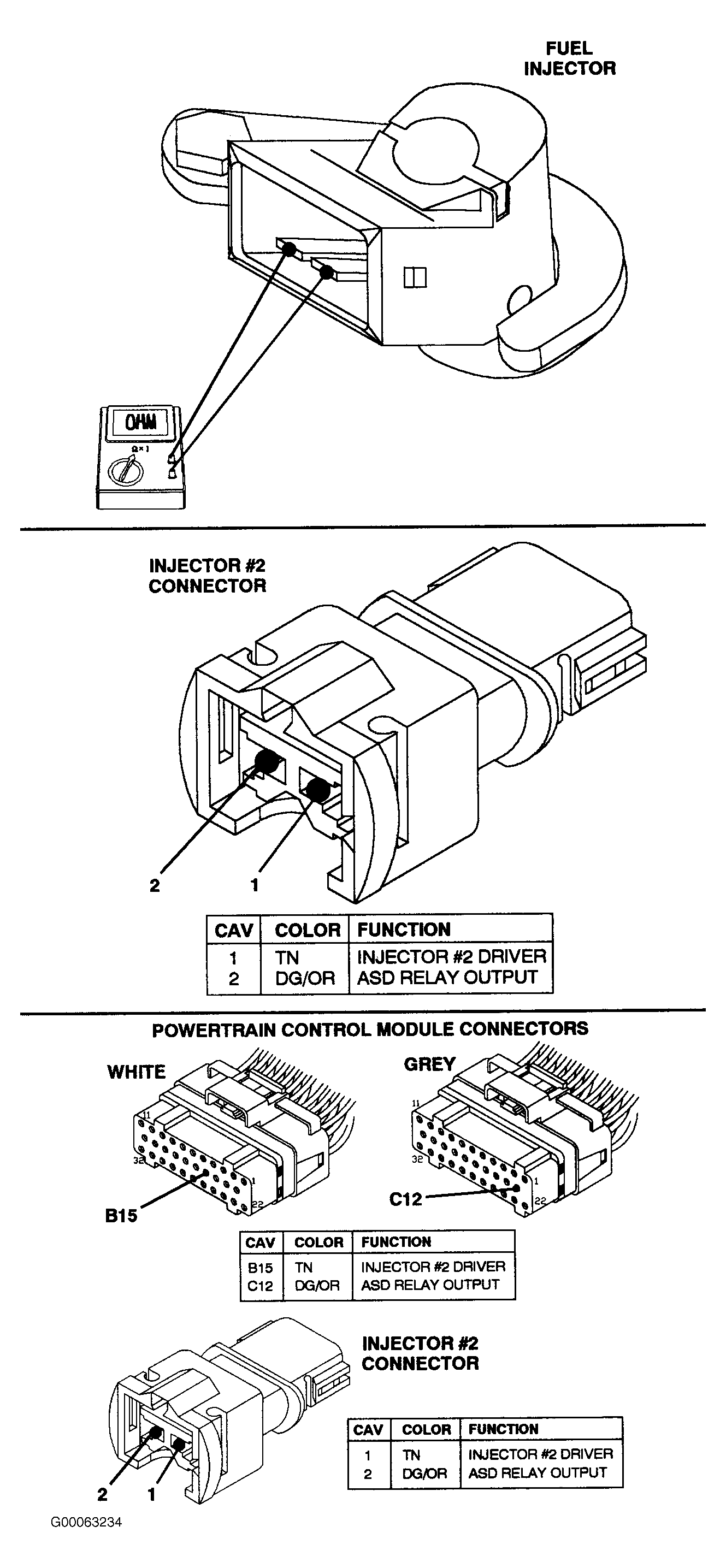

Fig 1: TC-20A: Injector No. 2 Control Circuit (1 Of 2)
G00063234Courtesy of DAIMLERCHRYSLER CORPORATION

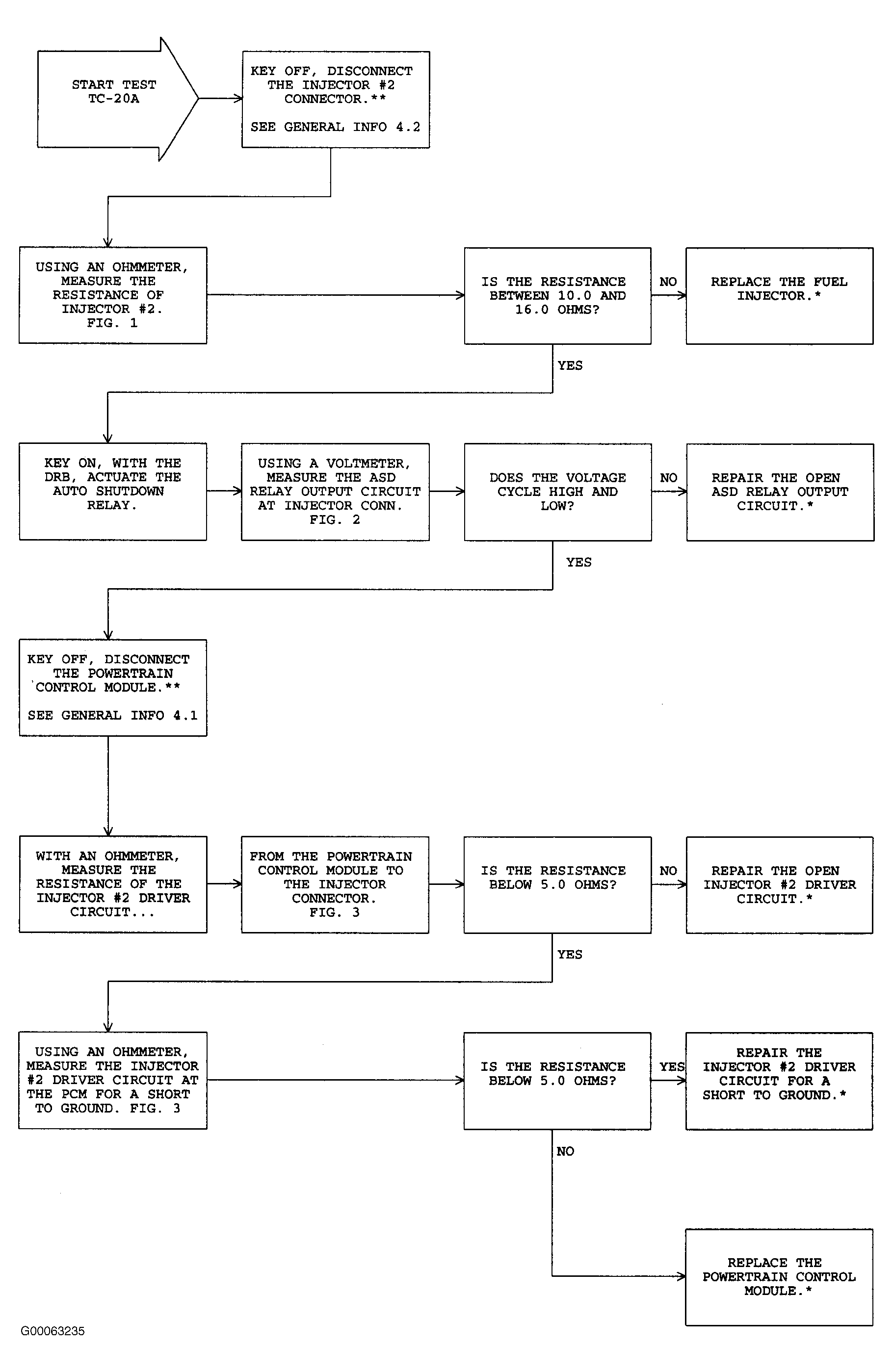

Fig 2: TC-20A: Injector No. 2 Control Circuit (2 Of 2)
G00063235Courtesy of DAIMLERCHRYSLER CORPORATION
