TC-21A: Injector Control Circuit

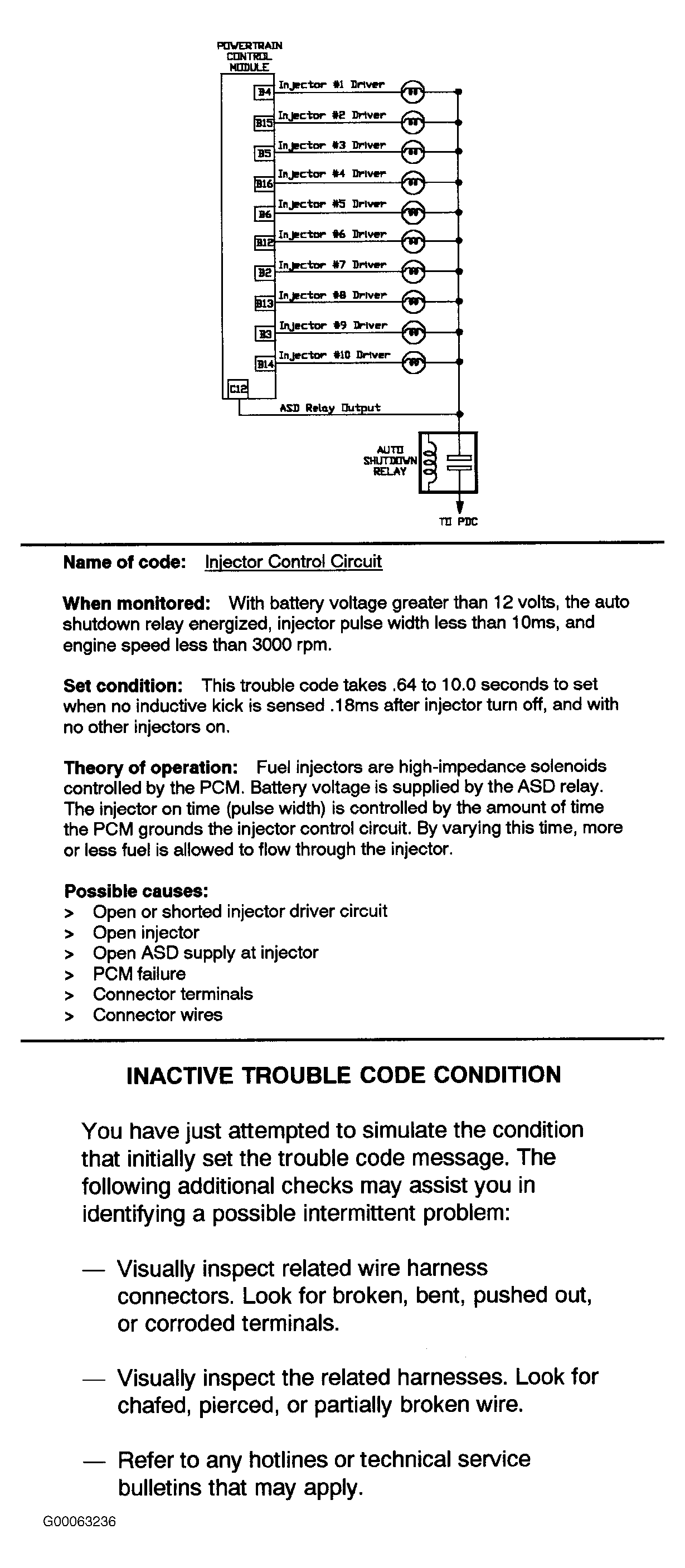

Fig 1: TC-21A: Injector Control Circuit (1 Of 3)
G00063236Courtesy of DAIMLERCHRYSLER CORPORATION

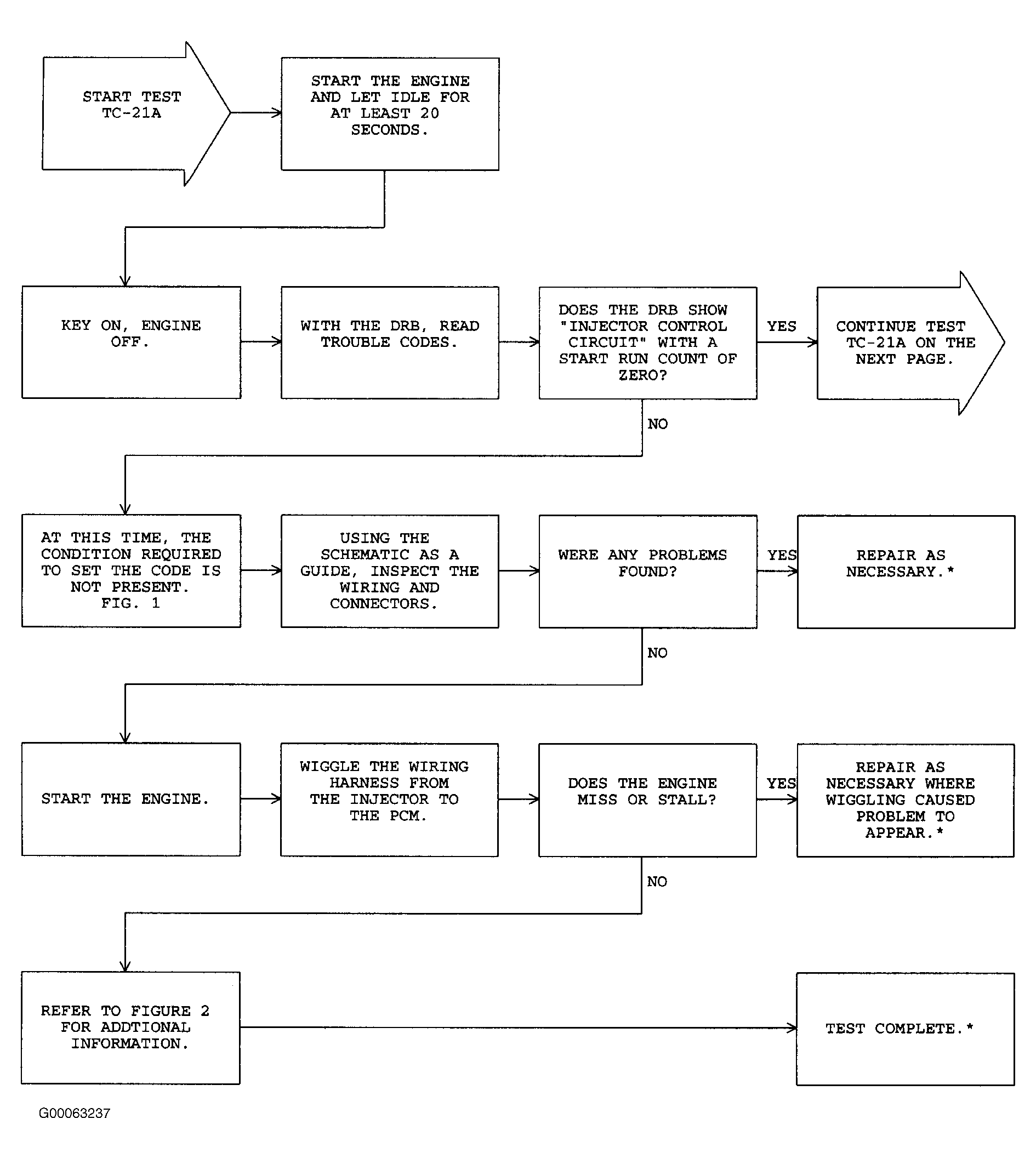

Fig 2: TC-21A: Injector Control Circuit (2 Of 3)
G00063237Courtesy of DAIMLERCHRYSLER CORPORATION

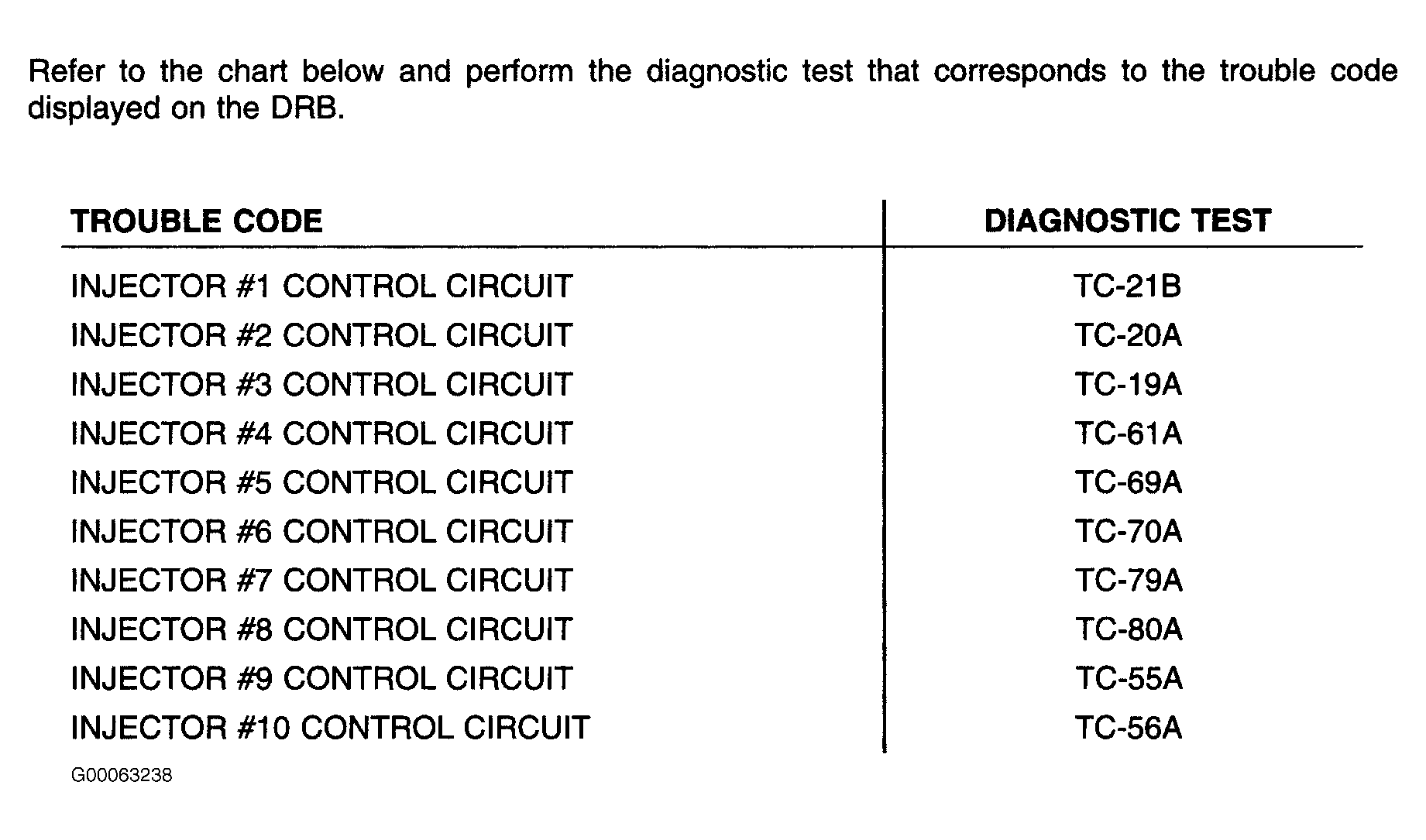

Fig 3: TC-21A: Injector Control Circuit (3 Of 3)
G00063238Courtesy of DAIMLERCHRYSLER CORPORATION
