TC-25D: Idle Air Control Motor Circuits

NOTE: Perform Test TC-25A Before Proceeding
Fig 1: TC-25D: Idle Air Control Motor Circuits (1 Of 2)
G00063247Courtesy of DAIMLERCHRYSLER CORPORATION

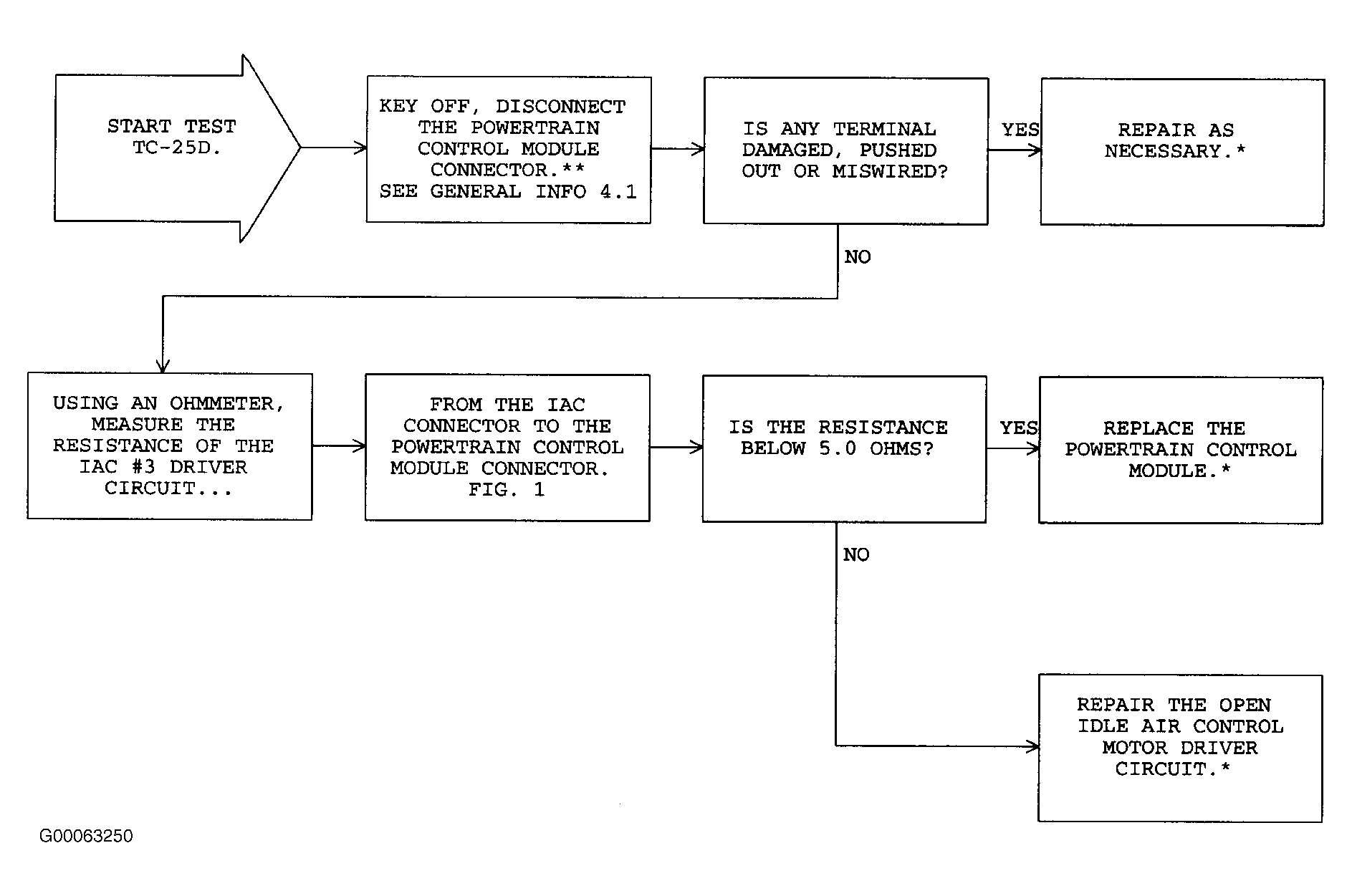

Fig 2: TC-25D: Idle Air Control Motor Circuits (2 Of 2)
G00063250Courtesy of DAIMLERCHRYSLER CORPORATION
