TC-39A: No Change In Map Sensor From Start To Run

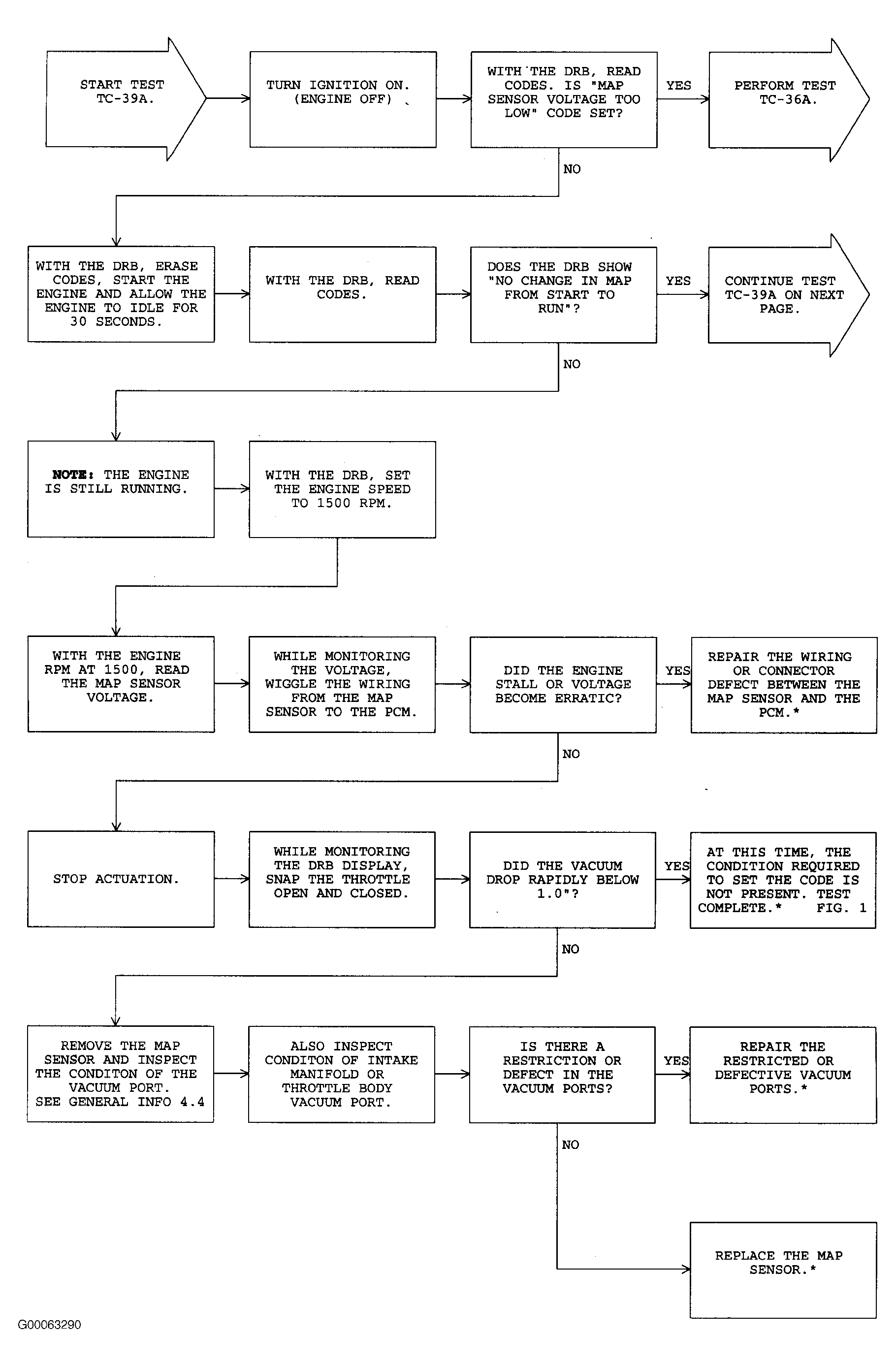

Fig 1: TC-39A: No Change In MAP Sensor From Start To Run (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

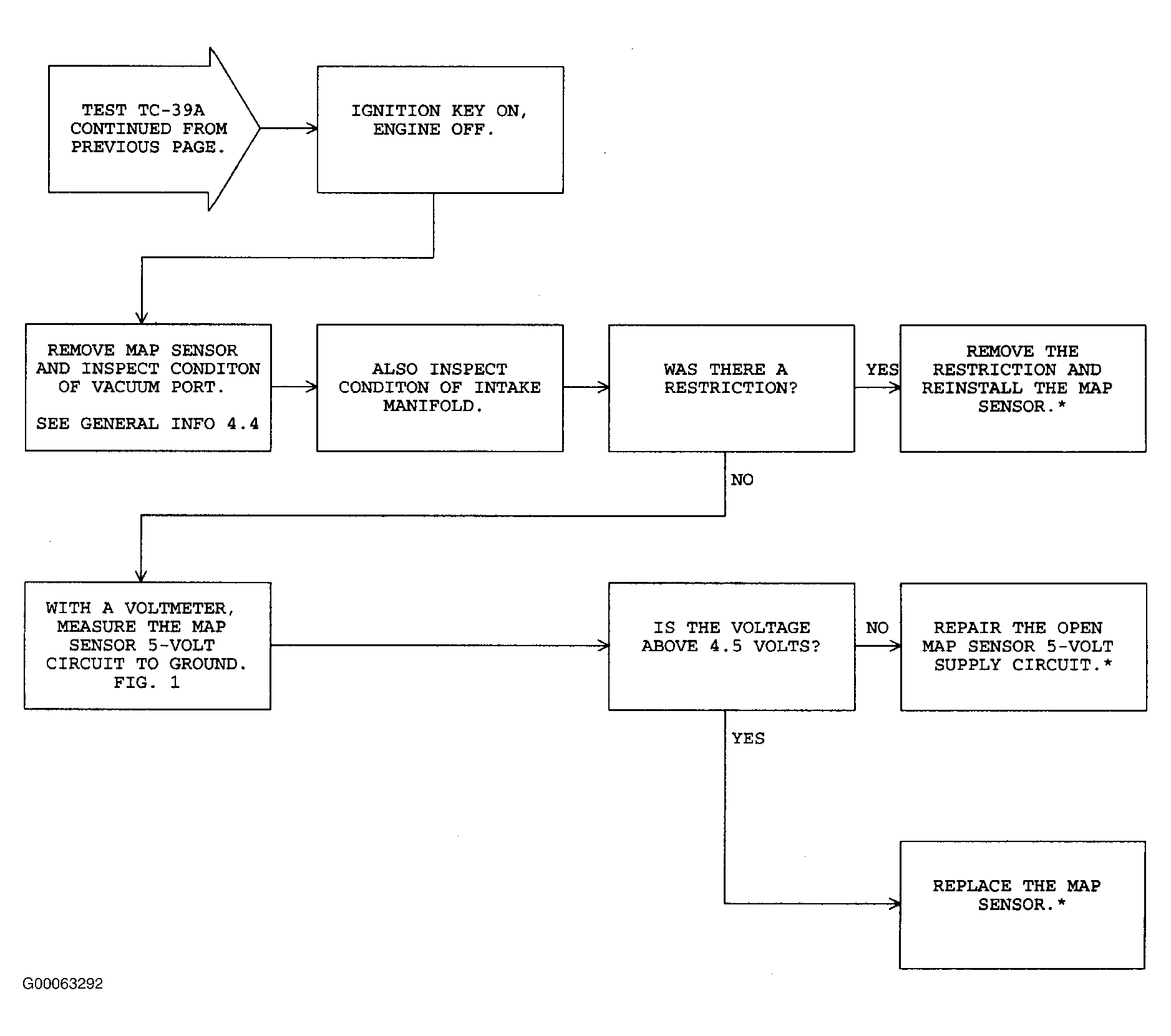

Fig 2: TC-39A: No Change In MAP Sensor From Start To Run (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

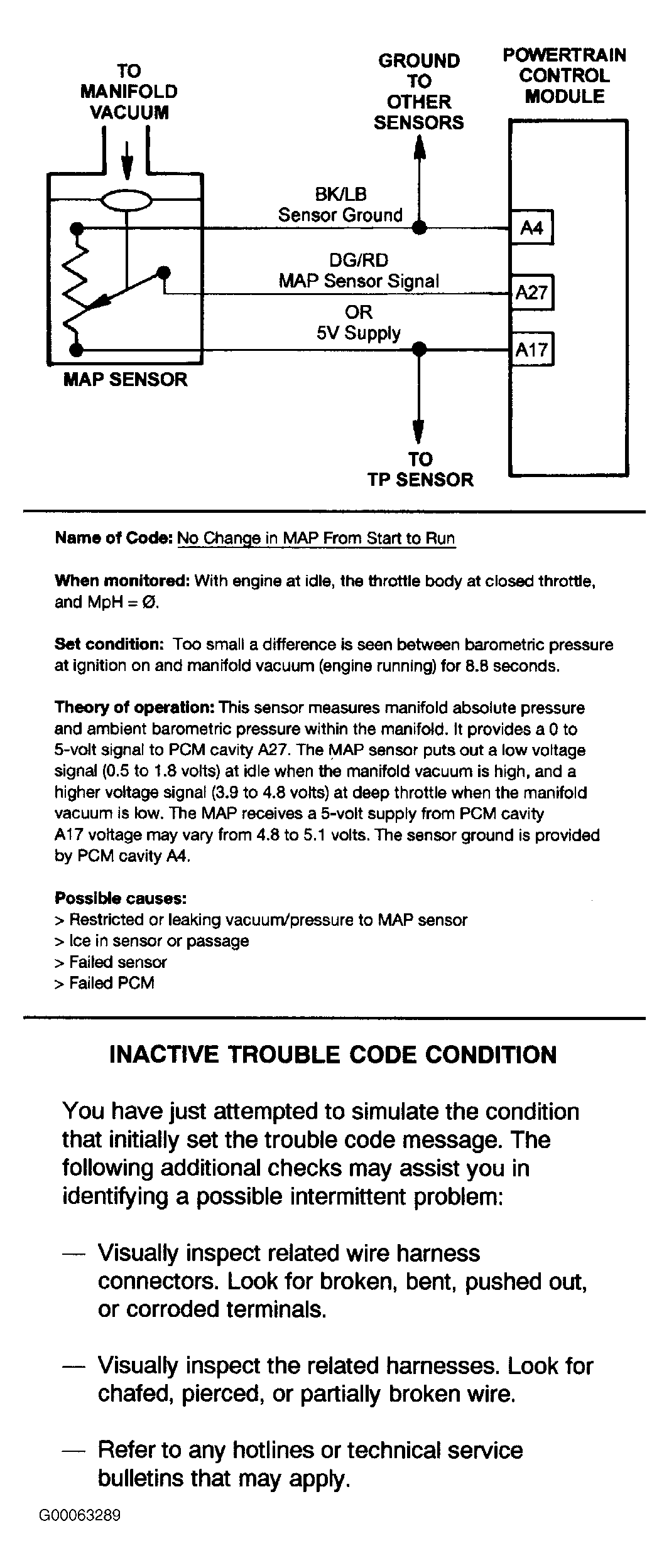

Fig 3: TC-39A: No Change In MAP Sensor From Start To Run (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

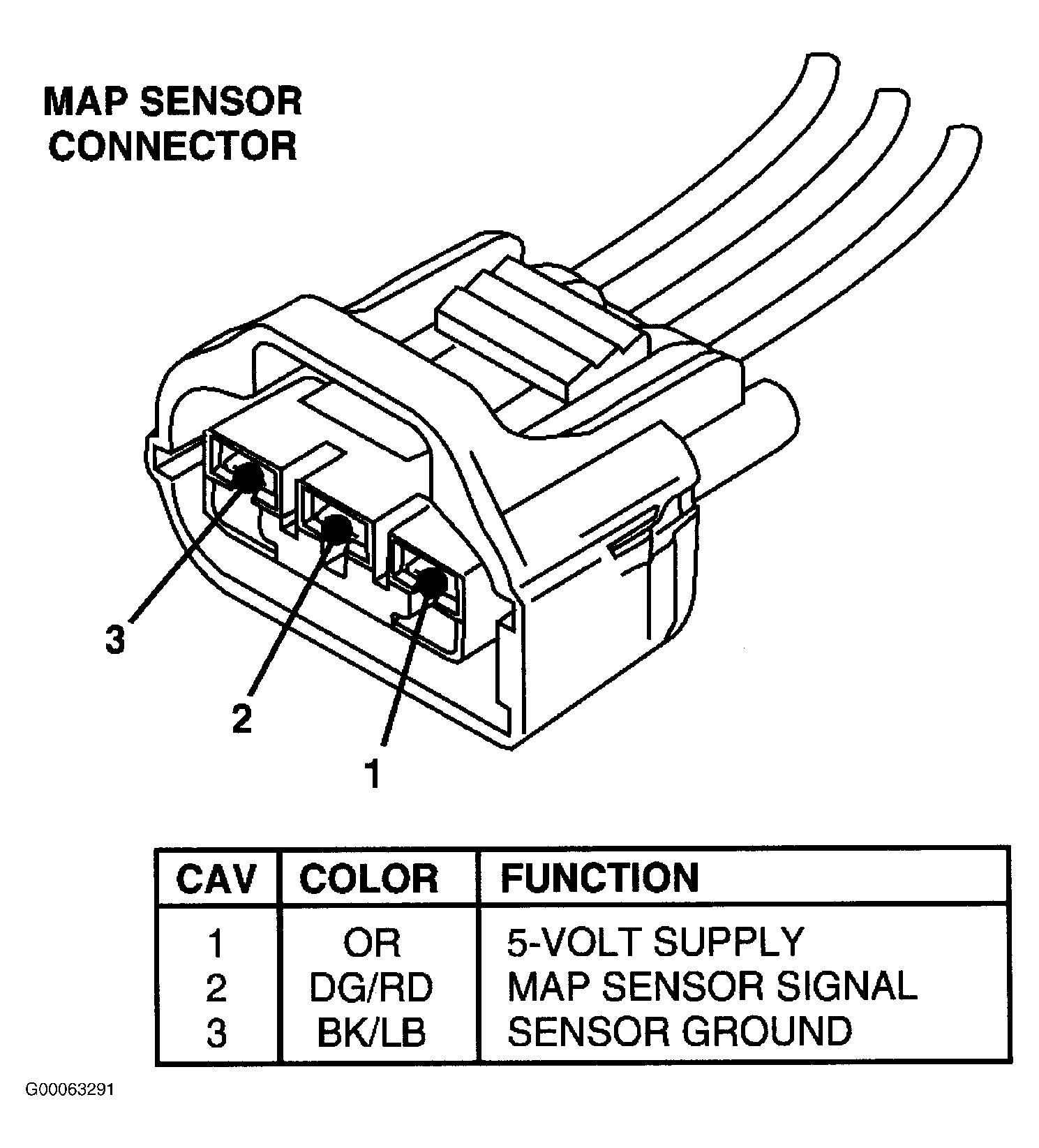

Fig 4: TC-39A: No Change In MAP Sensor From Start To Run (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
