TC-55A: Injector No. 9 Control Circuit

NOTE: Perform Test TC-21A Before Proceeding
Fig 1: TC-55A: Injector No. 9 Control Circuit (1 Of 2)
G00063318Courtesy of DAIMLERCHRYSLER CORPORATION

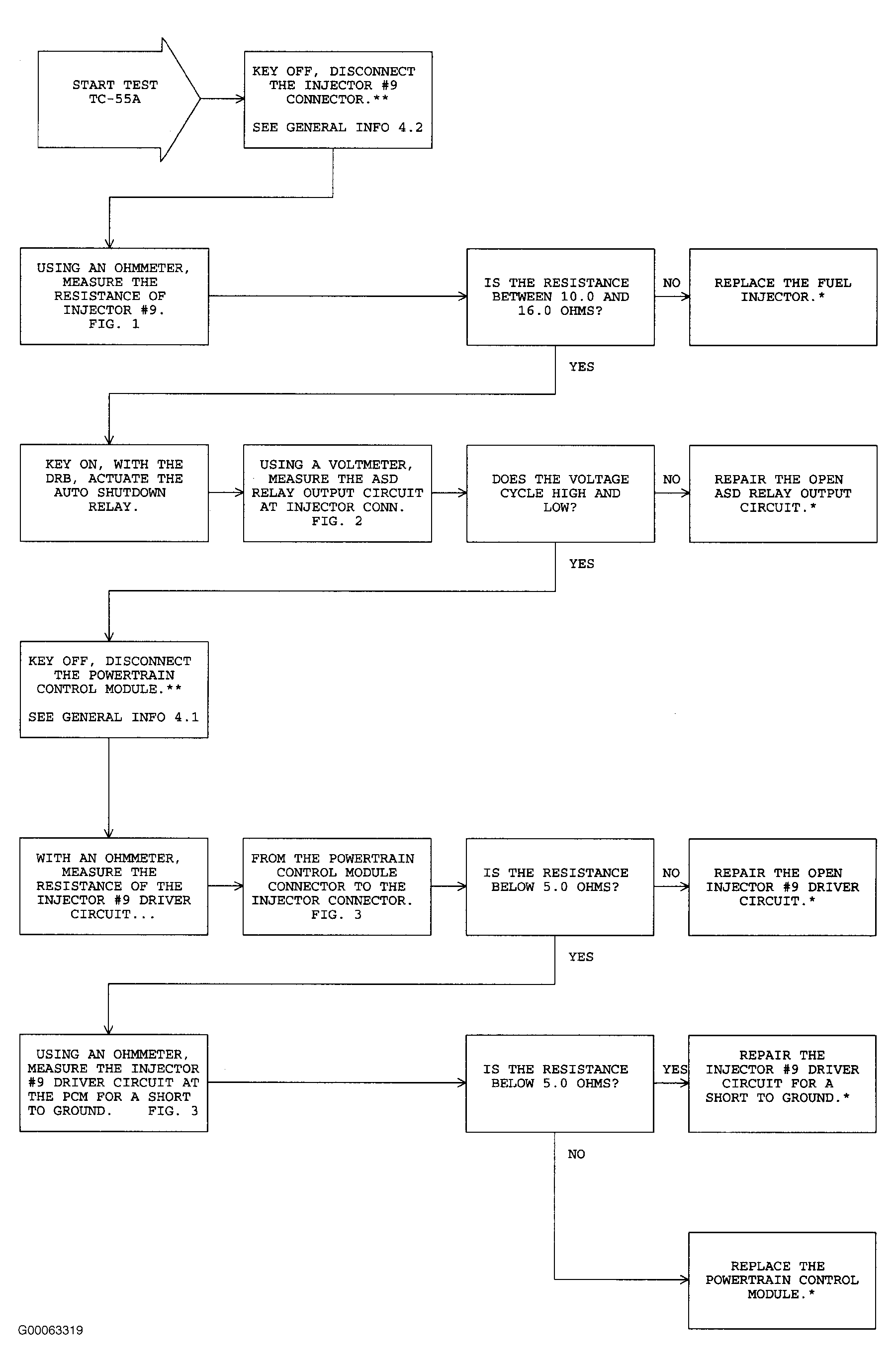

Fig 2: TC-55A: Injector No. 9 Control Circuit (2 Of 2)
G00063319Courtesy of DAIMLERCHRYSLER CORPORATION
