TC-61A: Injector No. 4 Control Circuit

NOTE: Perform Test TC-21A Before Proceeding

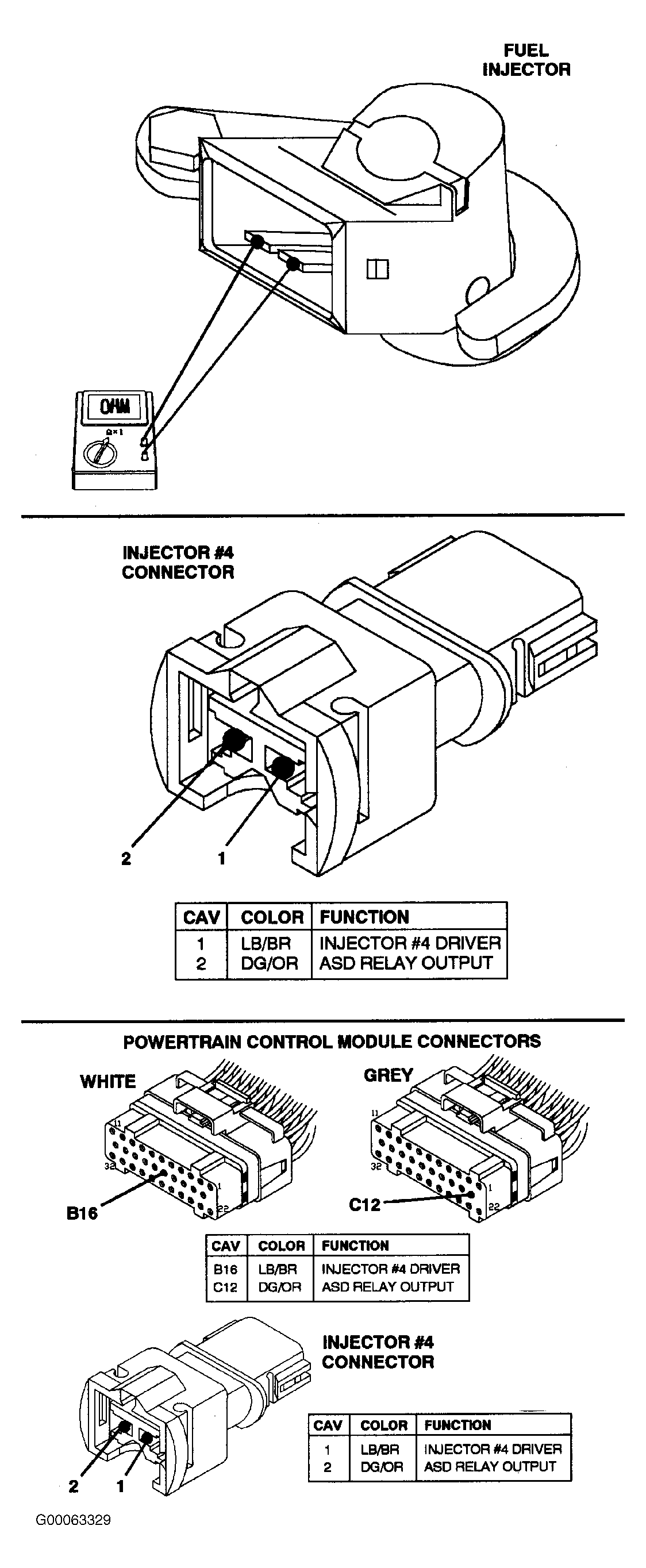

Fig 1: TC-61A: Injector No. 4 Control Circuit (1 Of 2)
G00063329Courtesy of DAIMLERCHRYSLER CORPORATION

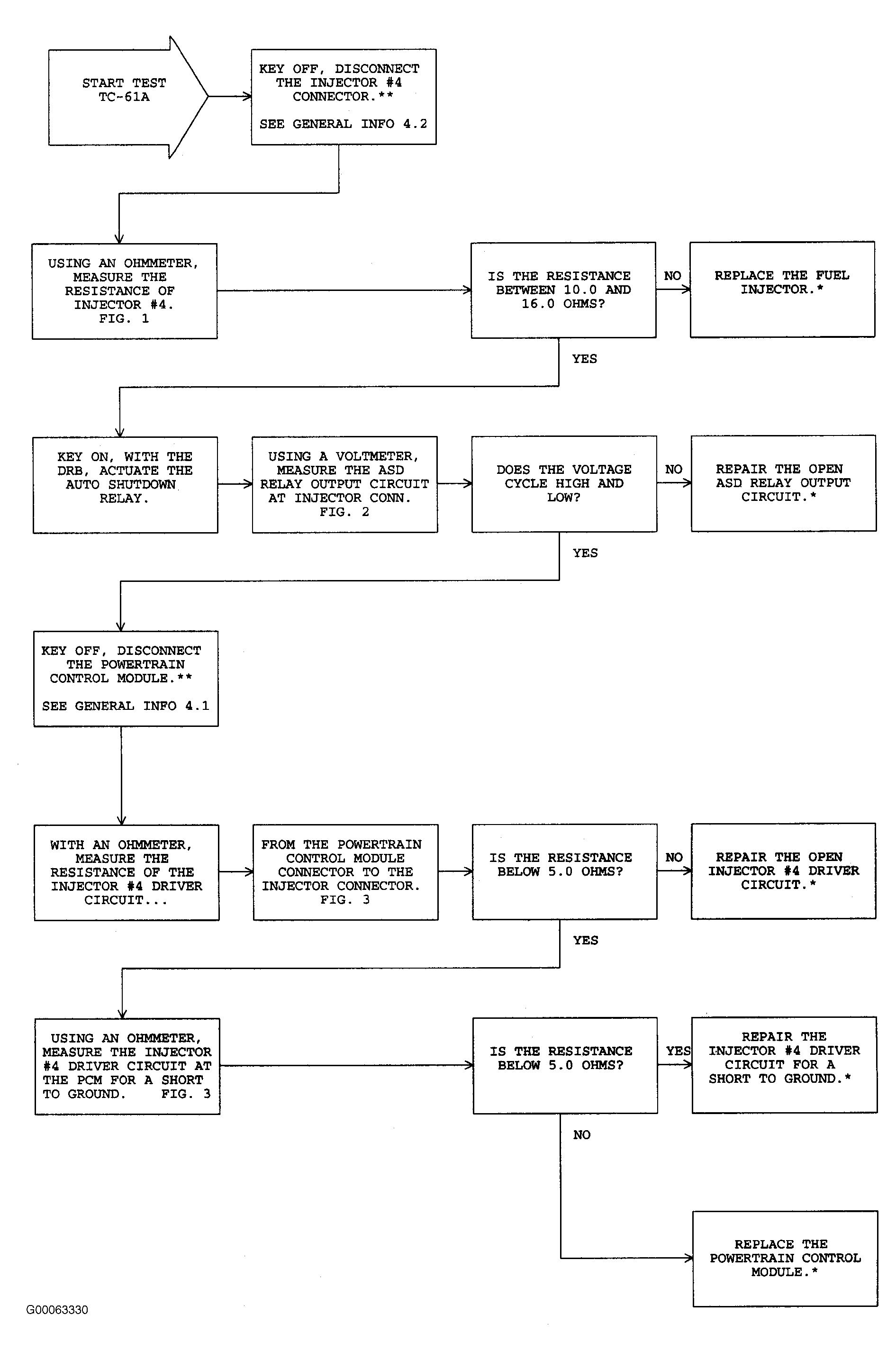

Fig 2: TC-61A: Injector No. 4 Control Circuit (2 Of 2)
G00063330Courtesy of DAIMLERCHRYSLER CORPORATION
