Wiper Control Module

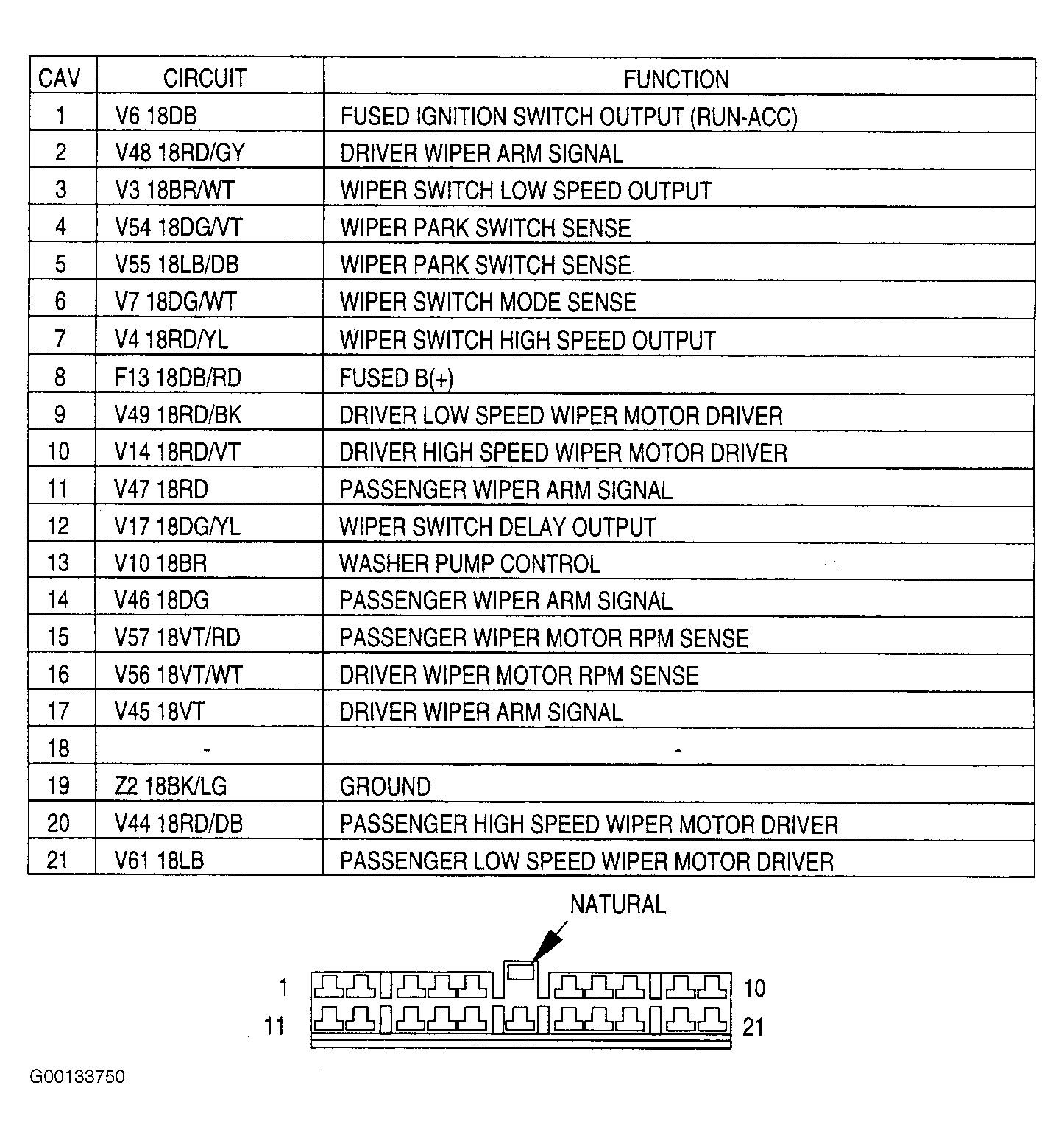

Fig 1: Identifying Wiper Control Module Connector Terminal Identification
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
