Power Window Switch Connector Terminal Identification

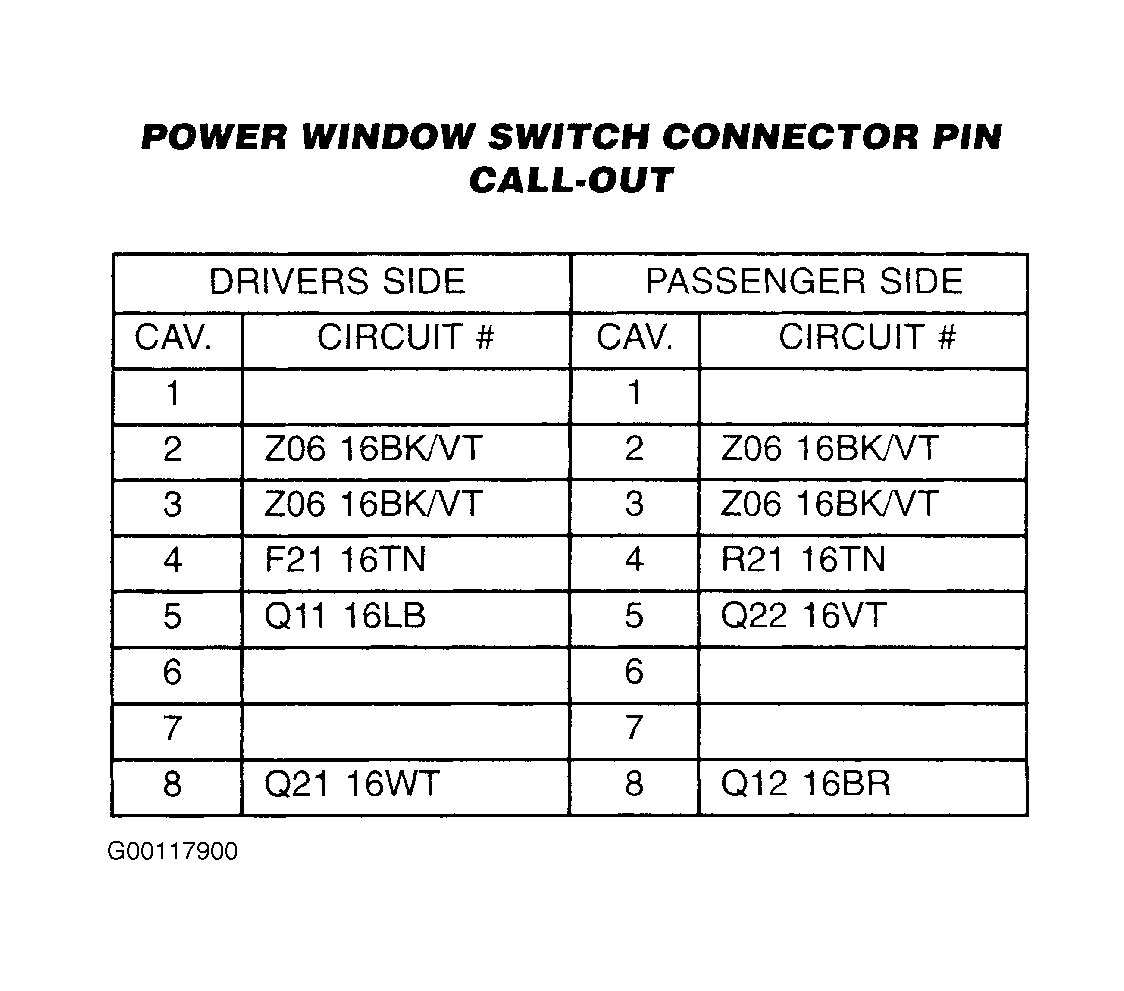

Fig 1: Power Window Switch Terminal Identification
G00117900Courtesy of CHRYSLER CORP.
