TC-119A: Fuel System 1/1 Lean

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

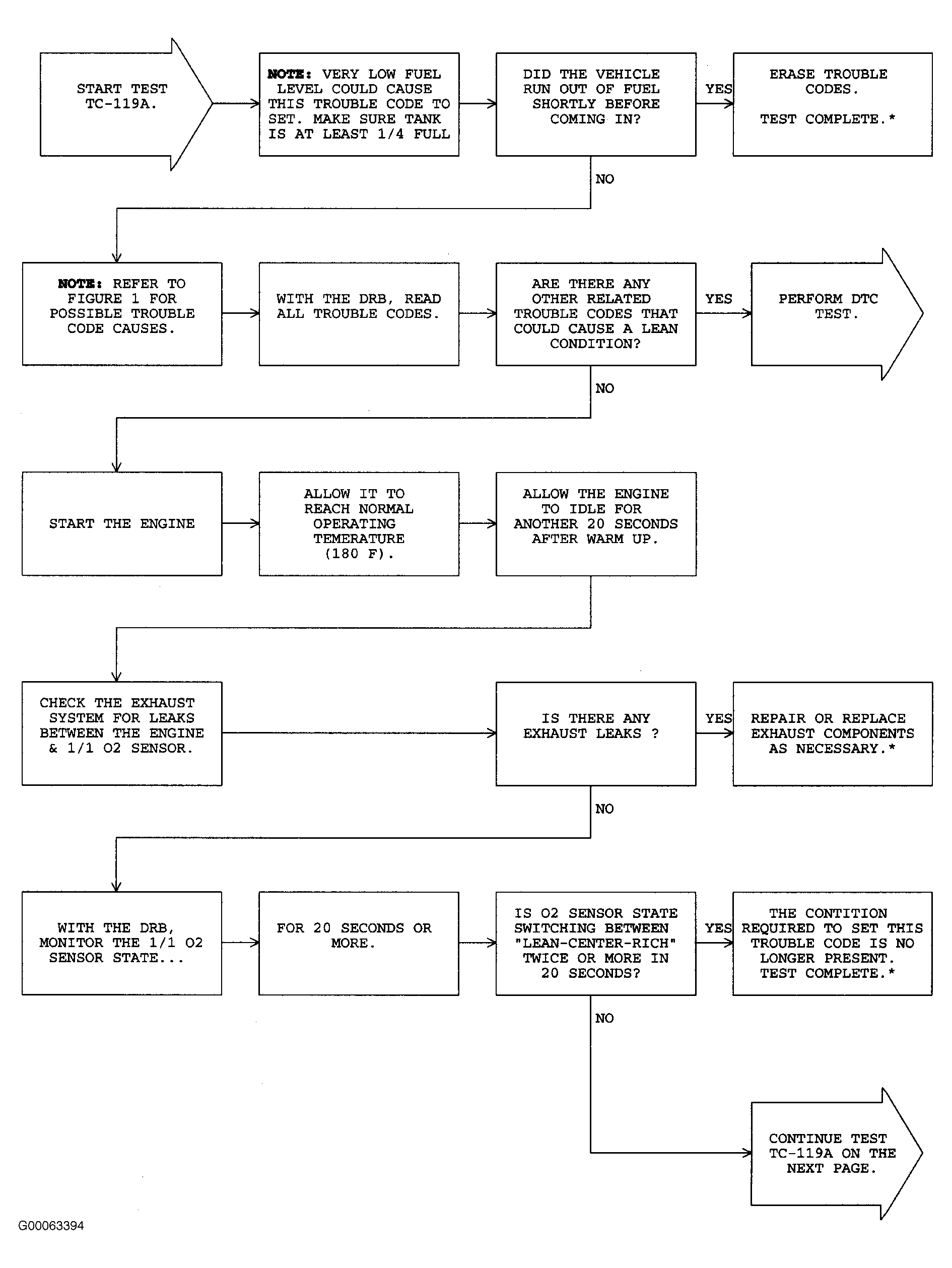

Fig 1: TC-119A: Fuel System 1/1 Lean (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

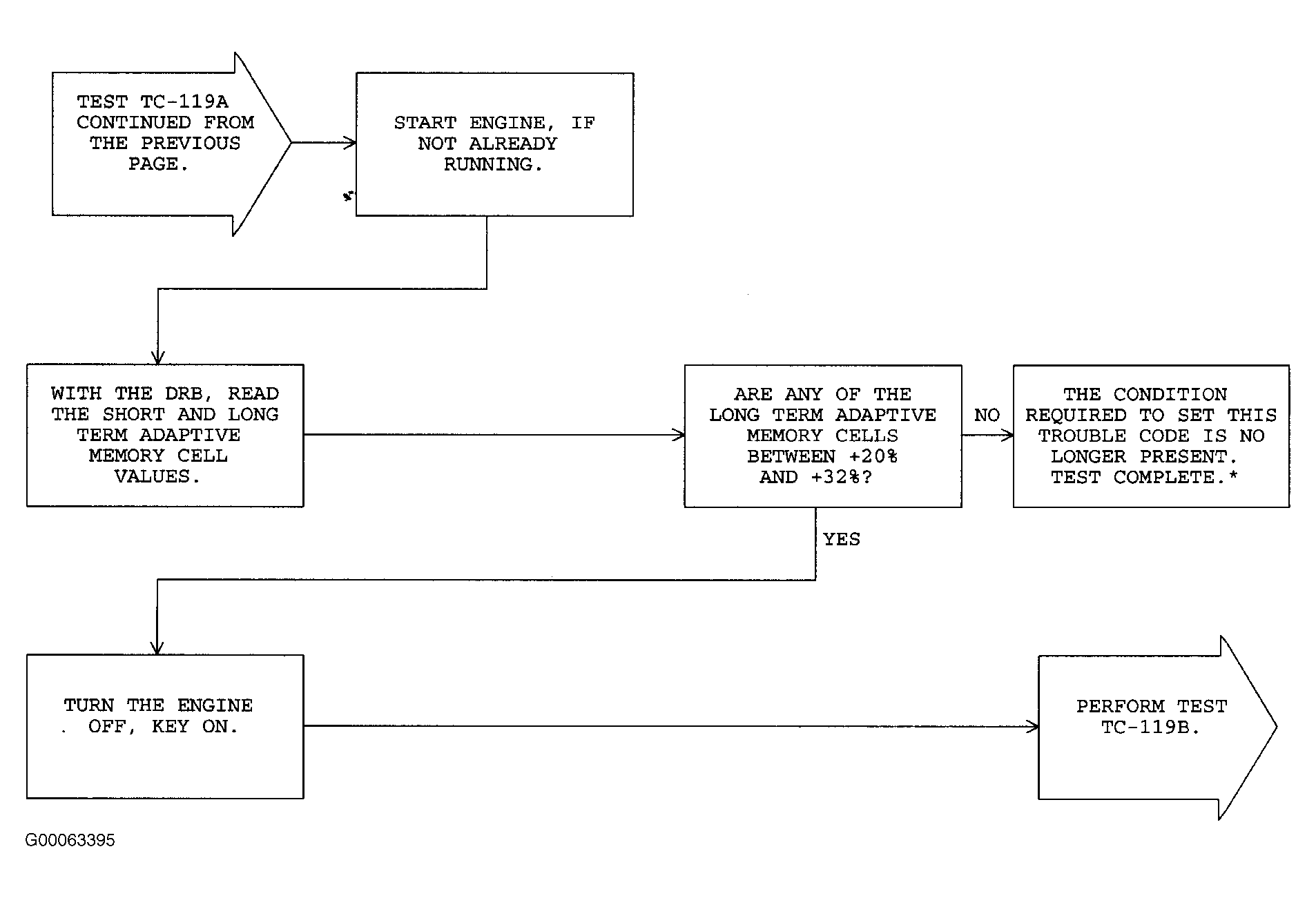

Fig 2: TC-119A: Fuel System 1/1 Lean (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: TC-119A: Fuel System 1/1 Lean (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
