Alignment Specifications

NOTE: All specifications are given in degrees. All wheel alignments are to be set with vehicle at its proper curb height.

NOTE: Curb height and design height specifications are the same on all models, including standard and ACR suspension option models.

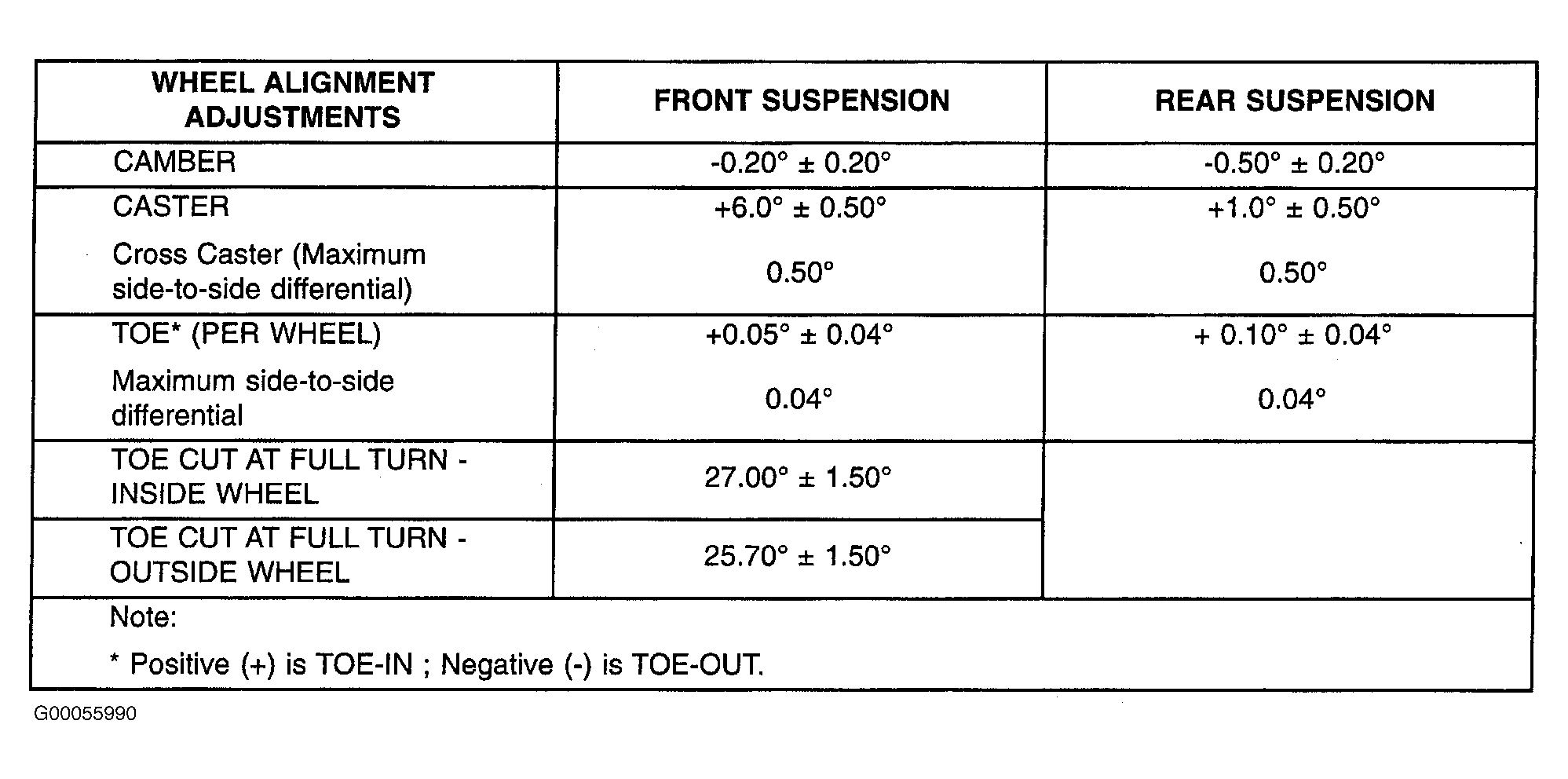

Fig 1: Wheel Alignment Specifications

Courtesy of CHRYSLER CORP.

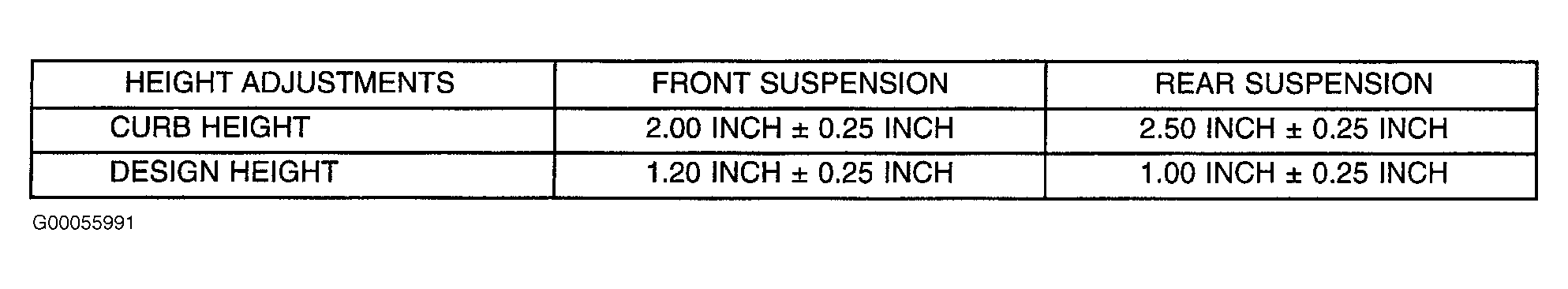

Fig 2: Curb & Height Design Specifications (Except 1996 RT/10)

Courtesy of CHRYSLER CORP.

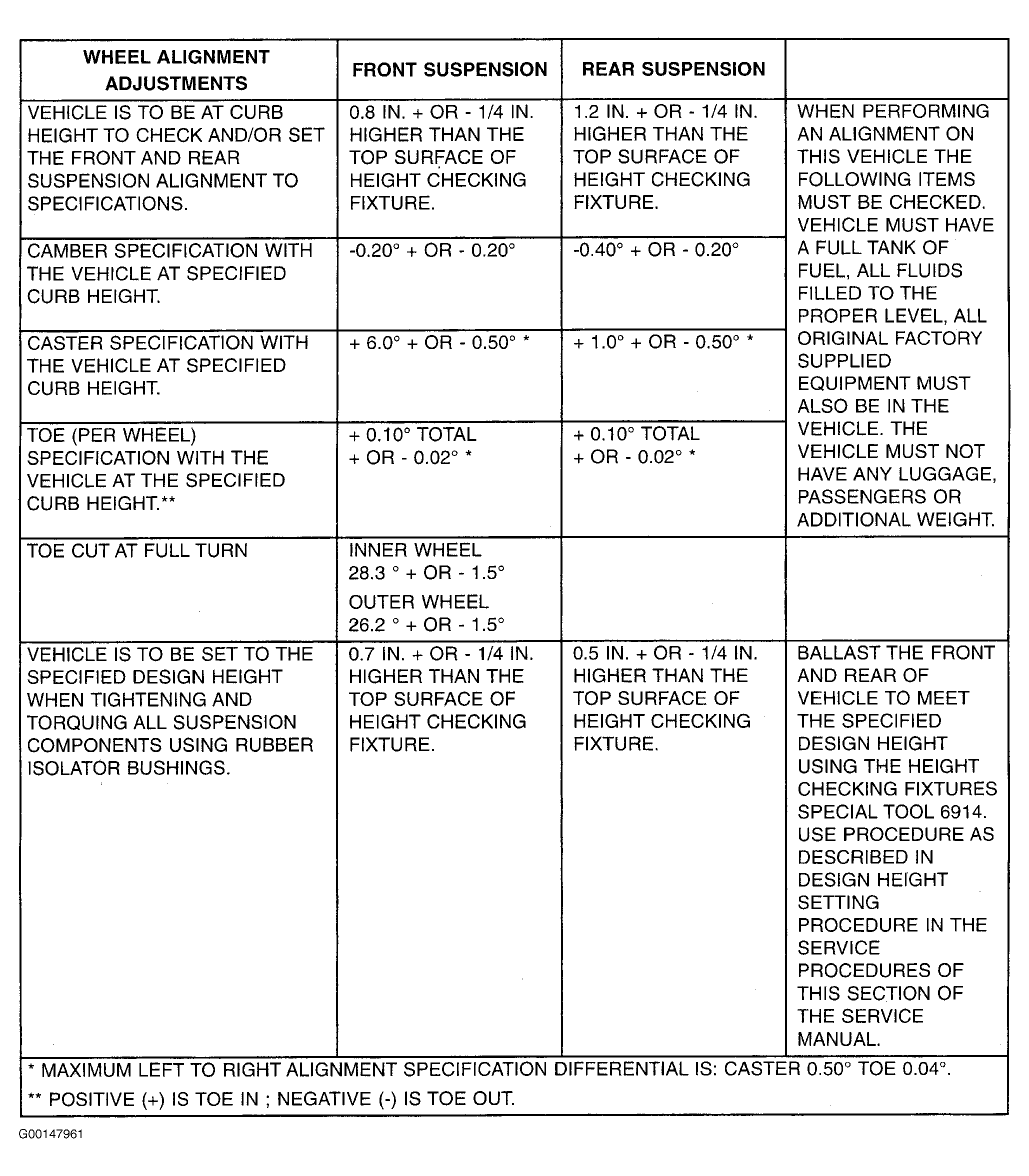

Fig 3: Curb & Design Height Specifications 1996 RT/10

Courtesy of CHRYSLER CORP.

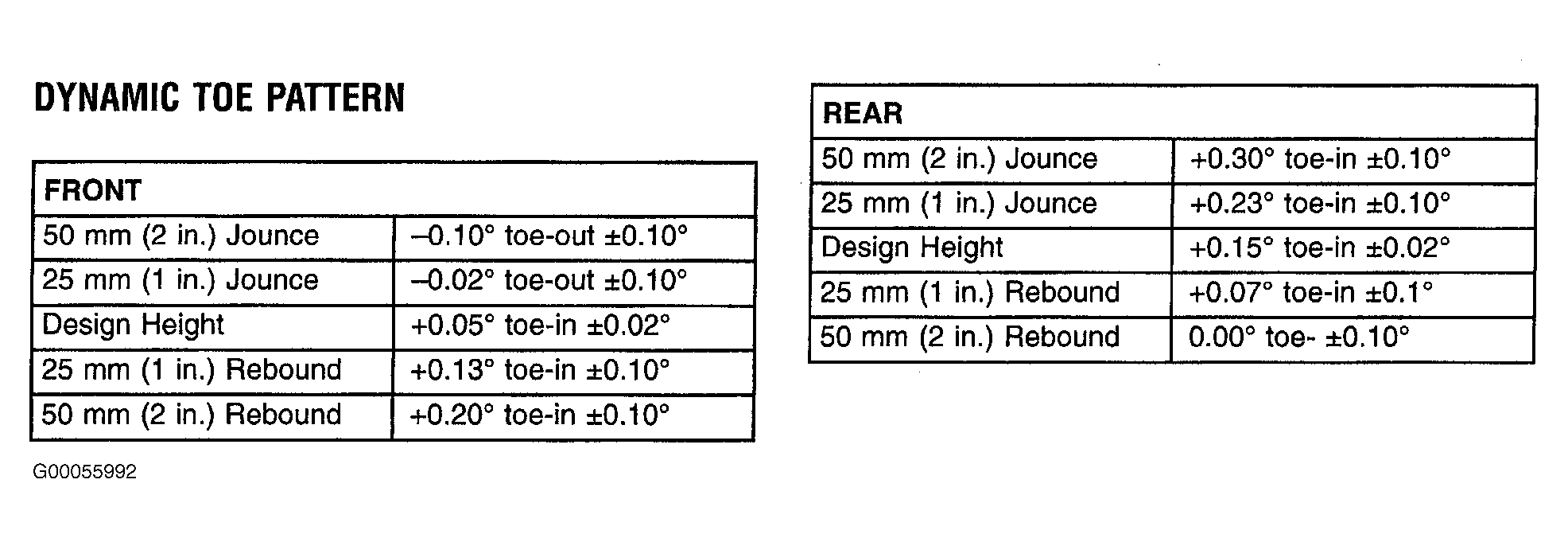

Fig 4: Dynamic Toe Pattern Specifications

Courtesy of CHRYSLER CORP.
