Transmission Assembly: Assembly

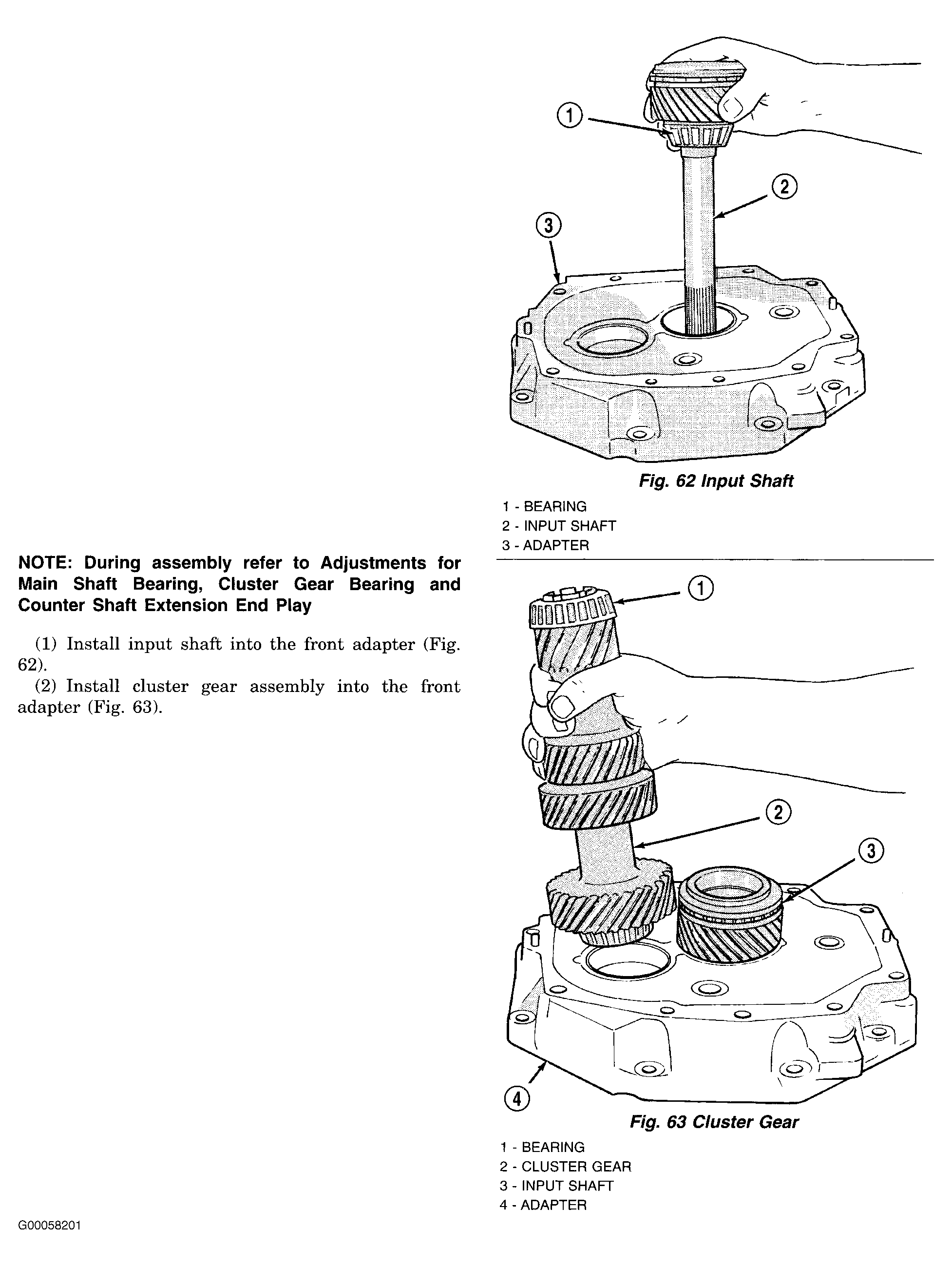

Fig 1: Transmission Assembly - Steps 1-2
G00058201Courtesy of DAIMLERCHRYSLER CORPORATION

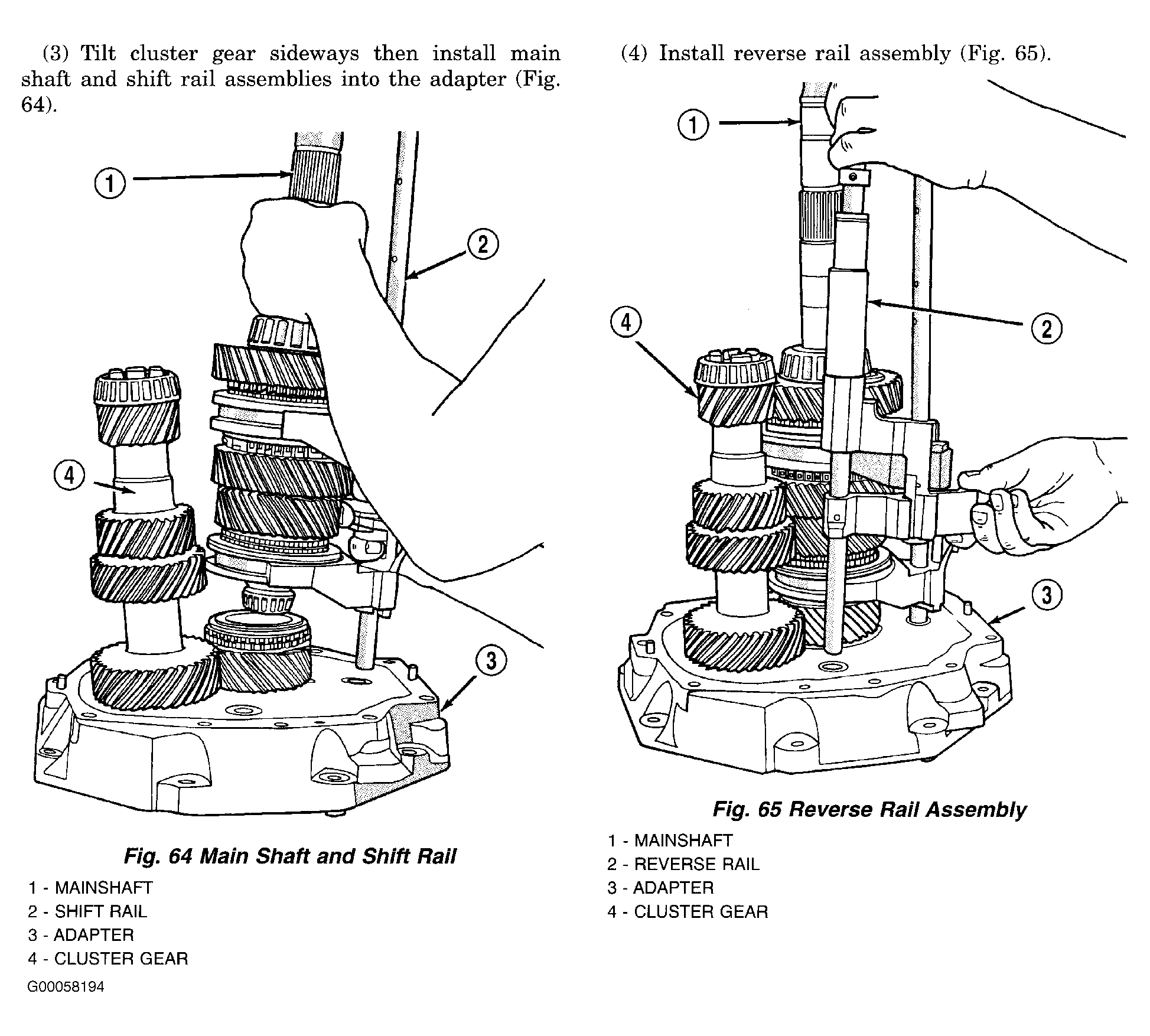

Fig 2: Transmission Assembly - Steps 3-4
G00058194Courtesy of DAIMLERCHRYSLER CORPORATION

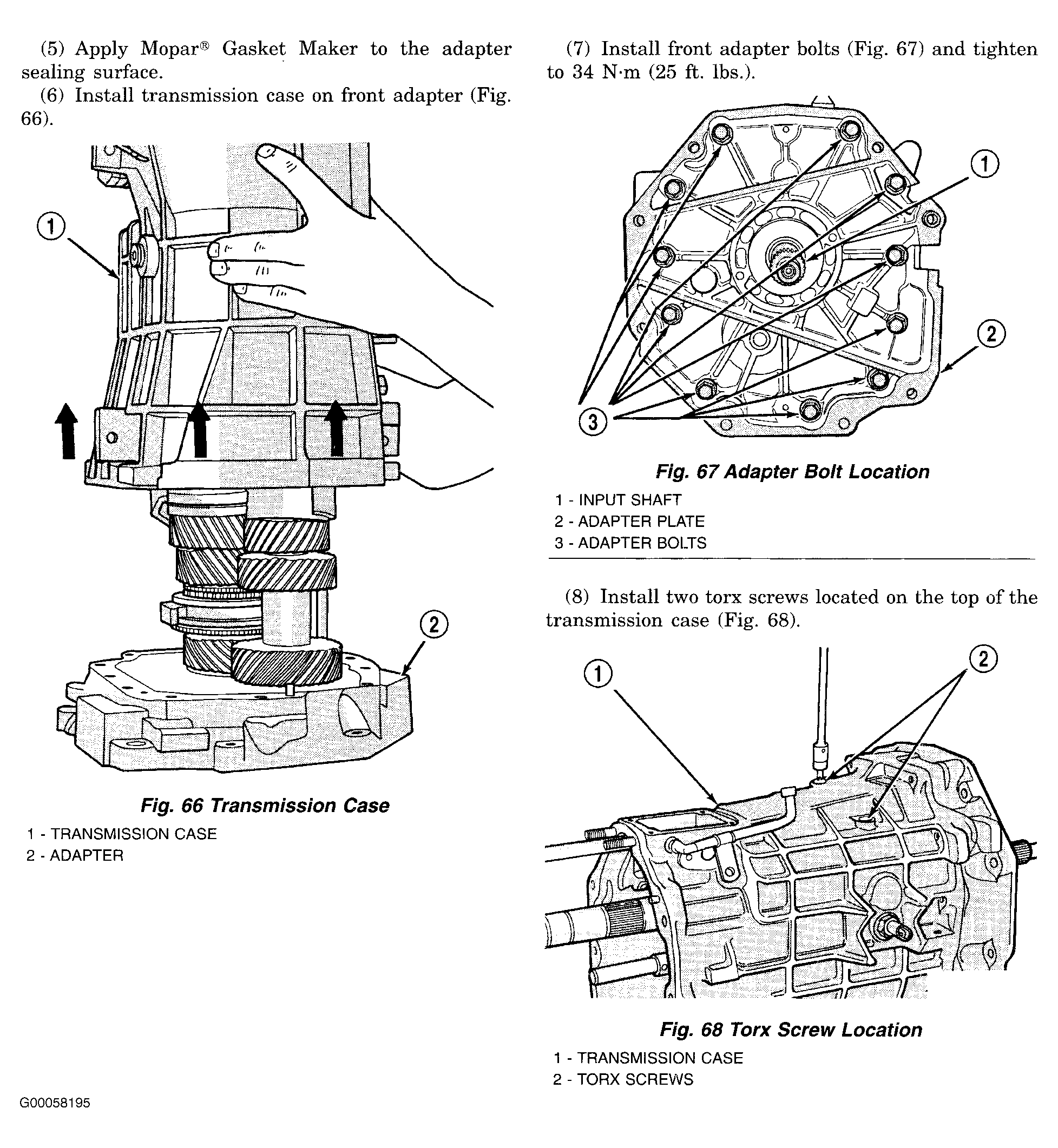

Fig 3: Transmission Assembly - Steps 5-8
G00058195Courtesy of DAIMLERCHRYSLER CORPORATION

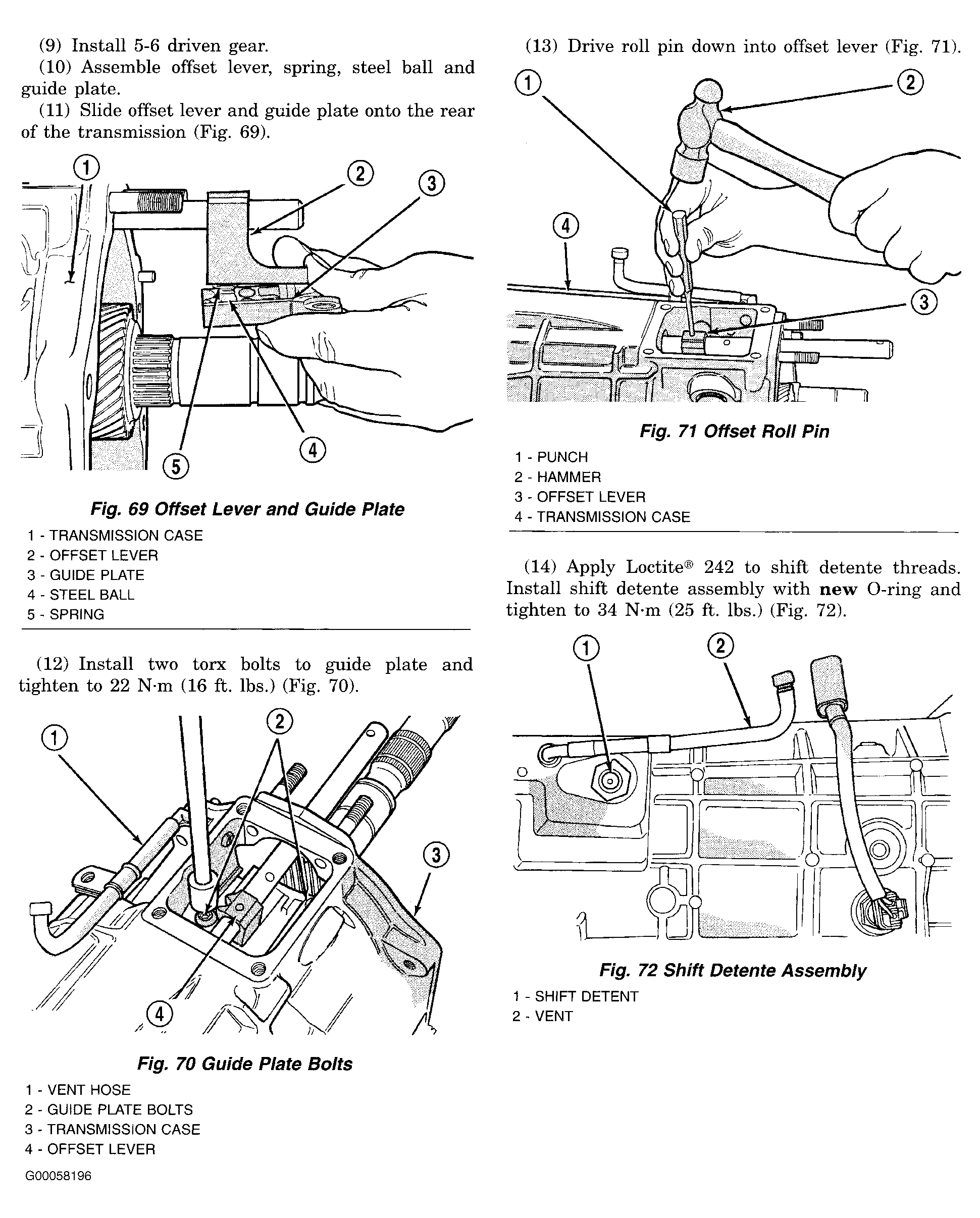

Fig 4: Transmission Assembly - Steps 9-14
G00058196Courtesy of DAIMLERCHRYSLER CORPORATION

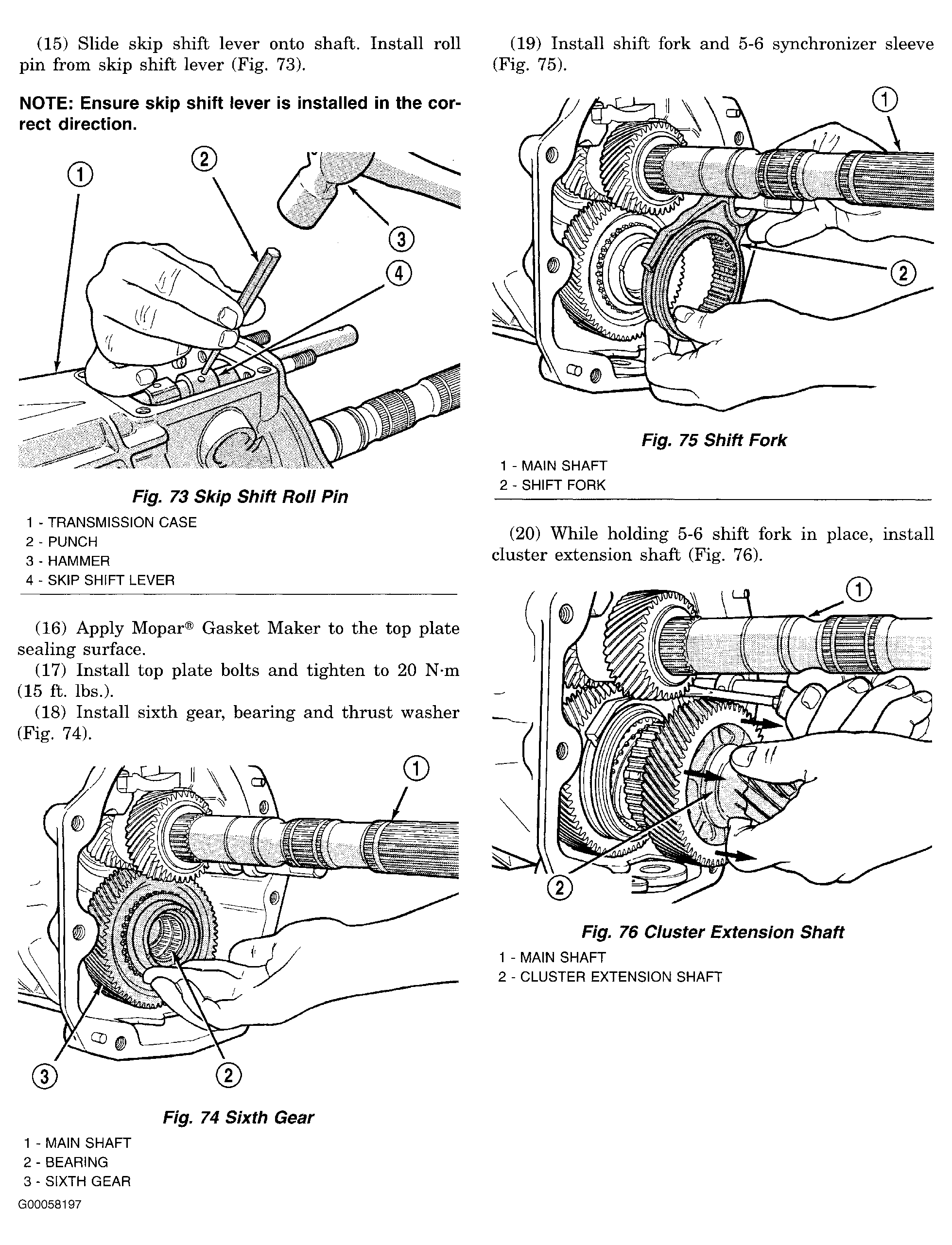

Fig 5: Transmission Assembly - Steps 15-20
G00058197Courtesy of DAIMLERCHRYSLER CORPORATION

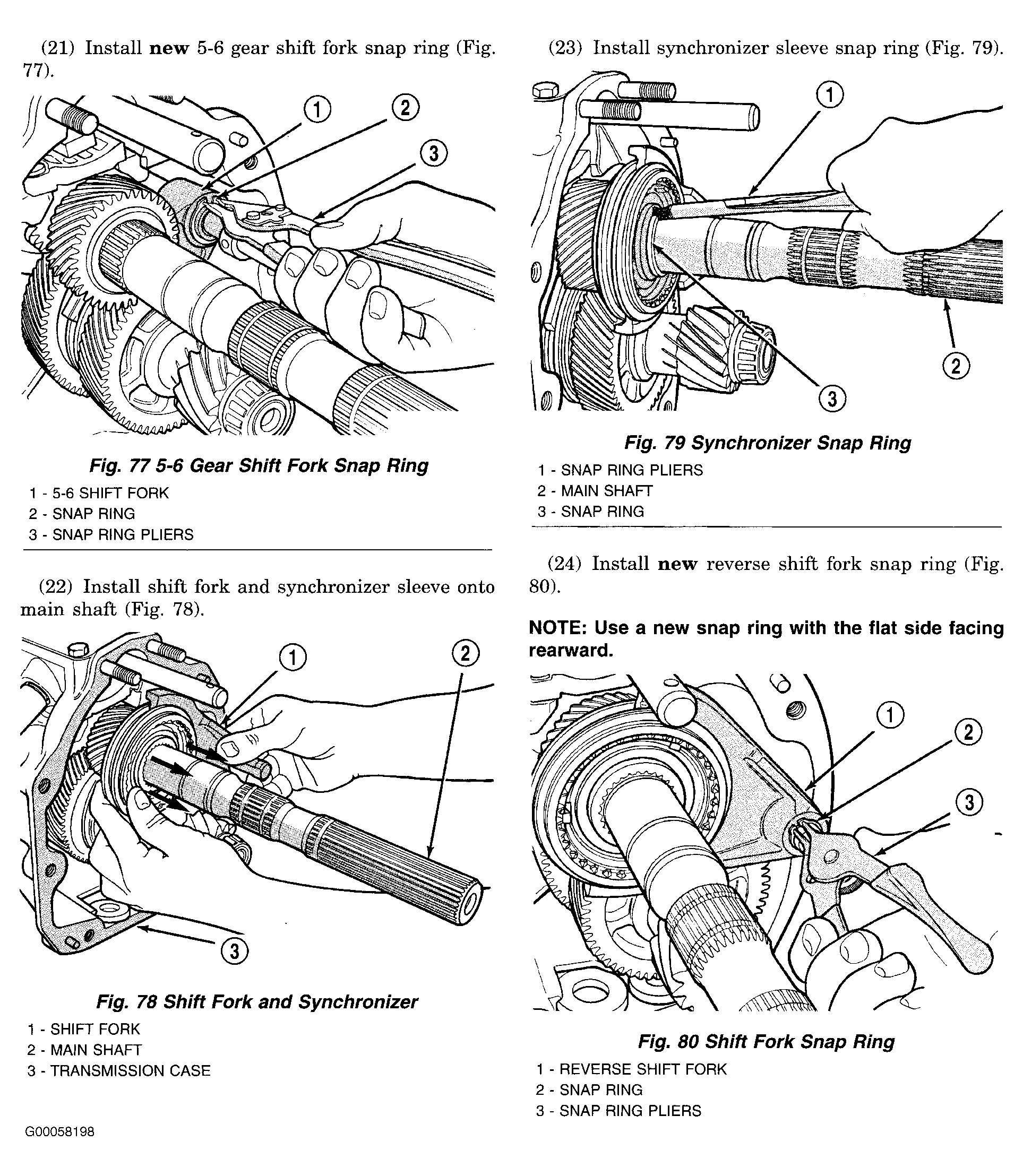

Fig 6: Transmission Assembly - Steps 21-24
G00058198Courtesy of DAIMLERCHRYSLER CORPORATION

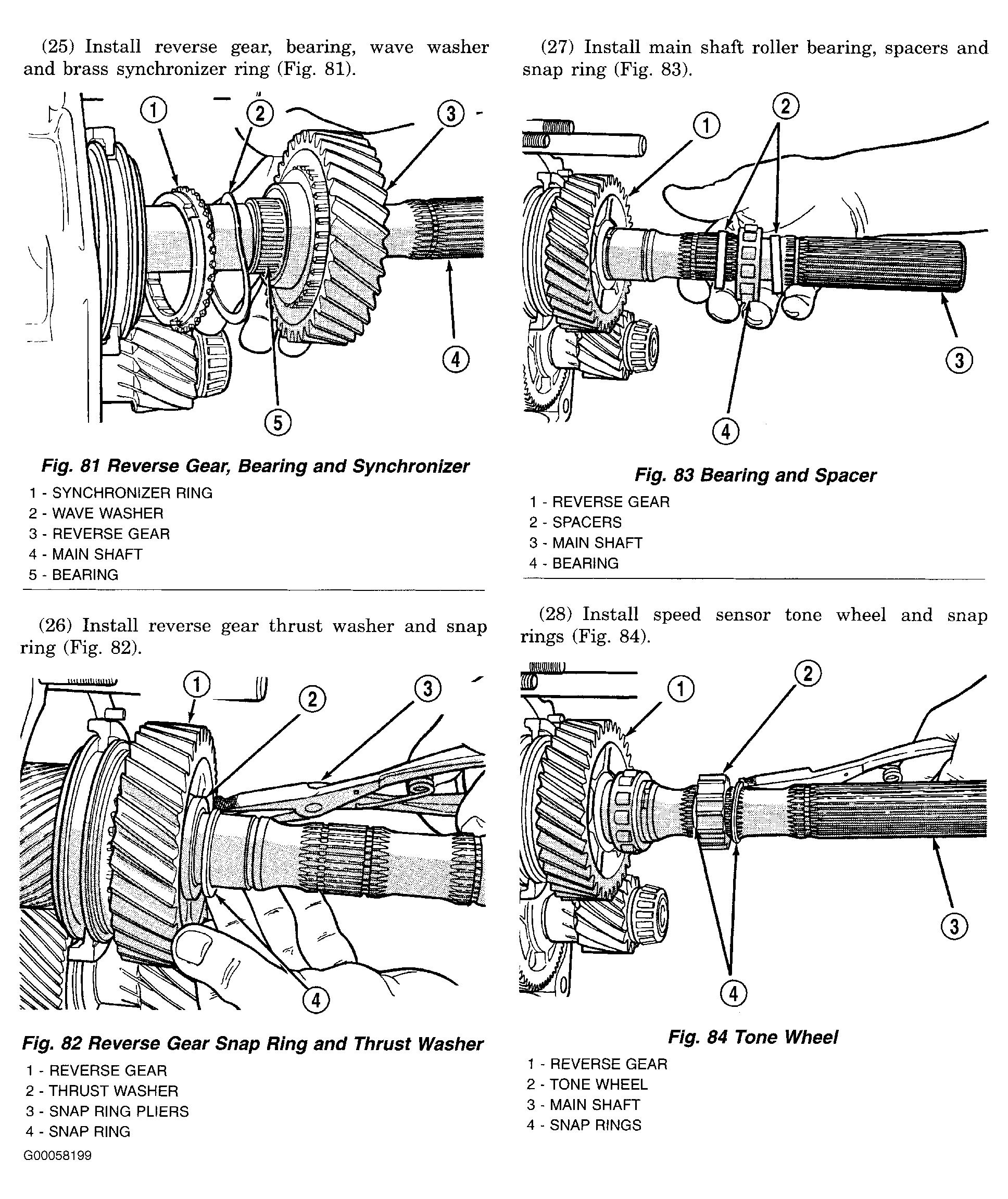

Fig 7: Transmission Assembly - Steps 25-28
G00058199Courtesy of DAIMLERCHRYSLER CORPORATION

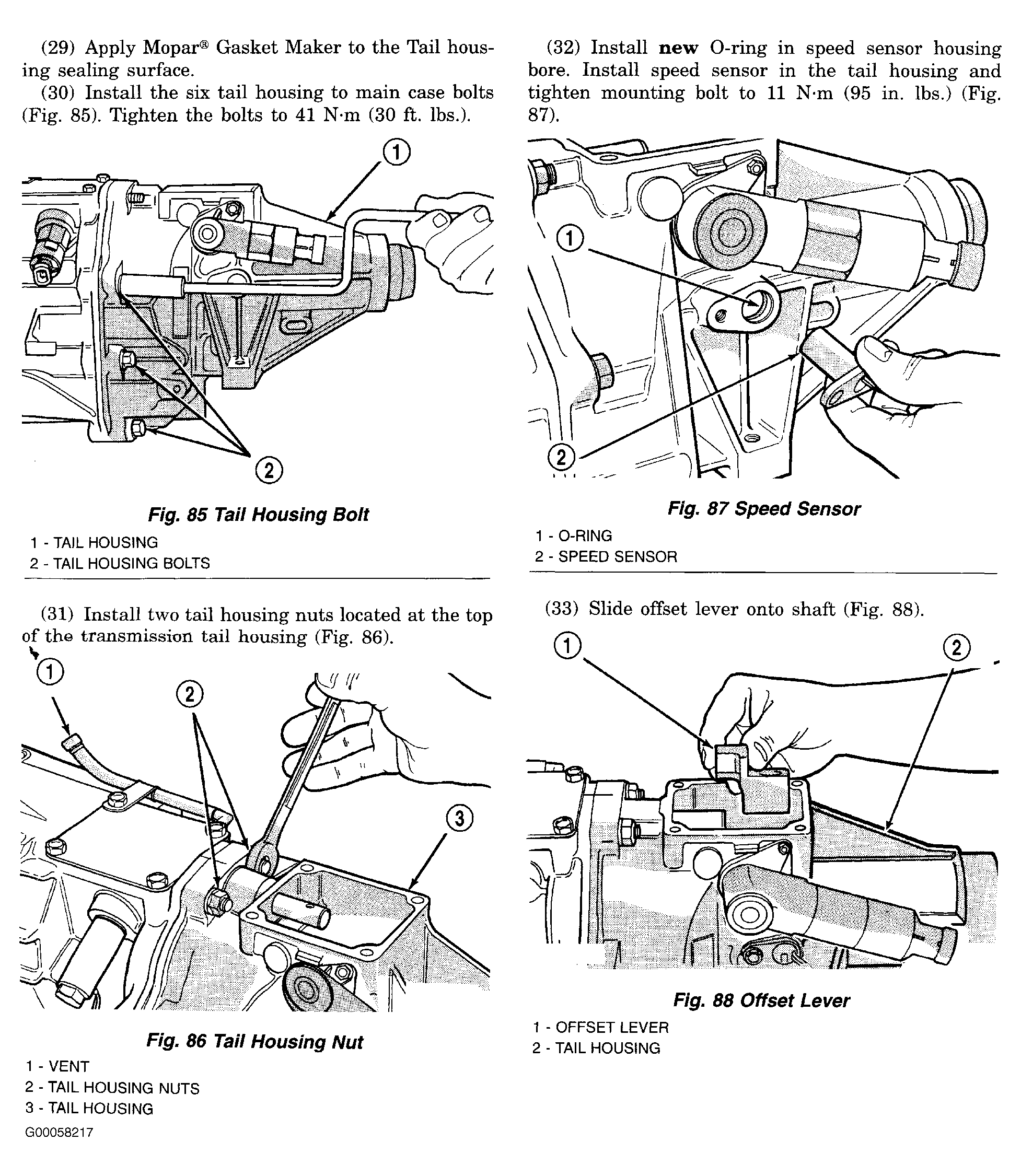

Fig 8: Transmission Assembly - Steps 29-33
G00058217Courtesy of DAIMLERCHRYSLER CORPORATION

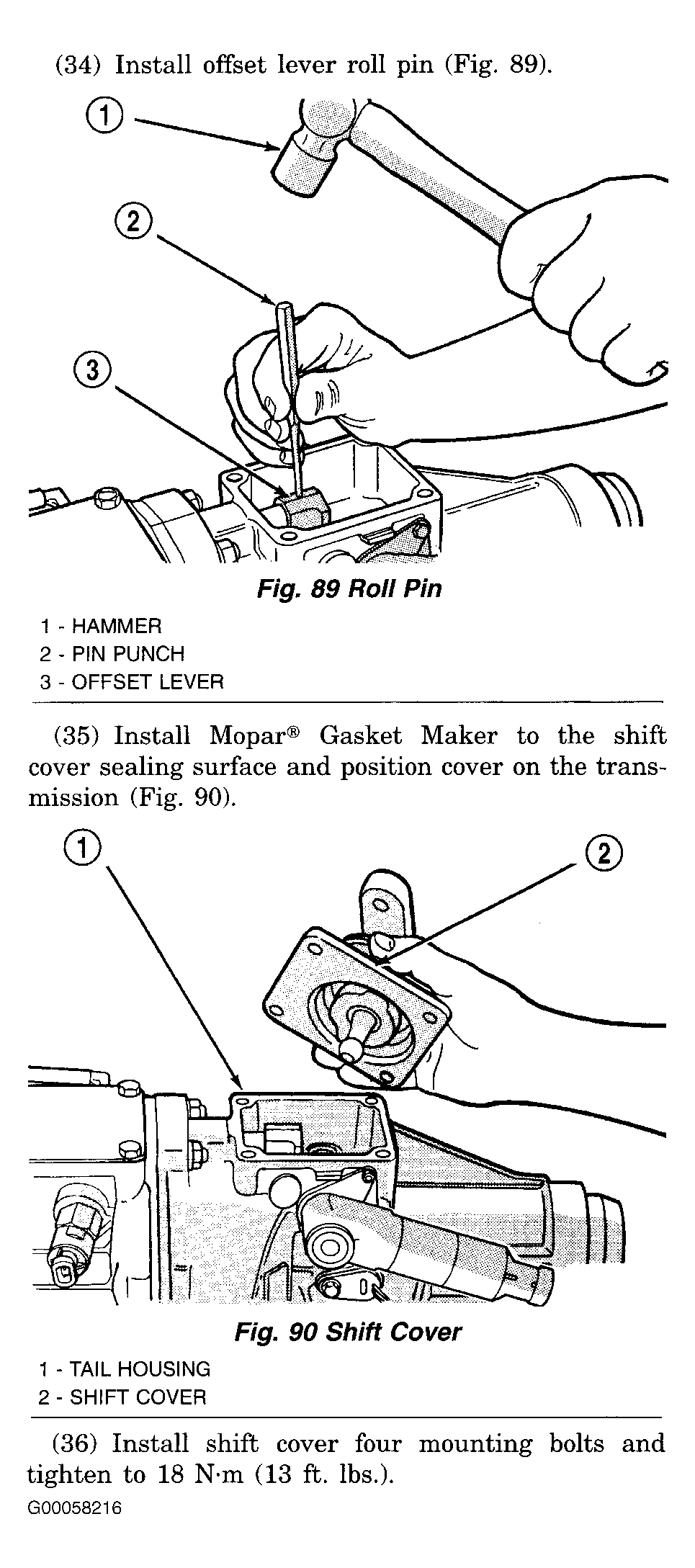

Fig 9: Transmission Assembly - Steps 34-36
G00058216Courtesy of DAIMLERCHRYSLER CORPORATION
