Removal & Installation
NOTE:

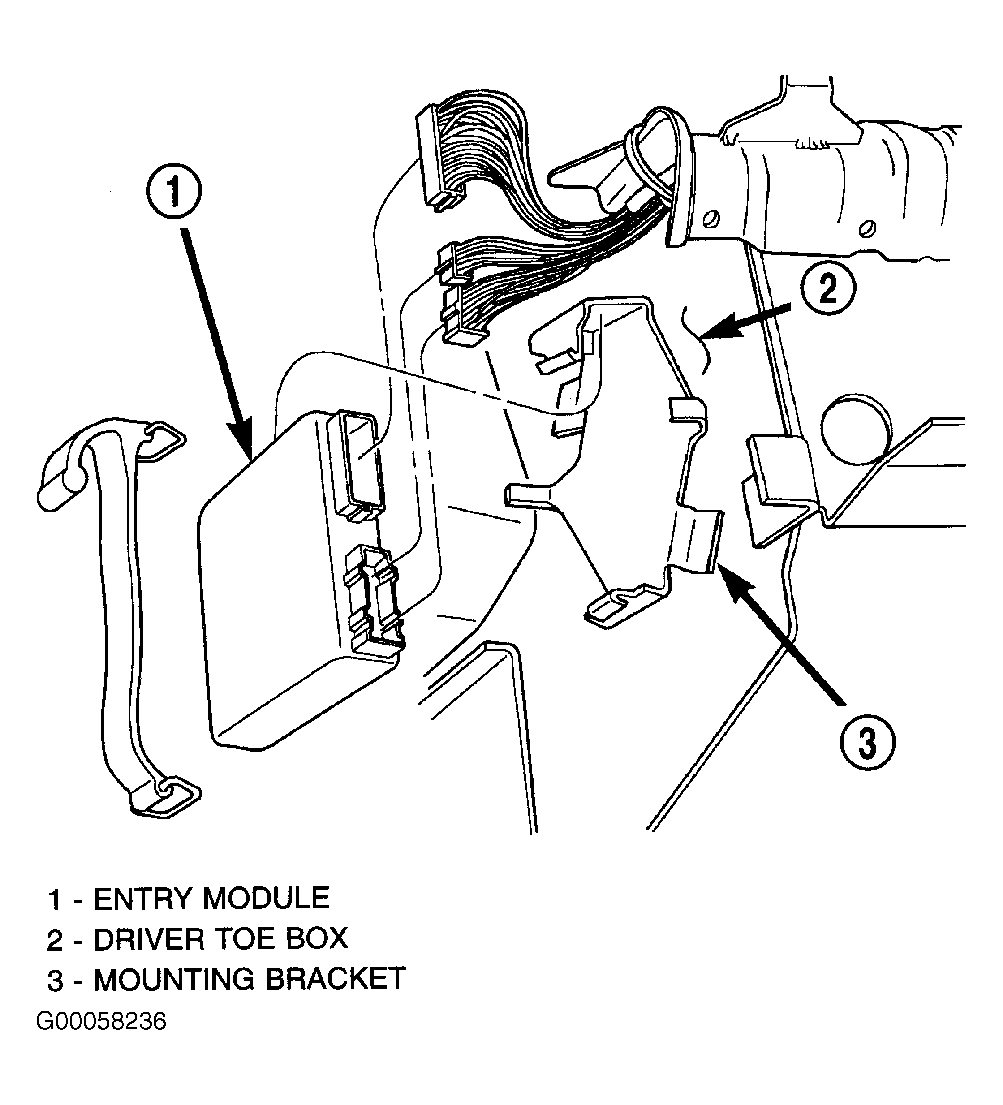

The entry module is located on driver's side of center floor tunnel underneath instrument panel. See Fig 1
.
- Disconnect battery jump start attachment. Remove left lower instrument panel cover. Remove knee blocker. Remove rubber retaining strap. Disconnect three wire connectors. Remove module from vehicle.
- Place module into mounting bracket. Connect three wire connectors. Install rubber retaining strap. Install knee blocker. Install left lower instrument panel cover. Connect battery jump start attachment.
